E268M7X.75
E268M7X.75
E268M7X.75

E268M7X.75

UGC DOR5975665
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$42.03 CAD - $42.03 CAD
$42.03 CAD
$42.03 CAD - $42.03 CAD
$42.03 CAD

Vendu en lots de : 1

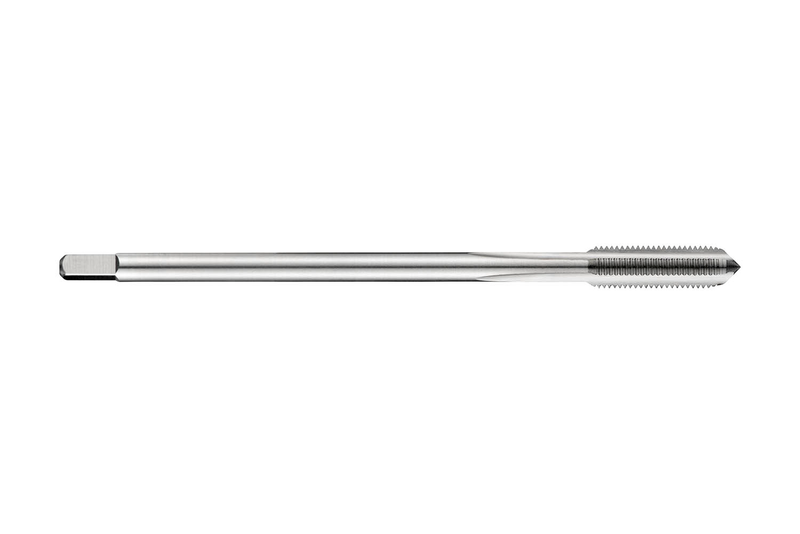

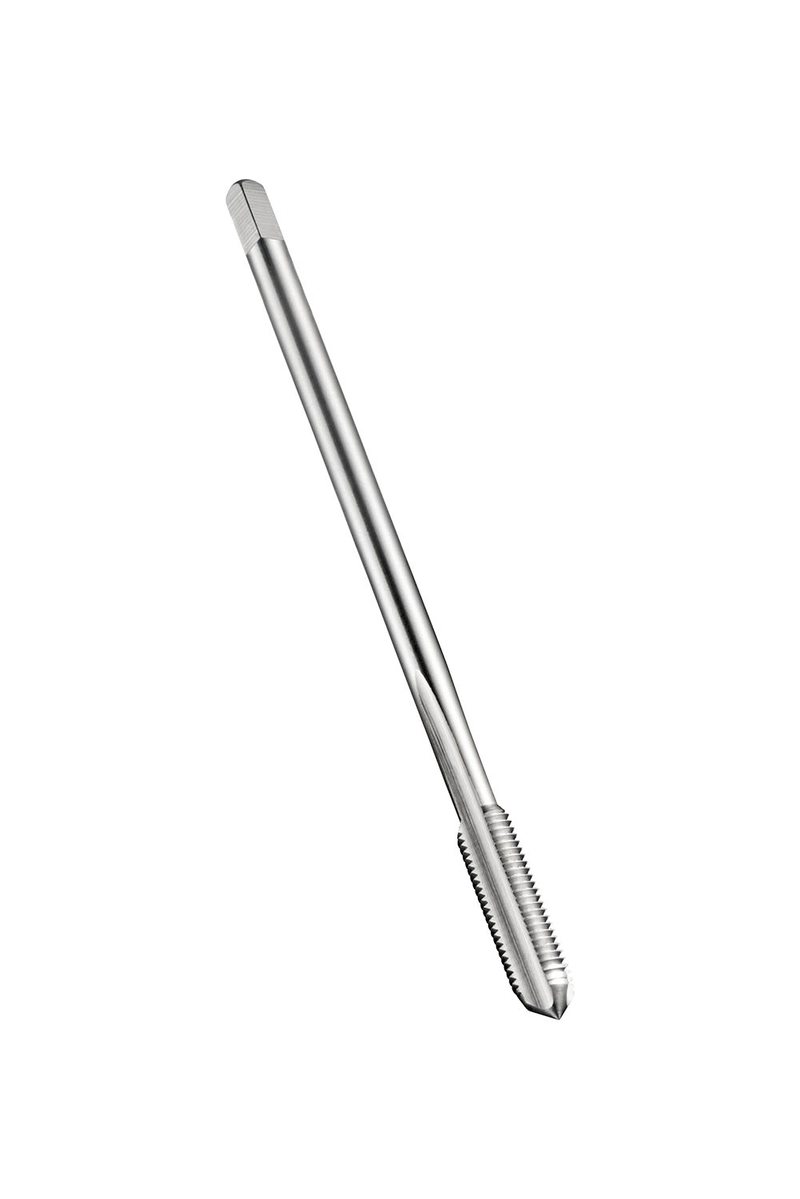

Taraud machine à coupe droite, entrée C, 2-3 filets, pour filet M7 ISO-métrique à pas fin de 0,75 mm et tolérance 6H, dimensions conformes à la norme DIN 374, queue de 5,5 mm et carré d'entraînement de 4,3 mm, en HSS-E fritté avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E268M7X.75
GradeLumineux
Product Number5975665
Product FamilyE268
Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.2165"
Connection Dia. — mm (DCON)5.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)7
Thread Form (THFT)MF - Pas fin (métrique)
Thread Pitch — mm (TP)0.75 mm
Thread Pitch — in (TP)0.0295"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number88968
EAN7320760088968
File Type Download
E268M7X.75 — Line Drawing PDF Download
