E268M8X1.0
E268M8X1.0
E268M8X1.0

E268M8X1.0

UGC DOR5975677
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.21 CAD - $33.21 CAD
$33.21 CAD
$33.21 CAD - $33.21 CAD
$33.21 CAD

Vendu en lots de : 1

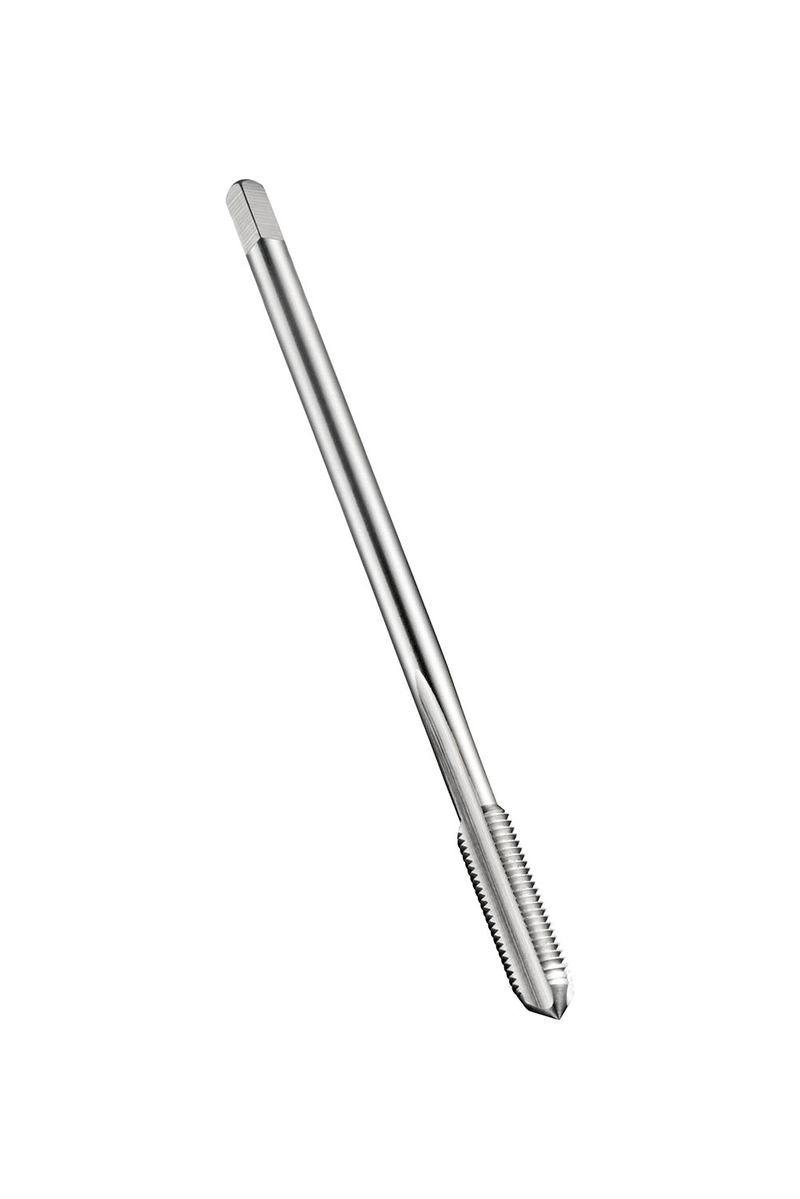

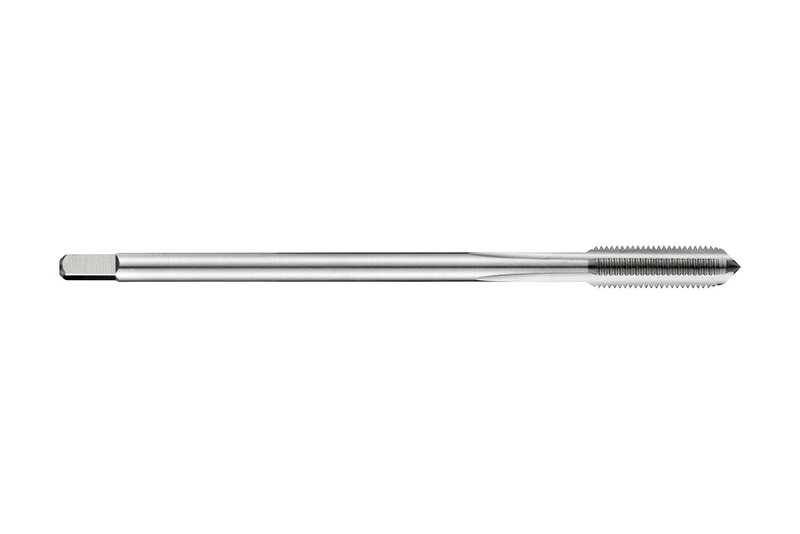

Taraud droit forme C avec entrée 2-3xP, pour filetage ISO-métrique fin M8 au pas de 1,00 mm et classe de tolérance 6H, dimensions selon la norme DIN 374 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en HSS-E PM avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI)E268M8X1.0
Product Name (ISO)E268M8X1,0
GradeLumineux
Product Number5975677
Product FamilyE268
Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)MF - Métrique fine
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankTige cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number88982
EAN7320760088982
File Type Download
E268M8X1.0 — Line Drawing PDF Download
