E200M5
E200M5
E200M5

E200M5

UGC DOR5975689
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.53 CAD - $22.53 CAD
$22.53 CAD
$22.53 CAD - $22.53 CAD
$22.53 CAD

Vendu en lots de : 1

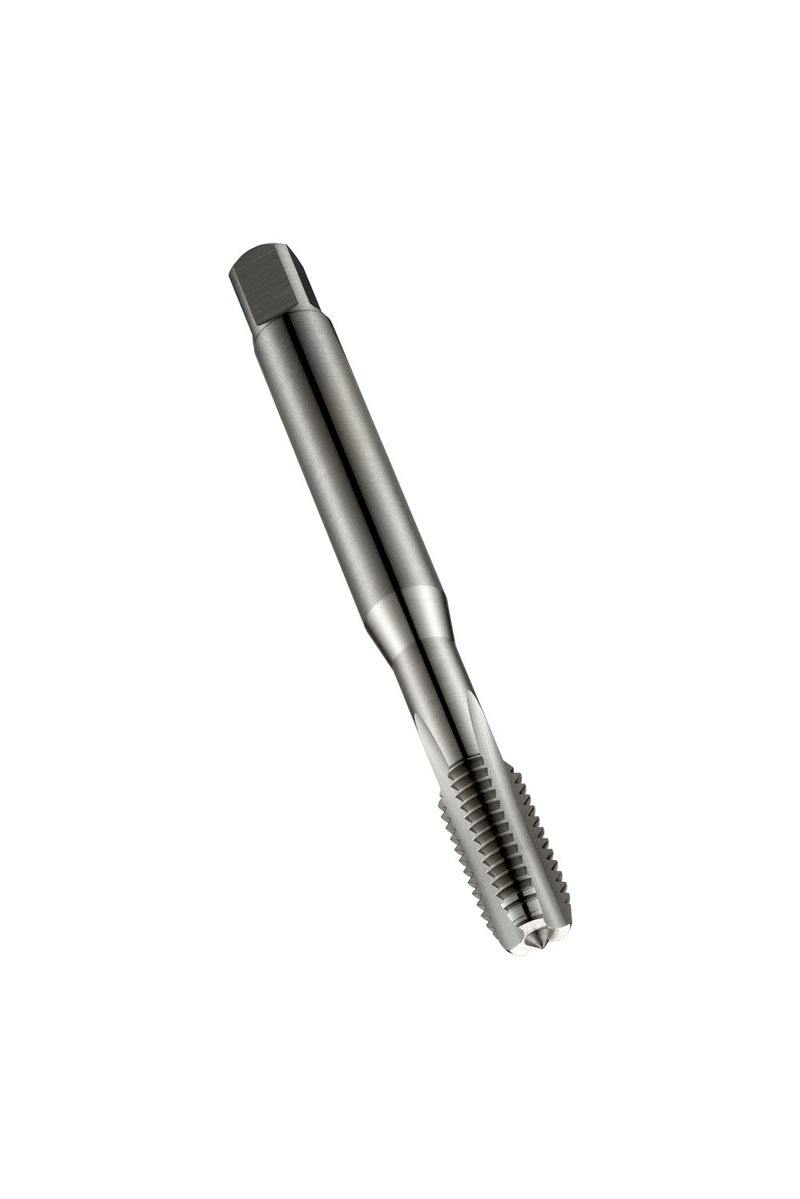

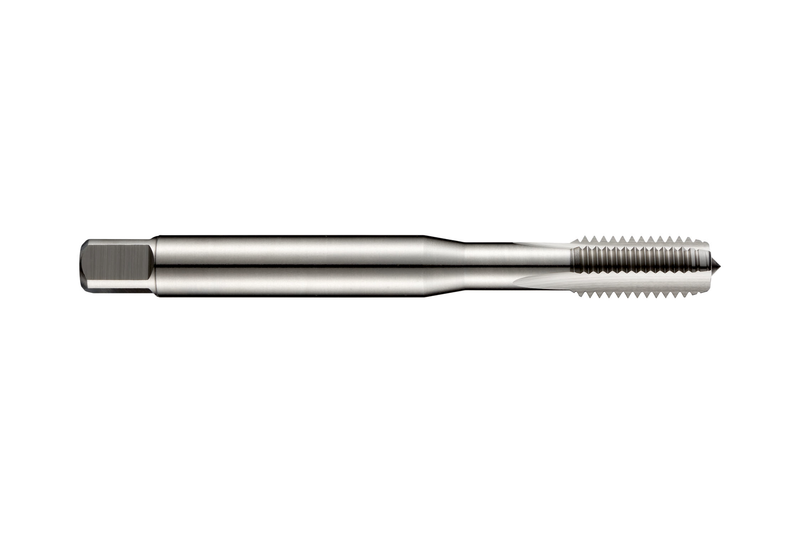

Taraud droit forme C avec entrée 2-3xP, pour filet métrique ISO M5 au pas de 0,80 mm et classe de tolérance 6H, dimensions selon norme DIN 371 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en HSS-E fritté finition brillante pour le filetage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E200M5
GradeLumineux
Product Number5975689
Product FamilyE200

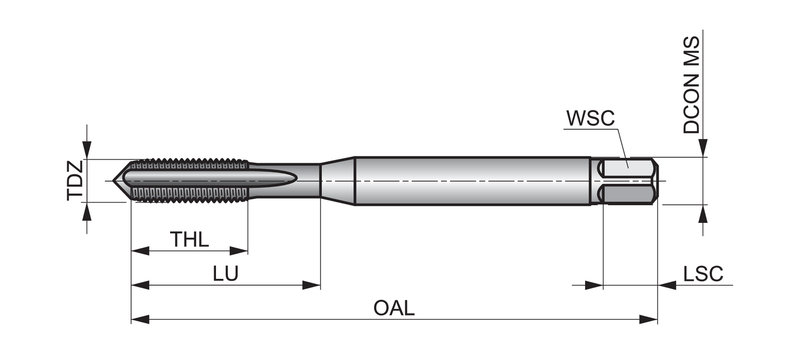

Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.9843"
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.8 mm
Thread Pitch — in (TP)0.0315"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number85141
EAN7320760085141
File Type Download
E200M5 — Line Drawing PDF Download
