E500M3X.6NO1
E500M3X.6NO1

E500M3X.6NO1

UGC DOR5975715
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.49 CAD - $26.49 CAD
$26.49 CAD
$26.49 CAD - $26.49 CAD
$26.49 CAD

Vendu en lots de : 1

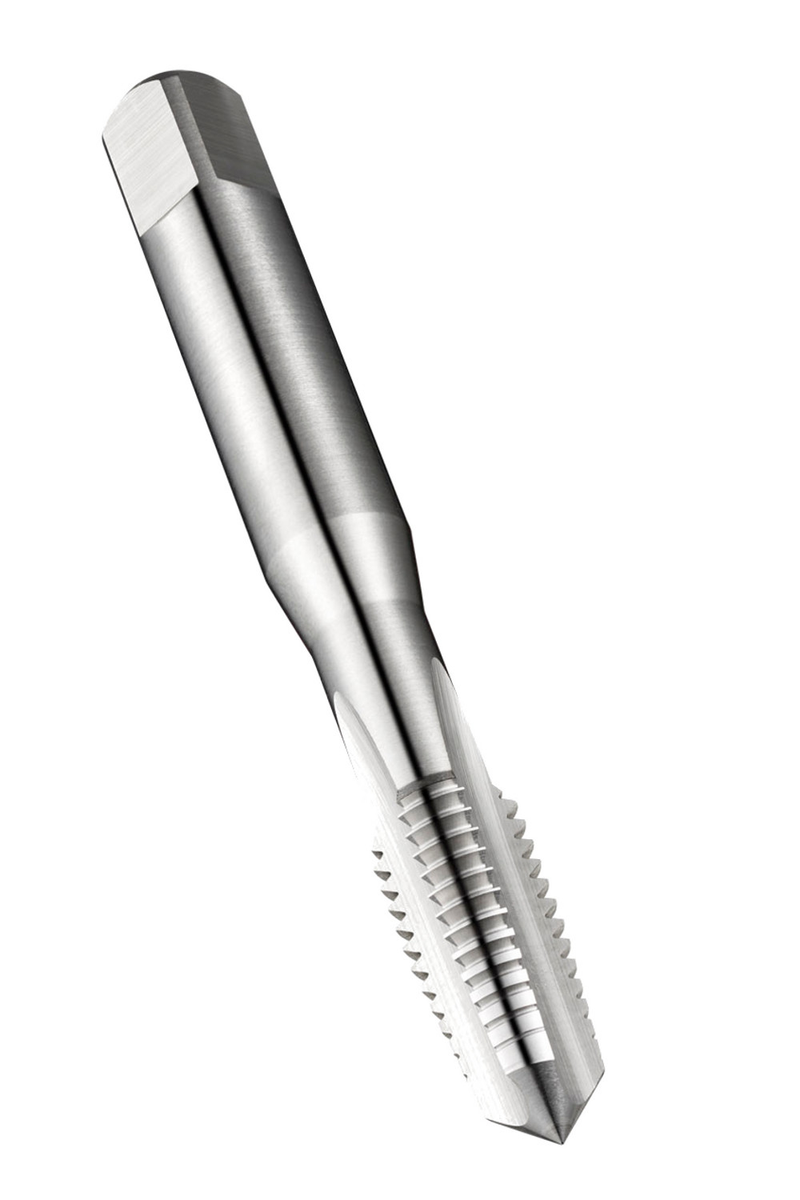

Taraud à main à coupe droite NO1 avec entrée conique 6-8xP, pour filetage ISO-métrique M3 au pas de 0,60 mm et classe de tolérance 6H, dimensions selon norme ISO 529 avec queue de 3,15 mm et carré d'entraînement de 2,5 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E500M3X.6NO1
GradeLumineux
Product Number5975715
Product FamilyE500
Dimensions
Overall Length — in (OAL)1.8898"
Overall Length — mm (OAL)48.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.4921"
Usable Length — mm (LU)12.5 mm
Connection Dia. — in (DCON)0.124"
Connection Dia. — mm (DCON)3.15 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)3
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.6 mm
Thread Pitch — in (TP)0.0236"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number159927
EAN7320760159927
File Type Download
E500M3X.6NO1 — Line Drawing PDF Download
