E207M2
E207M2
E207M2

E207M2

UGC DOR5975721
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.67 CAD - $35.67 CAD
$35.67 CAD
$35.67 CAD - $35.67 CAD
$35.67 CAD

Vendu en lots de : 1

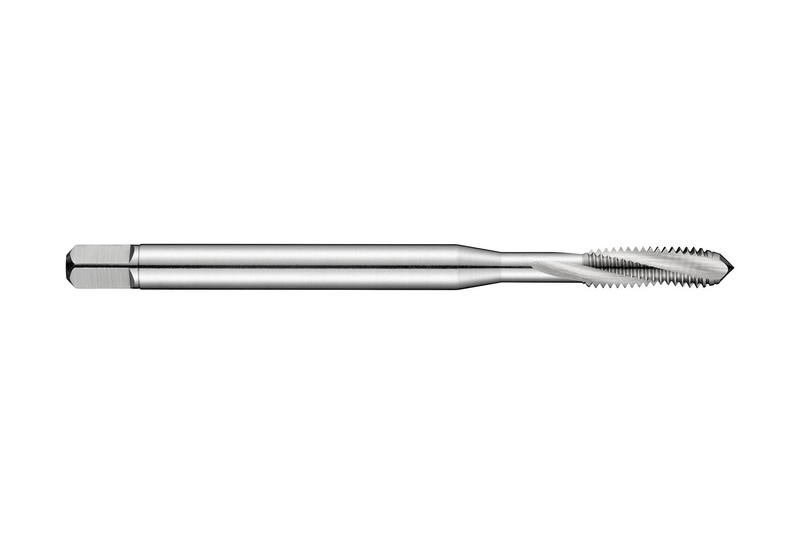

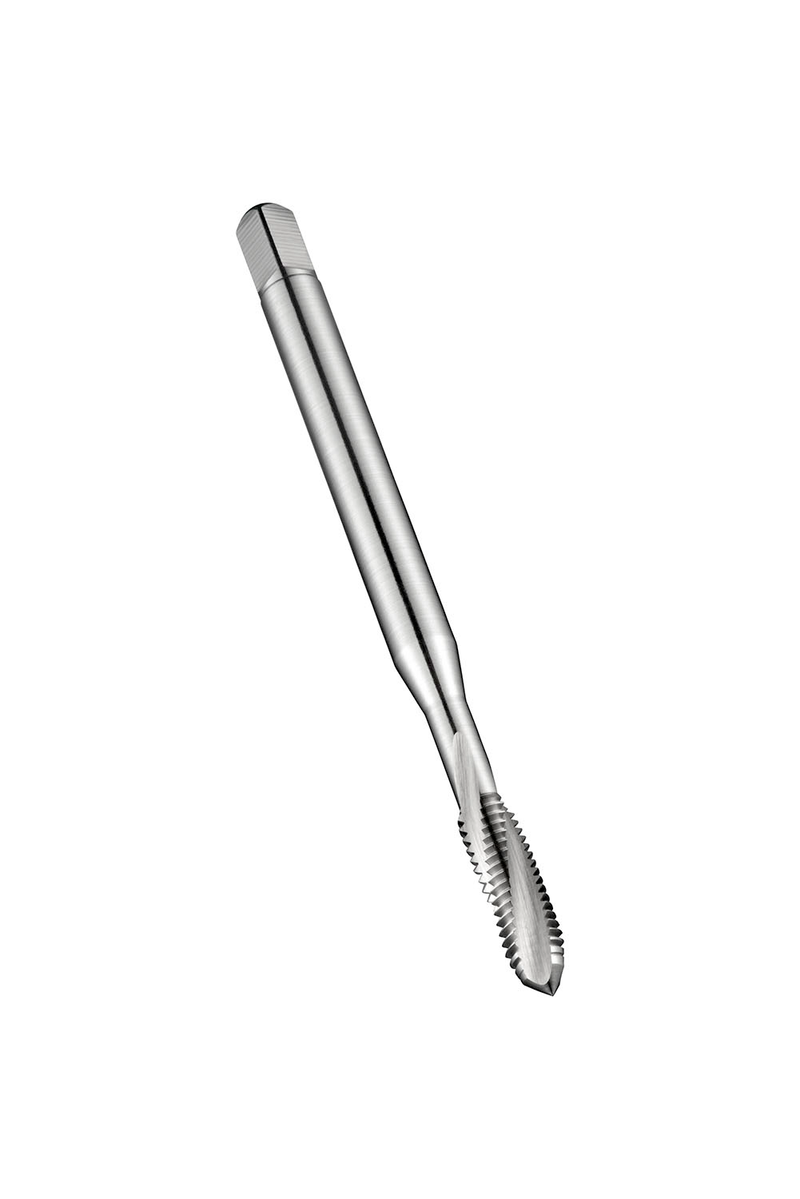

Taraud à gorge hélicoïdale avec chanfrein forme C et entrée progressive 2-3xP, pour filetage ISO-métrique M2 au pas de 0,40 mm et classe de tolérance 6H, dimensions selon la norme DIN 371 avec queue de 2,8 mm et carré d'entraînement de 2,1 mm, en HSS-E obtenu par métallurgie des poudres, finition brillante et angle d'hélice de 15° pour le taraudage de trous borgnes jusqu'à 1.5xD dans les aciers alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E207M2
GradeLumineux
Product Number5975721
Product FamilyE207

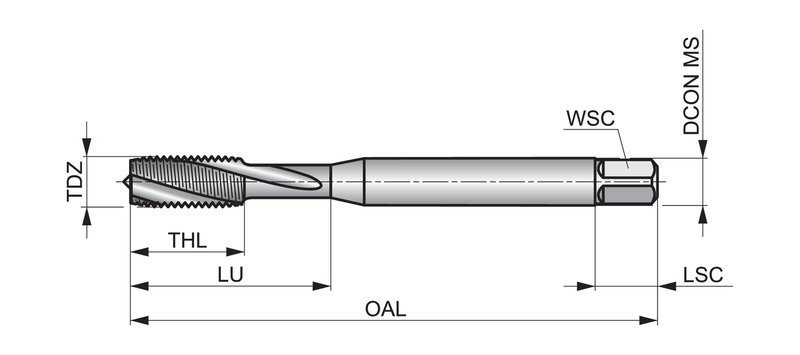

Dimensions
Overall Length — in (OAL)1.7717"
Overall Length — mm (OAL)45.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.3543"
Usable Length — mm (LU)9.0 mm
Connection Dia. — in (DCON)0.1102"
Connection Dia. — mm (DCON)2.8 mm
Number of Flutes (NOF)3
Helix Angle (FHA)15.0°
Threading
Thread Diameter Size (TDZ)2
Thread Form (THFT)M - Pas gros (métrique)
Thread Pitch — mm (TP)0.4 mm
Thread Pitch — in (TP)0.0157"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number85363
EAN7320760085363
File Type Download
E207M2 — Line Drawing PDF Download
