E207M3
E207M3
E207M3

E207M3

UGC DOR5975725
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.91 CAD - $25.91 CAD
$25.91 CAD
$25.91 CAD - $25.91 CAD
$25.91 CAD

Vendu en lots de : 1

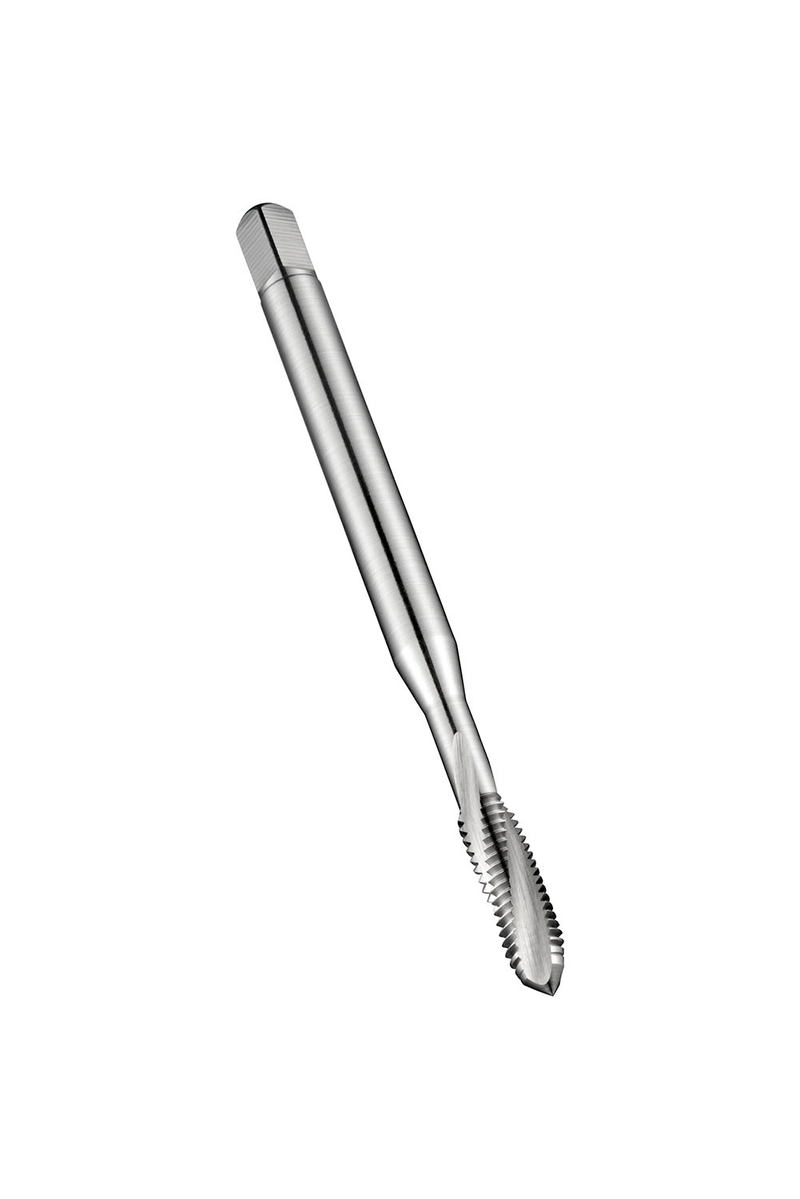

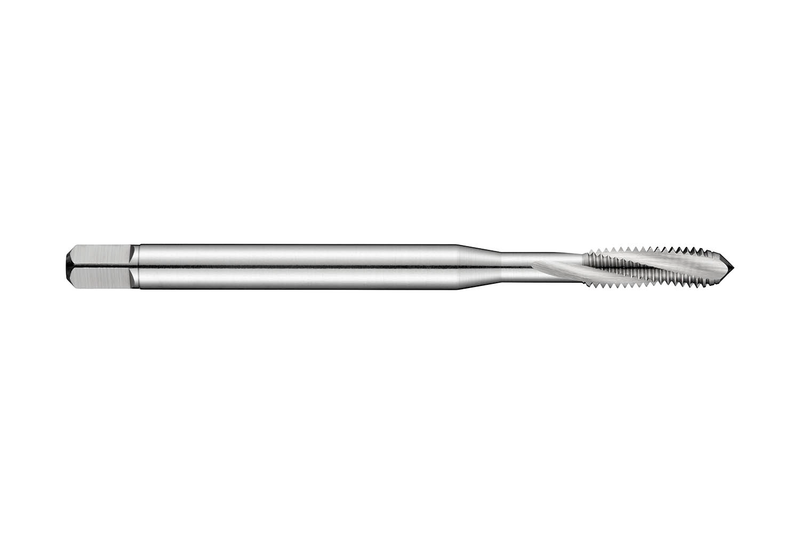

Taraud machine à goujures hélicoïdales coupe C à entrée courte (2-3 filets) pour filet métrique ISO M3 au pas de 0,50 mm et de classe de tolérance 6H, dimensions selon norme DIN 371 avec queue de 3,5 mm et carré d'entraînement de 2,7 mm, en HSS-E fritté finition brillante et angle d'hélice de 15° pour taraudage de trous borgnes jusqu'à 1,5xD dans les aciers alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E207M3
GradeLumineux
Product Number5975725
Product FamilyE207

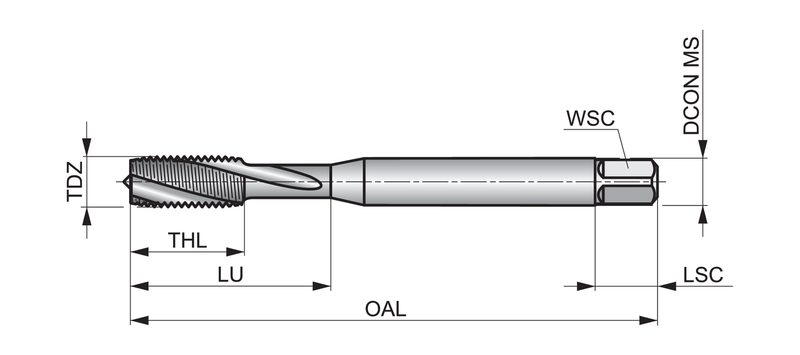

Dimensions
Overall Length — in (OAL)2.2047"
Overall Length — mm (OAL)56.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.7087"
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.1378"
Connection Dia. — mm (DCON)3.5 mm
Number of Flutes (NOF)3
Helix Angle (FHA)15.0°
Threading
Thread Diameter Size (TDZ)3
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.5 mm
Thread Pitch — in (TP)0.0197"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number85387
EAN7320760085387
File Type Download
E207M3 — Line Drawing PDF Download
