UGC DOR5975729
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.23 CAD - $26.23 CAD
$26.23 CAD
$26.23 CAD - $26.23 CAD
$26.23 CAD

Vendu en lots de : 1

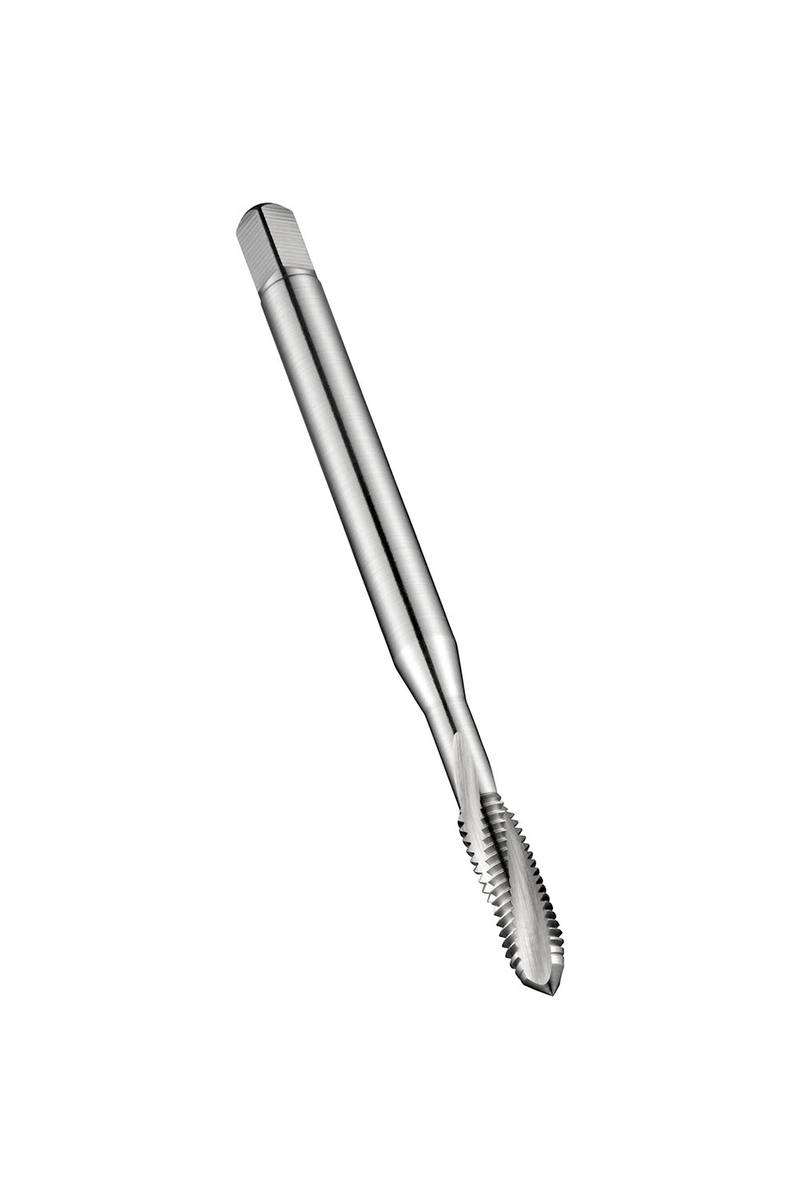

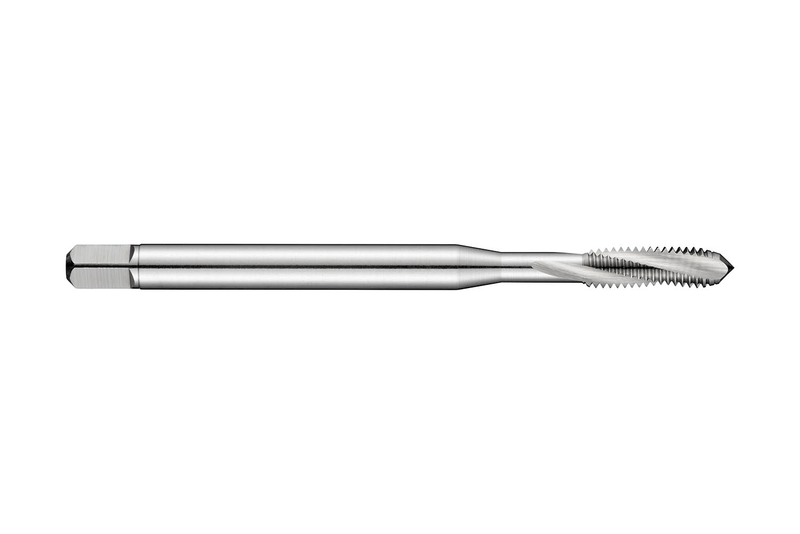

Taraud à gorge hélicoïdale avec goujure type C avec entrée de 2 à 3 filets, pour filet métrique ISO M4 au pas de 0,70 mm et de classe de tolérance 6H, dimensions conformes à la norme DIN 371 avec queue de 4,5 mm et carré d'entraînement de 3,4 mm, en HSS-E PM avec finition brillante et angle d'hélice de 15° pour le taraudage de trous borgnes jusqu'à 1,5xD dans les aciers alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E207M4
GradeLumineux
Product Number5975729
Product FamilyE207

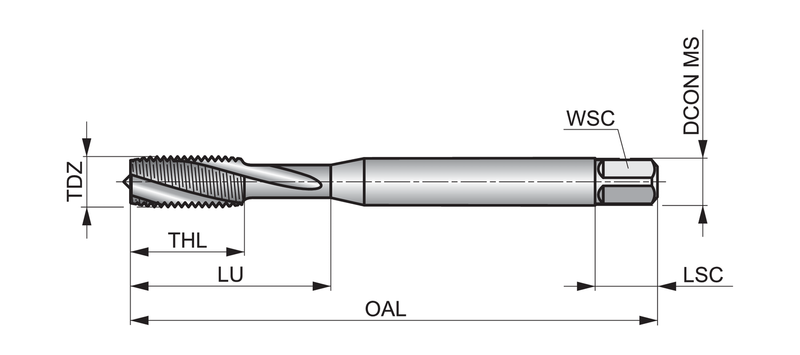

Dimensions
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.8268"
Usable Length — mm (LU)21.0 mm
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)3
Helix Angle (FHA)15.0°
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.0276"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number85400
EAN7320760085400
File Type Download
E207M4 — Line Drawing PDF Download
