UGC DOR5975731
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.84 CAD - $27.84 CAD
$27.84 CAD
$27.84 CAD - $27.84 CAD
$27.84 CAD

Vendu en lots de : 1

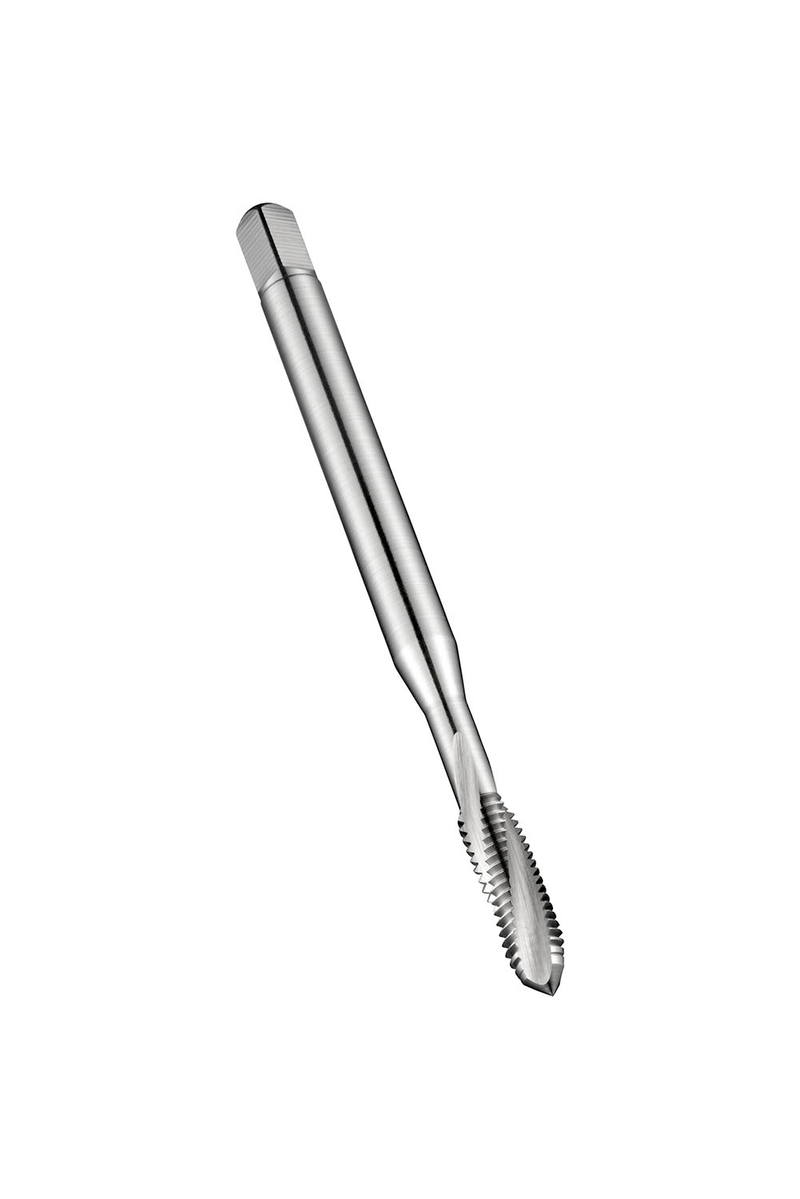

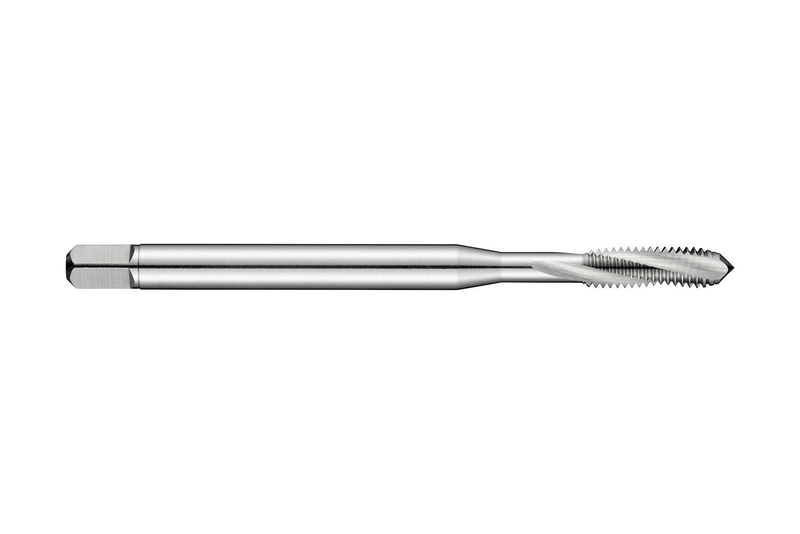

Taraud machine à goujures hélicoïdales et chanfrein forme C, avec entrée de 2-3 filets, pour filetage ISO-Métrique M5 au pas de 0,80 mm et classe de tolérance 6H, dimensions selon la norme DIN 371 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en HSS-E fritté finition brillante et angle d'hélice de 15° pour taraudage de trous borgnes jusqu'à 1,5xD dans les aciers alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E207M5
GradeLumineux
Product Number5975731
Product FamilyE207

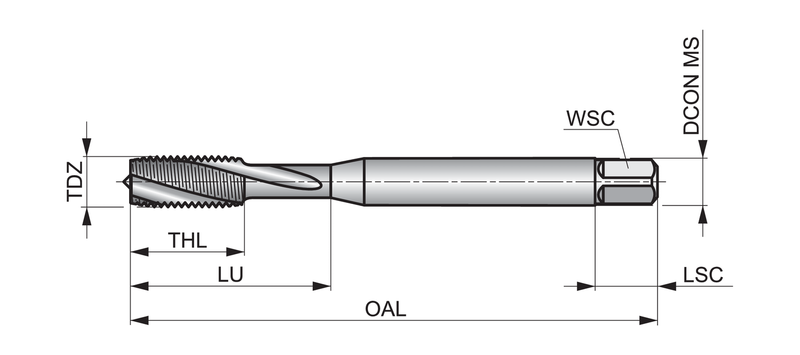

Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.9843"
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)15.0°
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.8 mm
Thread Pitch — in (TP)0.0315"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number85417
EAN7320760085417
File Type Download
E207M5 — Line Drawing PDF Download
