UGC DOR5975737
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.86 CAD - $31.86 CAD
$31.86 CAD
$31.86 CAD - $31.86 CAD
$31.86 CAD

Vendu en lots de : 1

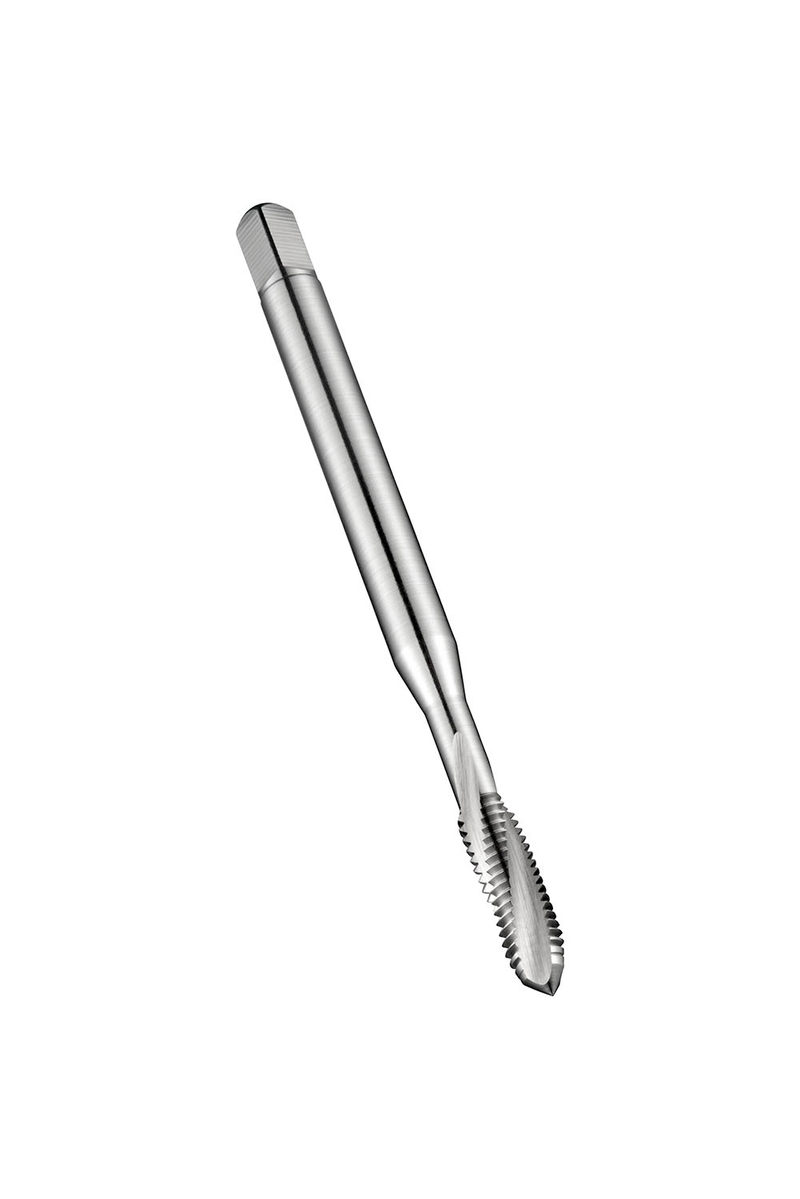

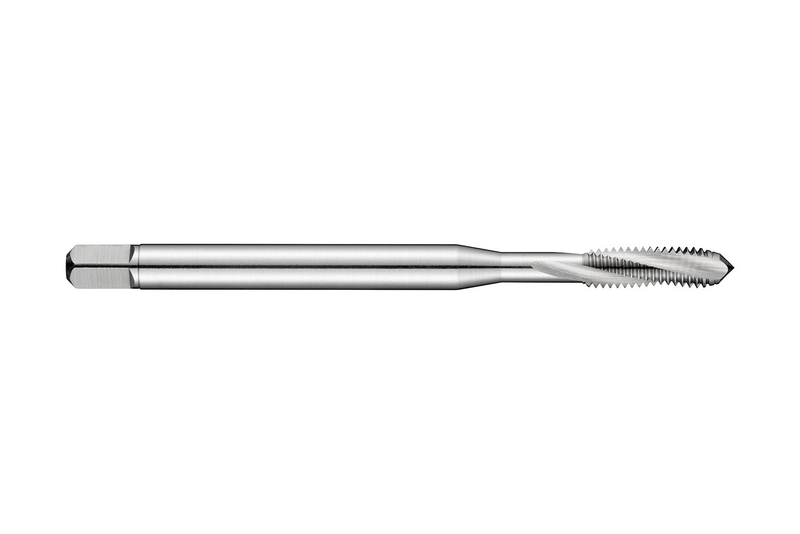

Taraud machine à goujures hélicoïdales avec chanfrein forme C à entrée 2-3xP, pour filetage métrique ISO M8 au pas de 1,25 mm et classe de tolérance 6H, dimensions selon la norme DIN 371 avec queue de 8,0 mm et carré d'entraînement de 6,2 mm, en HSS-E métallurgie des poudres avec finition brillante et angle d'hélice de 15° pour filetage de trous borgnes jusqu'à 1,5xD dans l'acier allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E207M8
GradeLumineux
Product Number5975737
Product FamilyE207

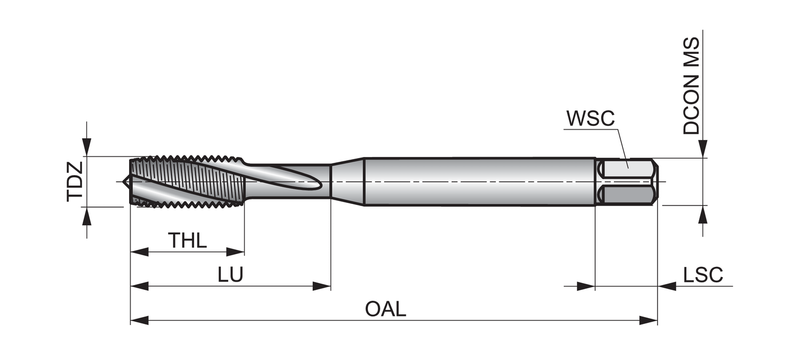

Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.378"
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)15.0°
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number85448
EAN7320760085448
File Type Download
E207M8 — Line Drawing PDF Download
