E250M16
E250M16
E250M16

E250M16

UGC DOR5975747
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.89 CAD - $57.89 CAD
$57.89 CAD
$57.89 CAD - $57.89 CAD
$57.89 CAD

Vendu en lots de : 1

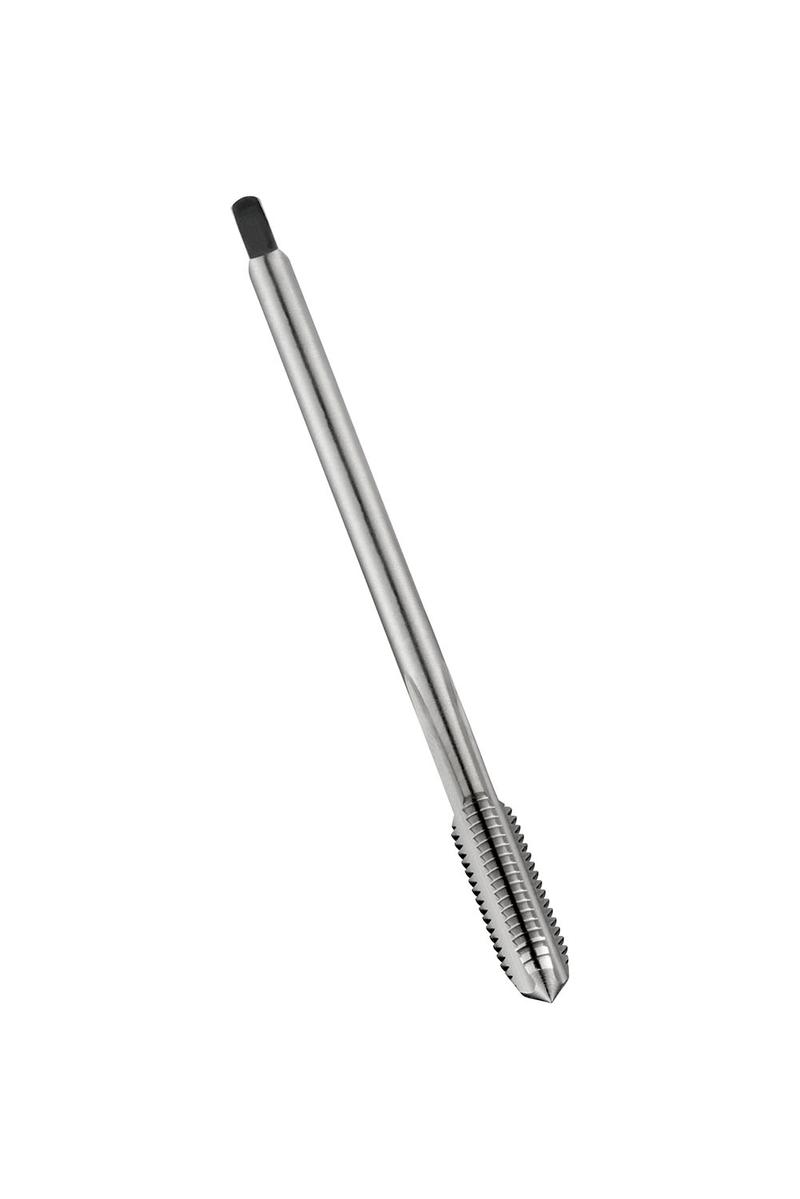

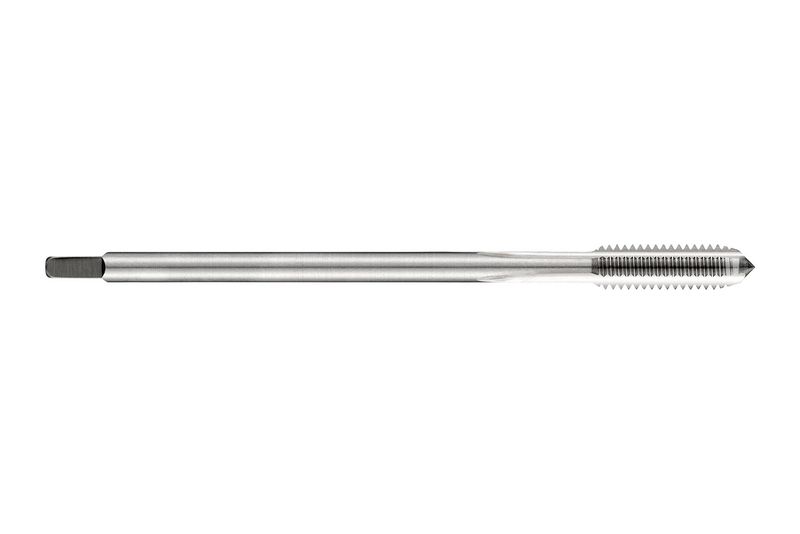

Taraud droit, pour filetage ISO-Métric M16 au pas de 2,00 mm et classe de tolérance 6H, dimensions selon la norme DIN 376 avec queue de 12,0 mm et carré d'entraînement de 9,0 mm, en HSS-E produit par métallurgie des poudres avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E250M16
GradeLumineux
Product Number5975747
Product FamilyE250
Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number86971
EAN7320760086971
File Type Download
E250M16 — Line Drawing PDF Download
