UGC DOR5975749
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.69 CAD - $49.69 CAD
$49.69 CAD
$49.69 CAD - $49.69 CAD
$49.69 CAD

Vendu en lots de : 1

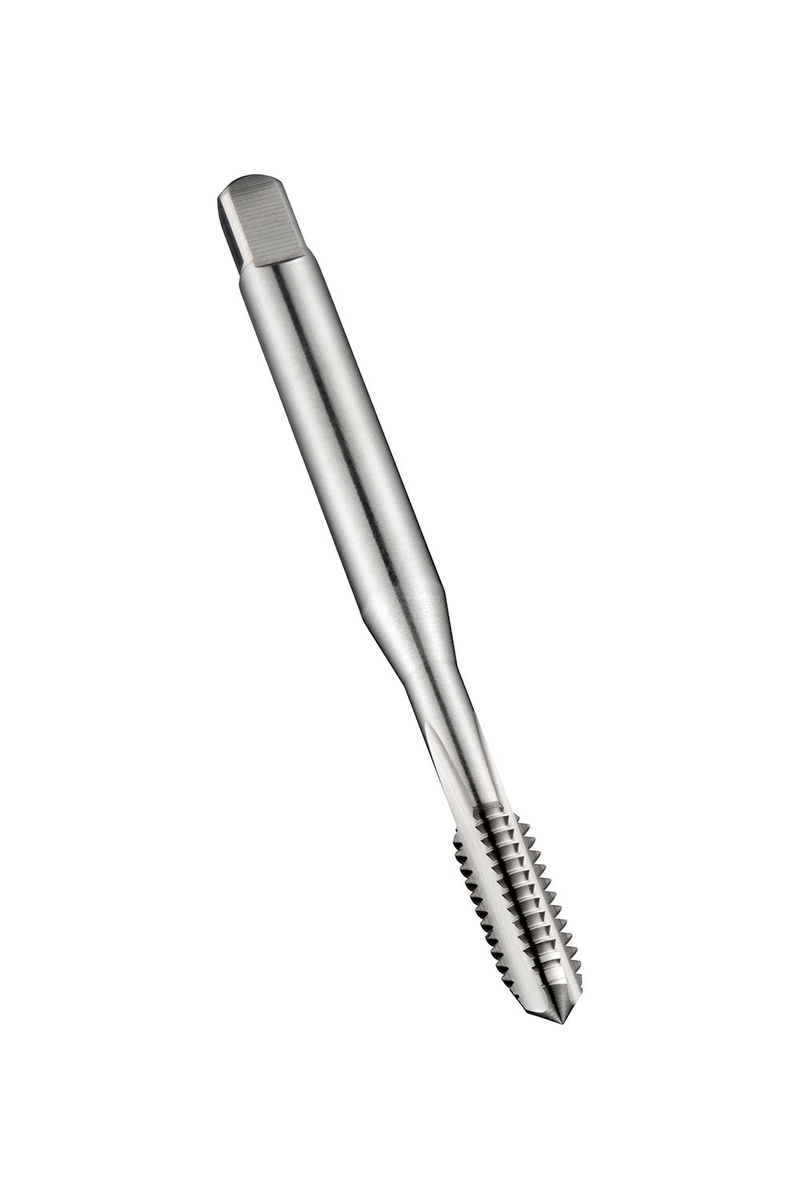

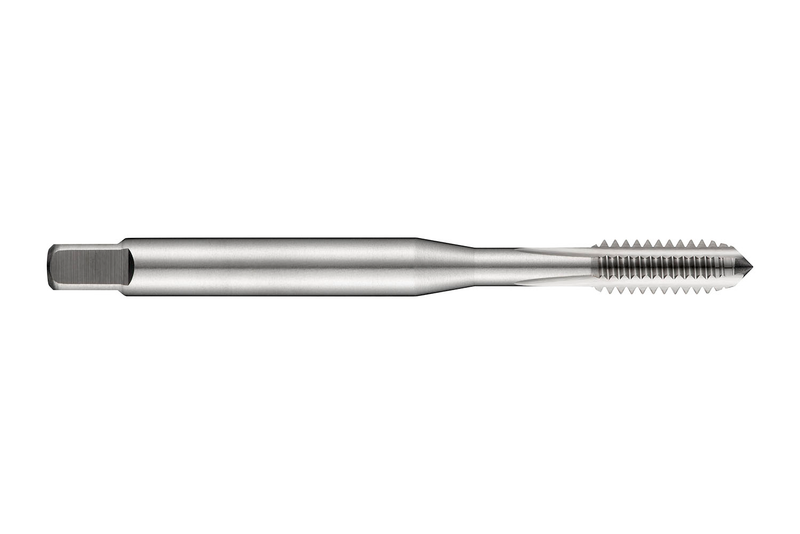

Taraud droit forme C avec entrée 2-3 filets, pour filet M10 pas 1.50mm à gauche, tolérance 6H, dimensions DIN 371, queue 10.0mm et carré d'entraînement 8.0mm, en HSS-E-PM, finition brillante, pour le taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E237M10
GradeLumineux
Product Number5975749
Product FamilyE237

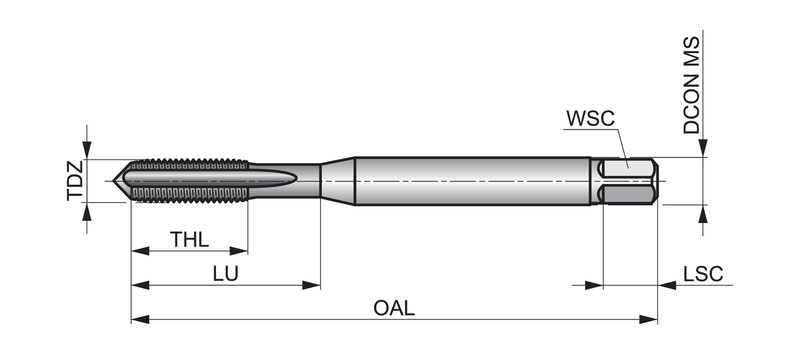

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.5354"
Usable Length — mm (LU)39.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolGauche
StandardDIN 371
Reference Numbers
EDP Number86513
EAN7320760086513
File Type Download
E237M10 — Line Drawing PDF Download
