E250M24
E250M24
E250M24

E250M24

UGC DOR5975777
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$117.33 CAD - $117.33 CAD
$117.33 CAD
$117.33 CAD - $117.33 CAD
$117.33 CAD

Vendu en lots de : 1

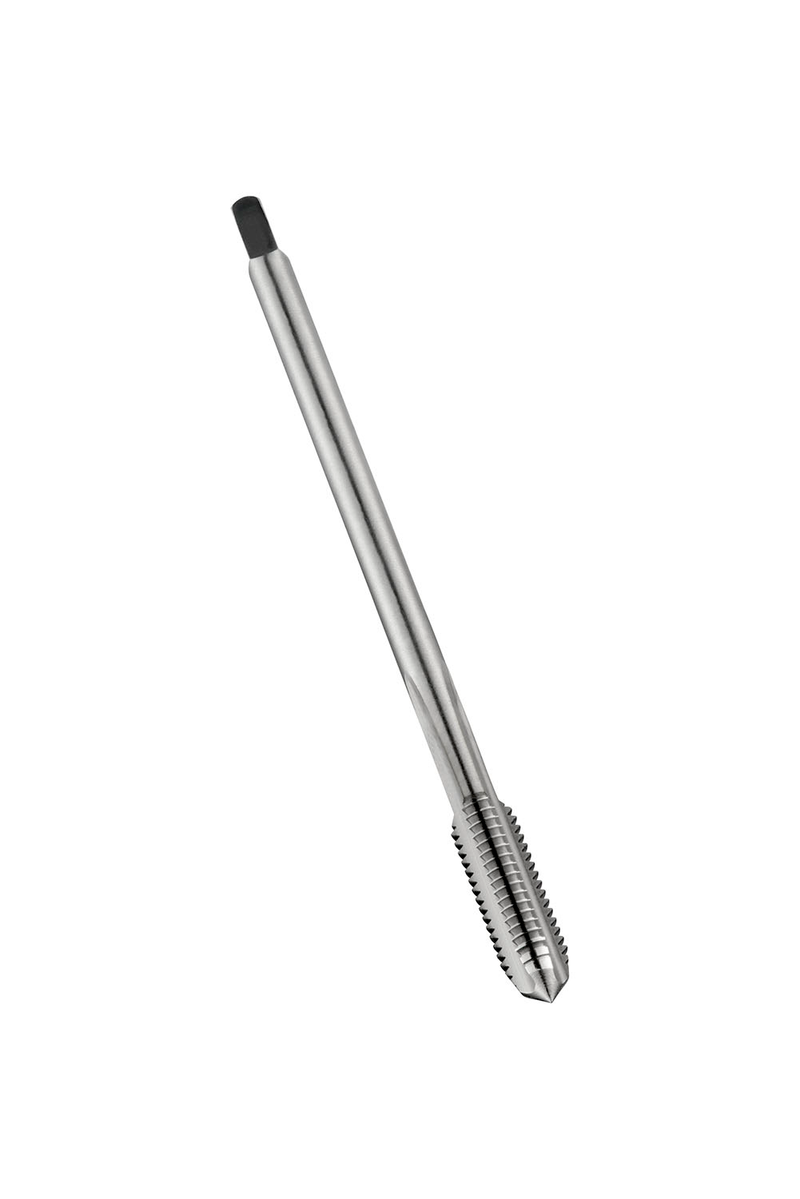

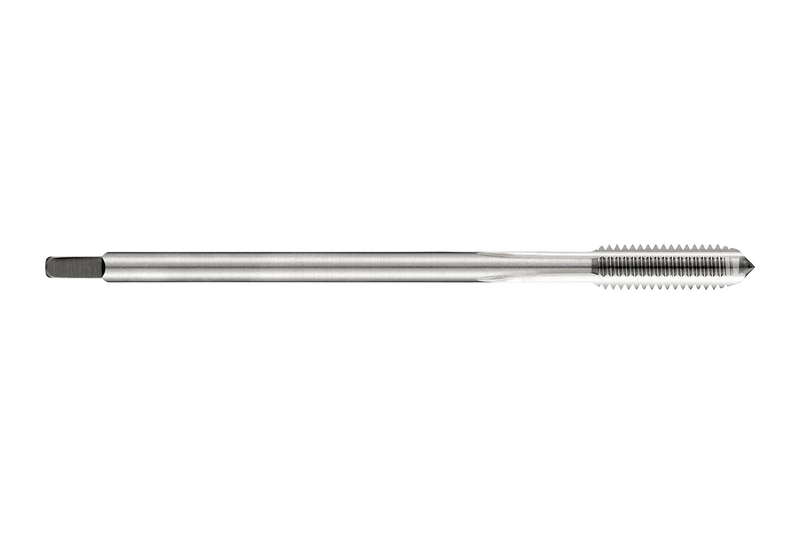

Taraud droit, pour filetage ISO-métrique M24 au pas de 3,00 mm et classe de tolérance 6H, dimensions selon la norme DIN 376 avec queue de 18,0 mm et carré d'entraînement de 14,5 mm, en HSS-E issu de la métallurgie des poudres avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E250M24
GradeLumineux
Product Number5975777
Product FamilyE250
Dimensions
Overall Length — in (OAL)6.2992"
Overall Length — mm (OAL)160.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)24
Thread Form (THFT)M - Filetage métrique à gros pas
Thread Pitch — mm (TP)3.0 mm
Thread Pitch — in (TP)0.1181"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number87015
EAN7320760087015
File Type Download
E250M24 — Line Drawing PDF Download
