E243PG11NO2
E243PG11NO2
E243PG11NO2

E243PG11NO2

UGC DOR5975784
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$99.60 CAD - $99.60 CAD
$99.60 CAD
$99.60 CAD - $99.60 CAD
$99.60 CAD

Vendu en lots de : 1

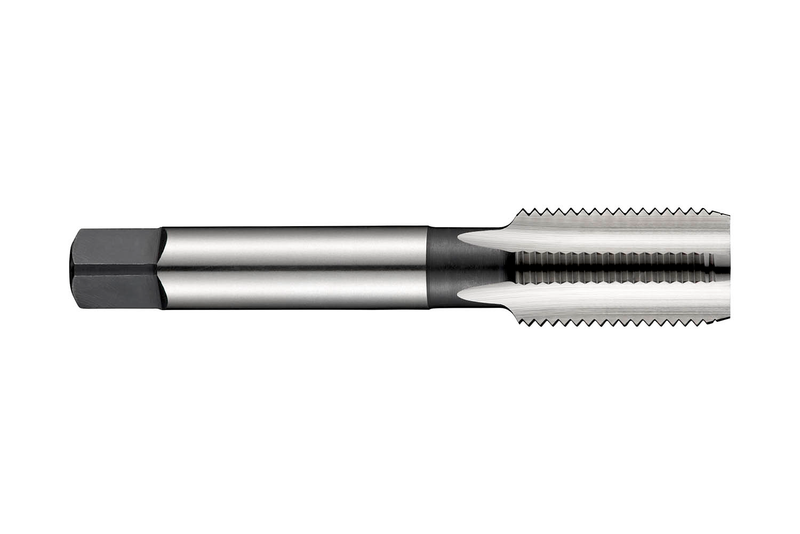

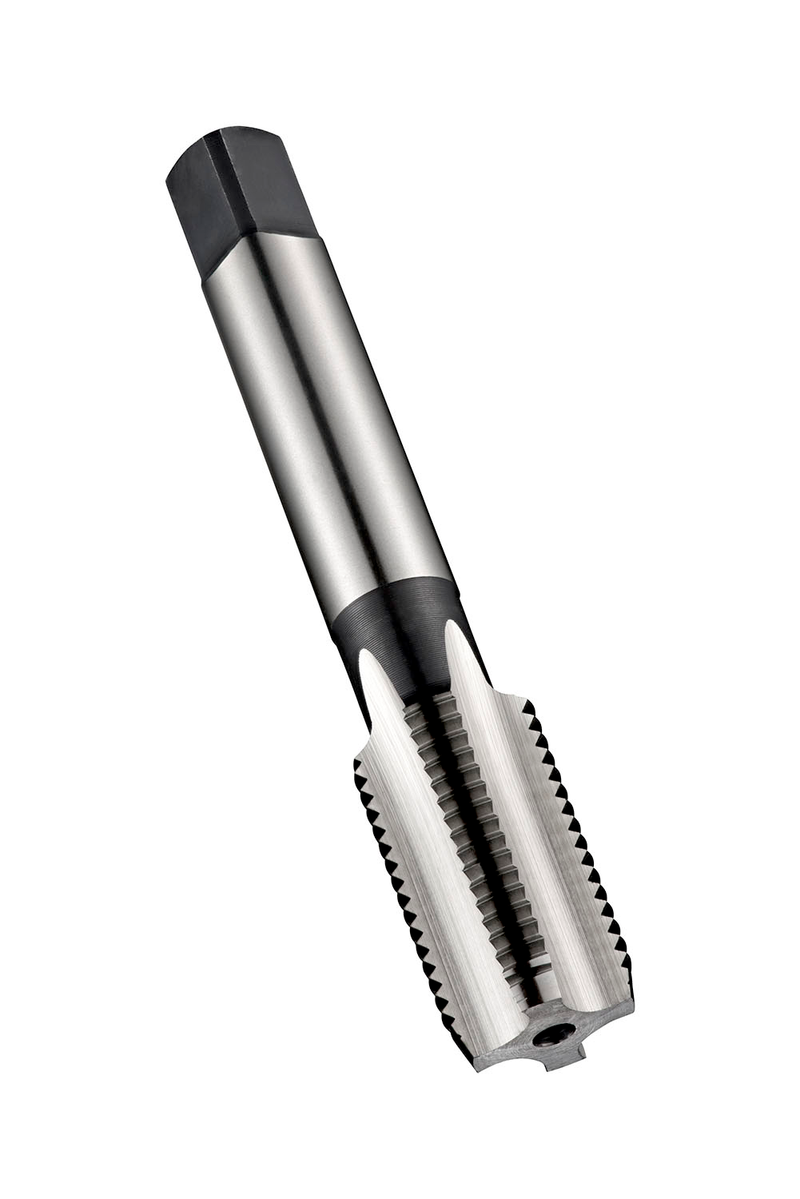

Taraud droit NO2 avec entrée 4-6 filets, pour Panzergewinde (filetage de tube acier) PG11 avec 18 TPI et classe de tolérance normale, dimensions selon DIN 40432 avec queue de 14.0mm et carré d'entraînement de 11.0mm, HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage et les aciers au carbone non alliés, ainsi que le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E243PG11NO2
GradeLumineux
Product Number5975784
Product FamilyE243

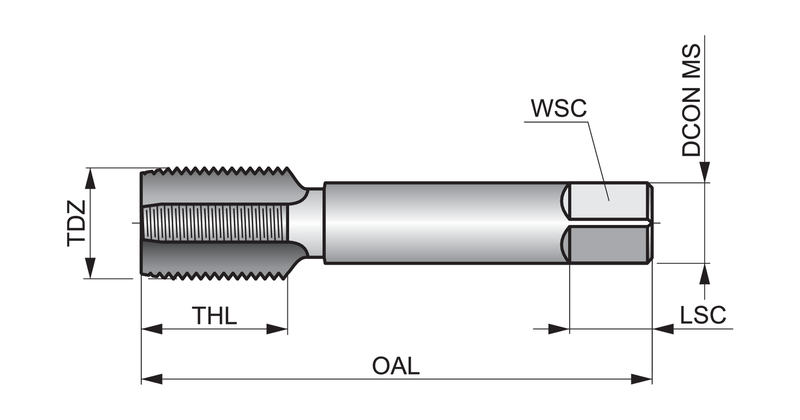

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)11
Thread Diameter — in (TD)0.7323"
Thread Diameter — mm (TD)18.6 mm
Thread Form (THFT)PG
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardDIN 40432
Reference Numbers
EDP Number86575
EAN7320760086575
File Type Download
E243PG11NO2 — Line Drawing PDF Download
