E250M27
E250M27
E250M27

E250M27

UGC DOR5975786
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$168.43 CAD - $168.43 CAD
$168.43 CAD
$168.43 CAD - $168.43 CAD
$168.43 CAD

Vendu en lots de : 1

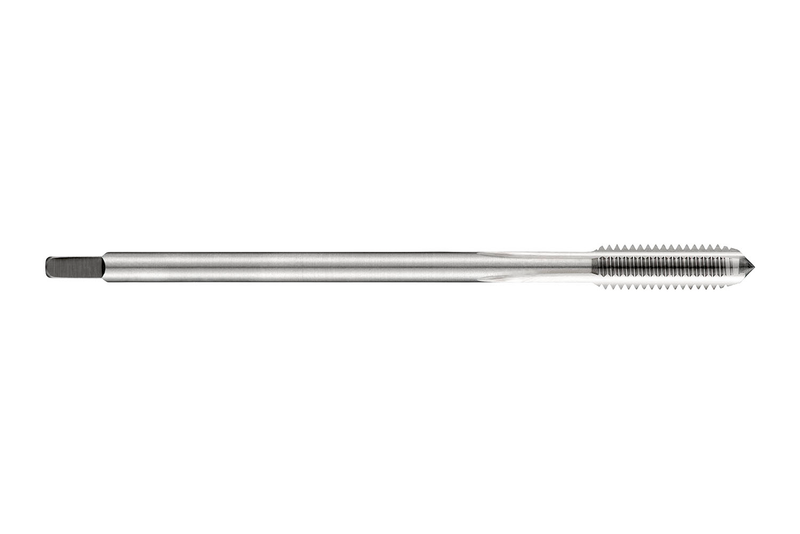

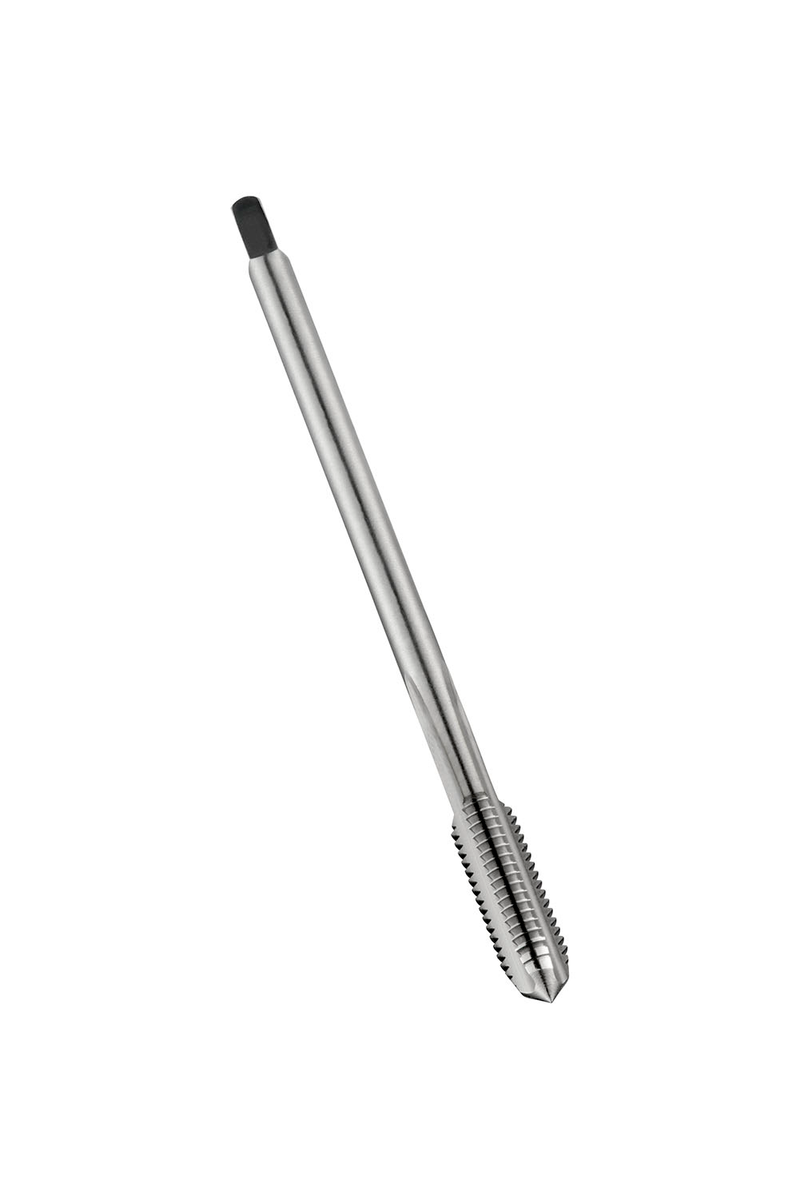

Taraud droit, pour filetage ISO-métrique M27 au pas de 3,00 mm et classe de tolérance 6H, dimensions selon norme DIN 376 avec queue de 20,0 mm et carré d'entraînement de 16,0 mm, en HSS-E PM avec finition brillante pour le taraudage de trous traversants ou borgnes jusqu'à 1,5xD dans les aciers à usinabilité améliorée et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E250M27
GradeLumineux
Product Number5975786
Product FamilyE250
Dimensions
Overall Length — in (OAL)6.2992"
Overall Length — mm (OAL)160.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)27
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)3.0 mm
Thread Pitch — in (TP)0.1181"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number87022
EAN7320760087022
File Type Download
E250M27 — Line Drawing PDF Download
