E243PG13.5NON2
E243PG13.5NON2
E243PG13.5NON2

E243PG13.5NON2

UGC DOR5975798
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$110.54 CAD - $110.54 CAD
$110.54 CAD
$110.54 CAD - $110.54 CAD
$110.54 CAD

Vendu en lots de : 1

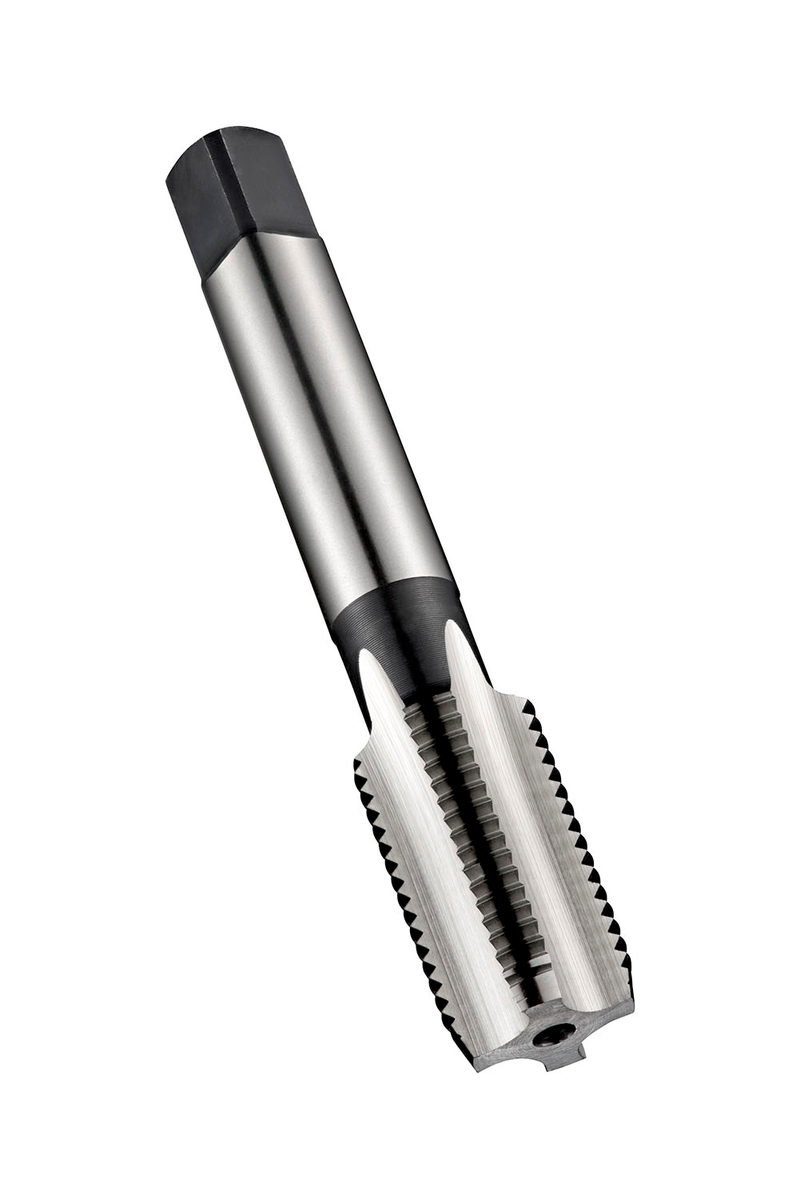

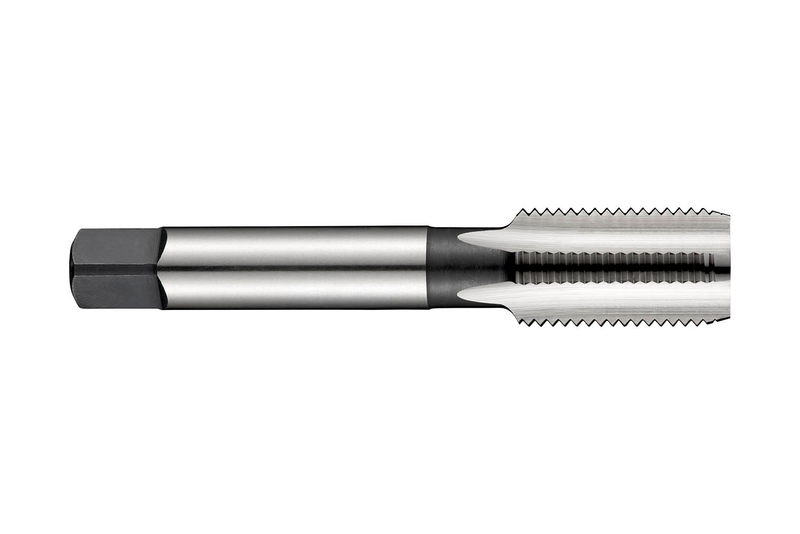

Taraud droit NO2 avec entrée 4-6xP, pour filetage Panzergewinde (filetage de conduit en acier) PG13.5 avec 18 filets par pouce et classe de tolérance normale, dimensions conformes à la norme DIN 40432 avec queue de 16,0 mm et carré d'entraînement de 12,0 mm, HSS avec finition brillante pour le taraudage de trous traversants ou borgnes de 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E243PG13.5NO2
GradeLumineux
Product Number5975798
Product FamilyE243
Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)13.5
Thread Diameter — in (TD)0.8031"
Thread Diameter — mm (TD)20.4 mm
Thread Form (THFT)PG
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 40432
Reference Numbers
EDP Number138878
EAN7320760138878
File Type Download

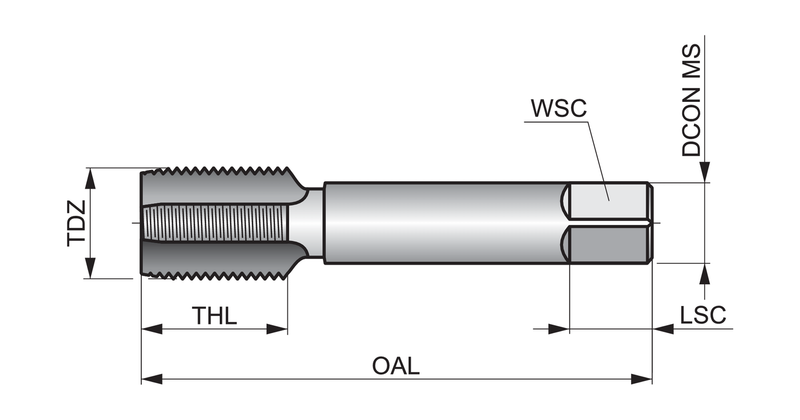

E243PG13.5NON2 — Line Drawing PDF Download
