E250M30
E250M30
E250M30

E250M30

UGC DOR5975799
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$198.14 CAD - $198.14 CAD
$198.14 CAD
$198.14 CAD - $198.14 CAD
$198.14 CAD

Vendu en lots de : 1

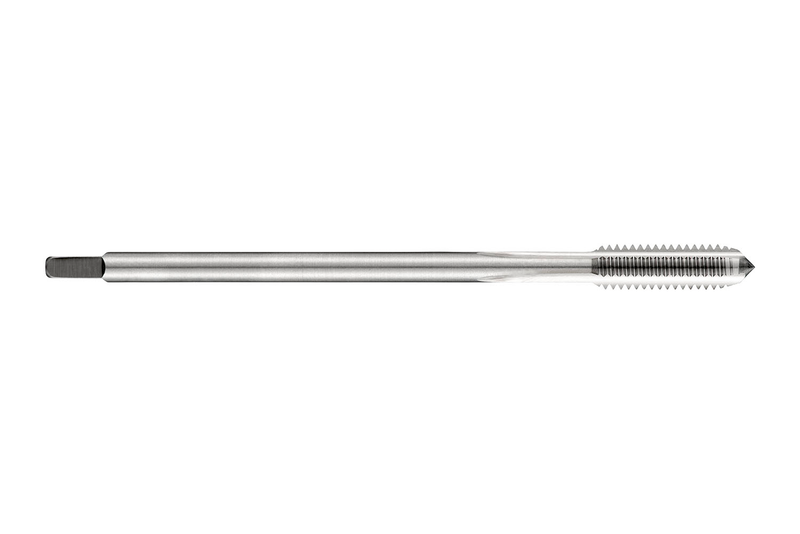

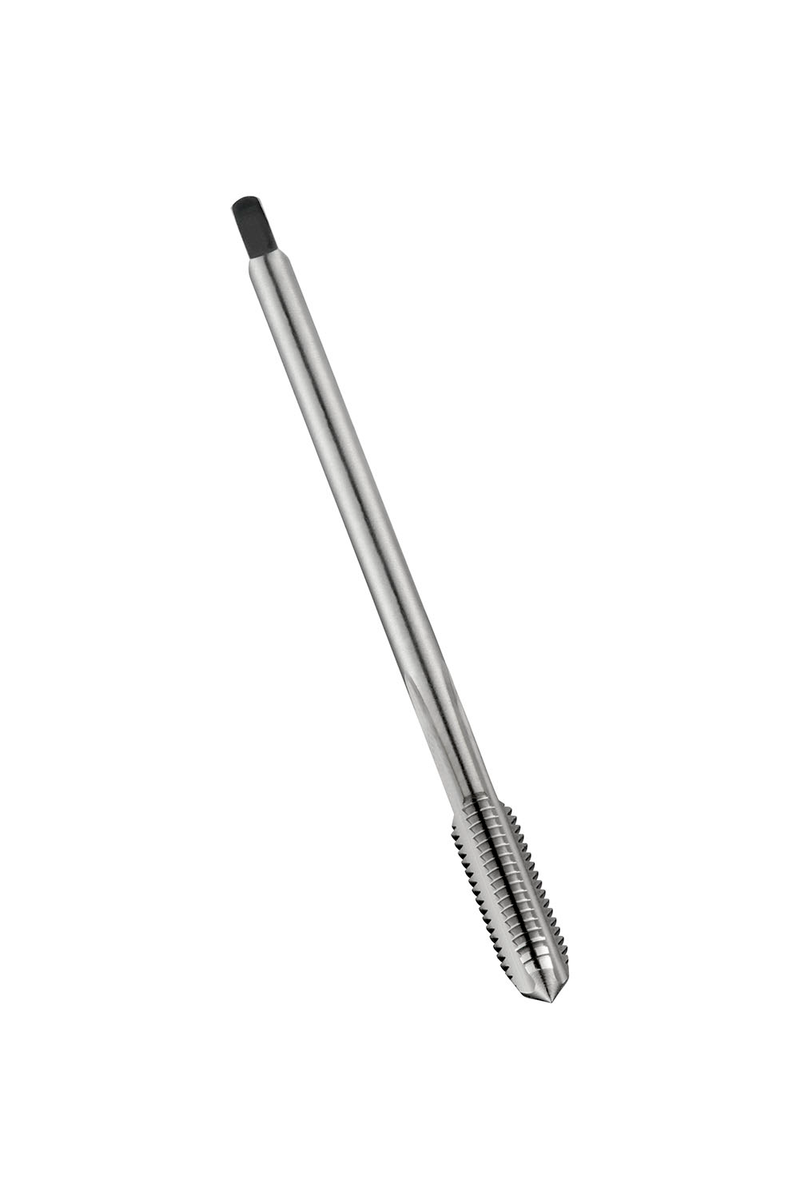

Taraud droit, pour filet ISO-Métrique M30 au pas de 3,50 mm et de classe de tolérance 6H, dimensions conformes à la norme DIN 376 avec queue de 22,0 mm et carré d'entraînement de 18,0 mm, en HSS-E (acier rapide fritté) avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E250M30
GradeLumineux
Product Number5975799
Product FamilyE250
Dimensions
Overall Length — in (OAL)7.0866"
Overall Length — mm (OAL)180.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.8661"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)30
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)3.5 mm
Thread Pitch — in (TP)0.1378"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number87053
EAN7320760087053
File Type Download
E250M30 — Line Drawing PDF Download
