UGC DOR5975801
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$110.54 CAD - $110.54 CAD
$110.54 CAD
$110.54 CAD - $110.54 CAD
$110.54 CAD

Vendu en lots de : 1

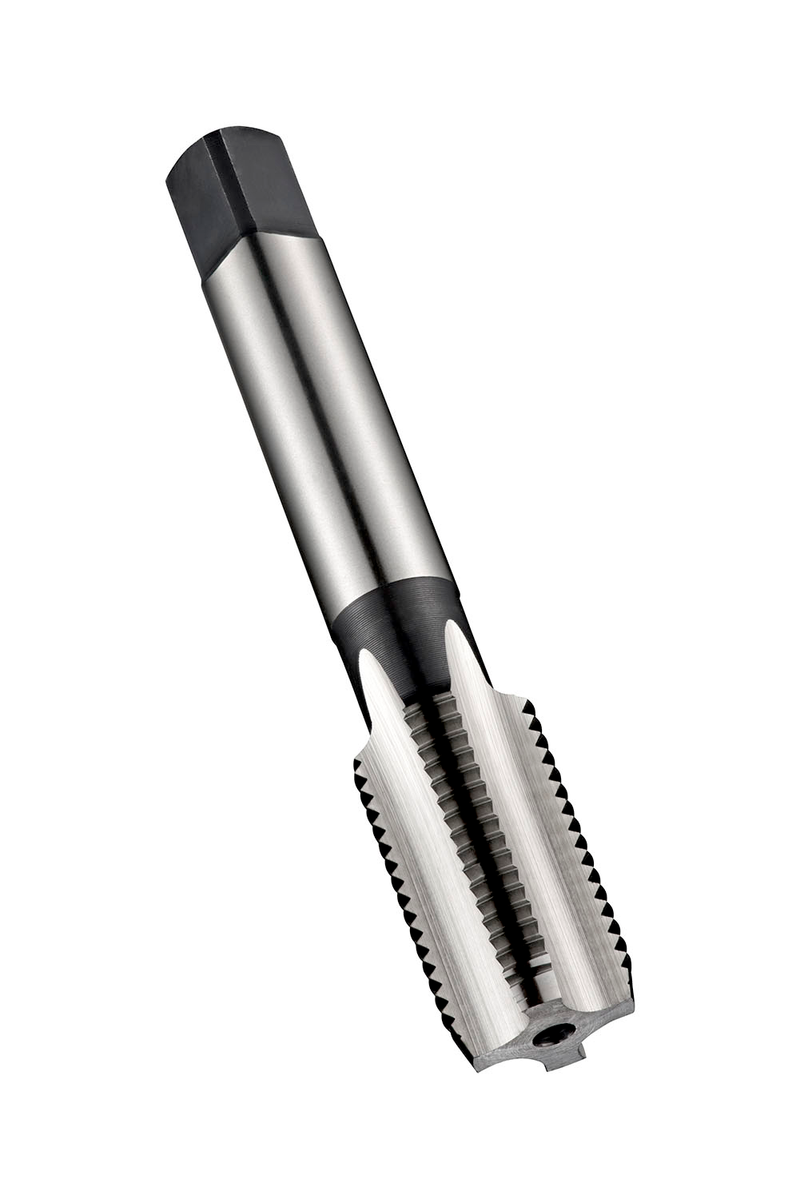

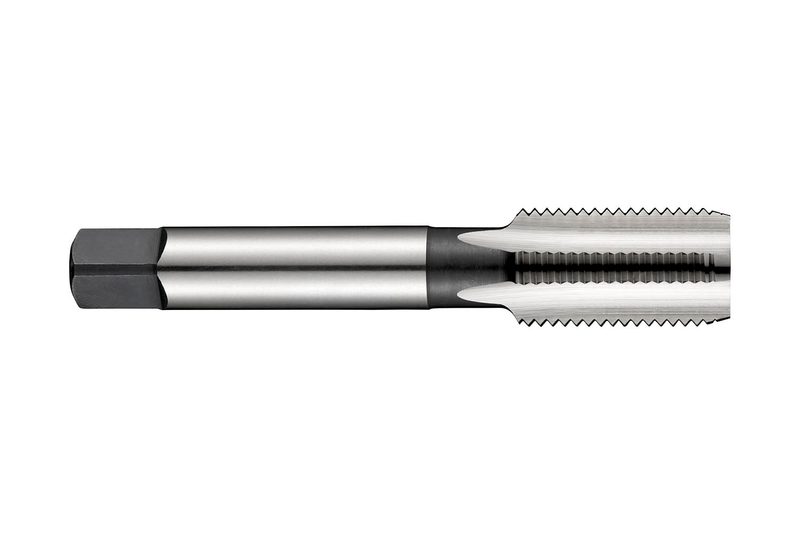

Taraud droit N°3 avec entrée courte 2-3 filets, pour filetage Panzergewinde (tube acier) PG13.5 avec 18 filets par pouce et tolérance normale, dimensions selon la norme DIN 40432 avec un diamètre de queue de 16,0mm et un carré d'entraînement de 12,0mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile et les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)E243PG13.5NO3
Product Name (ISO)E243PG13.5NONO3
GradeLumineux
Product Number5975801
Product FamilyE243

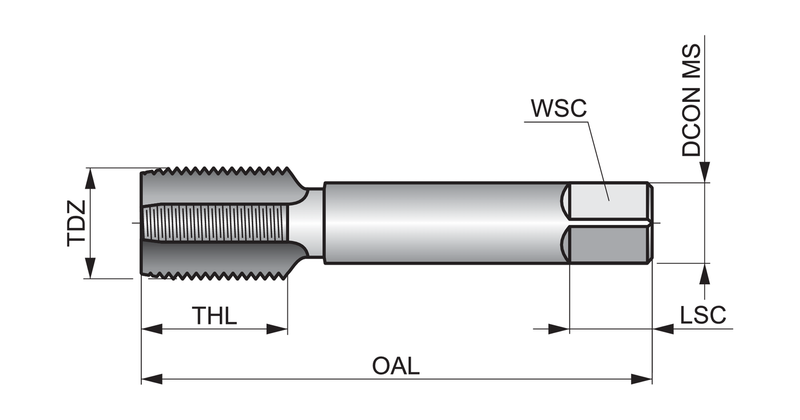

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)13.5
Thread Diameter — in (TD)0.8031"
Thread Diameter — mm (TD)20.4 mm
Thread Form (THFT)PG
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique à entraînement carré
Direction of ToolD'accord
StandardDIN 40432
Reference Numbers
EDP Number86599
EAN7320760086599
File Type Download
E243PG13.5NO3 — Line Drawing PDF Download
