UGC DOR5975805
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$146.00 CAD - $146.00 CAD
$146.00 CAD
$146.00 CAD - $146.00 CAD
$146.00 CAD

Vendu en lots de : 1

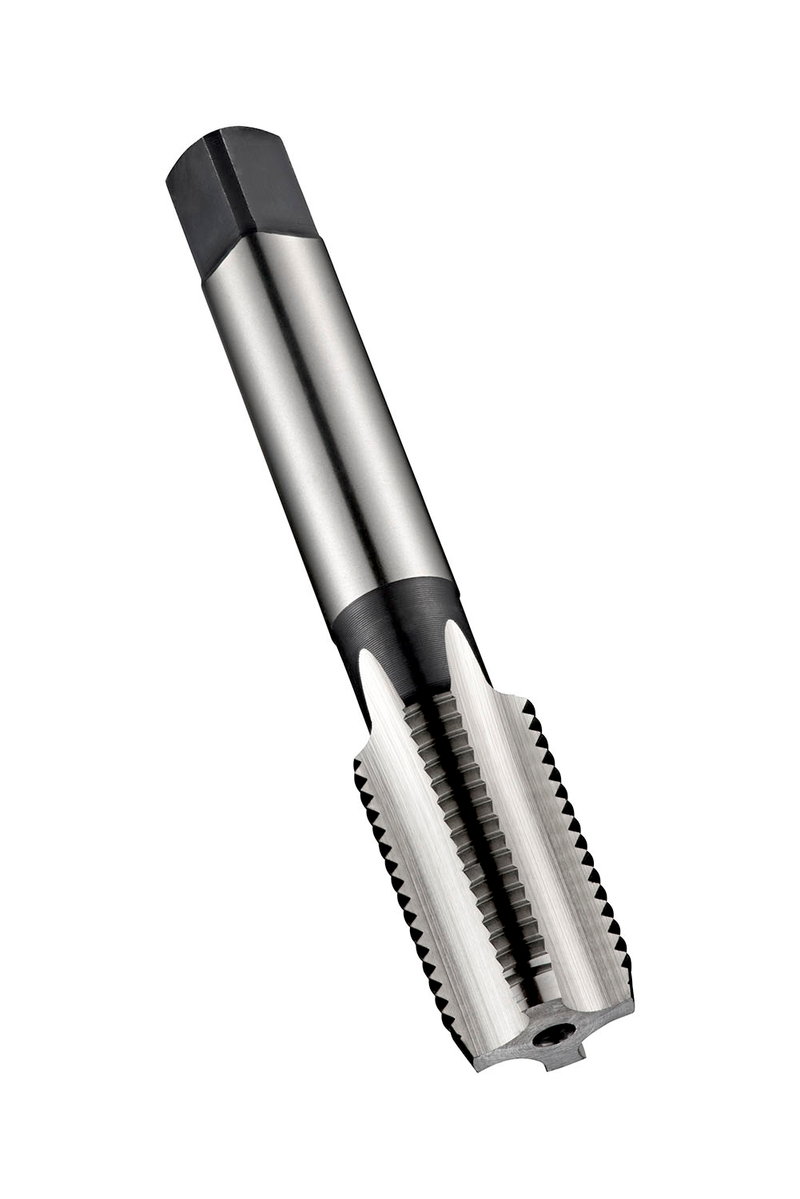

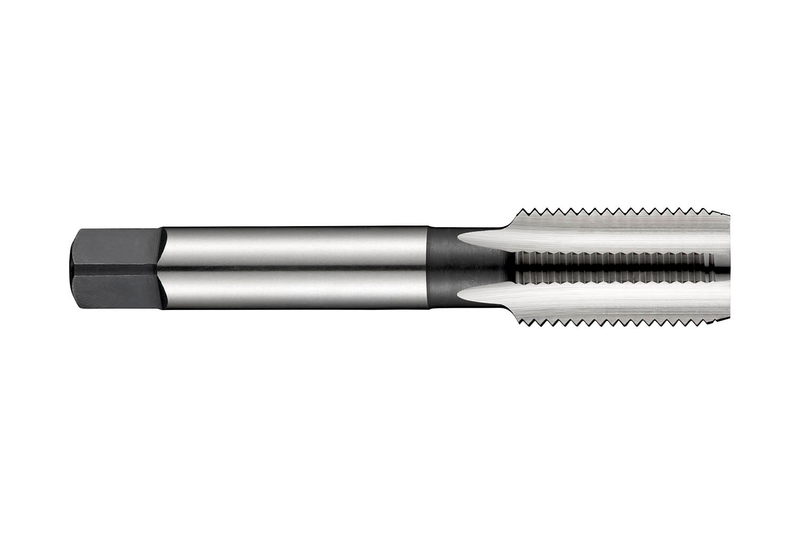

Taraud droit NO2 avec entrée 4-6xP, pour filetage Panzergewinde PG16 avec 18 filets par pouce et classe de tolérance normale, dimensions selon la norme DIN 40432 avec queue de 18,0mm et carré d'entraînement de 14,5mm, en acier rapide (HSS) finition brillante pour taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés, ainsi que le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E243PG16NO2
GradeLumineux
Product Number5975805
Product FamilyE243

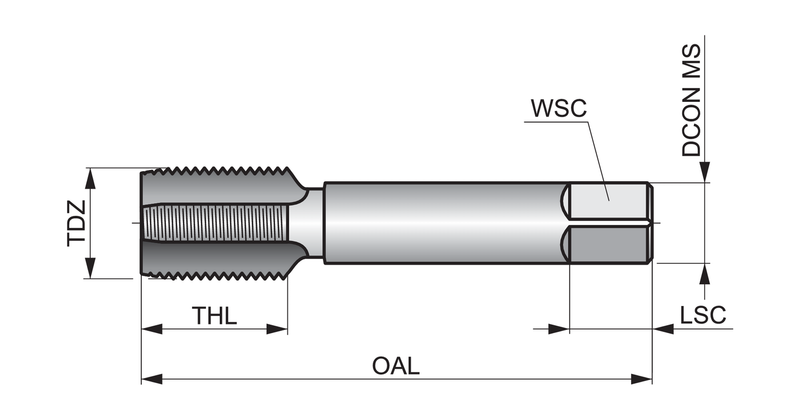

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)16
Thread Diameter — in (TD)0.8858"
Thread Diameter — mm (TD)22.5 mm
Thread Form (THFT)PG
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 40432
Reference Numbers
EDP Number86605
EAN7320760086605
File Type Download
E243PG16NO2 — Line Drawing PDF Download
