E243PG16NO3
E243PG16NO3
E243PG16NO3

E243PG16NO3

UGC DOR5975809
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$146.00 CAD - $146.00 CAD
$146.00 CAD
$146.00 CAD - $146.00 CAD
$146.00 CAD

Vendu en lots de : 1

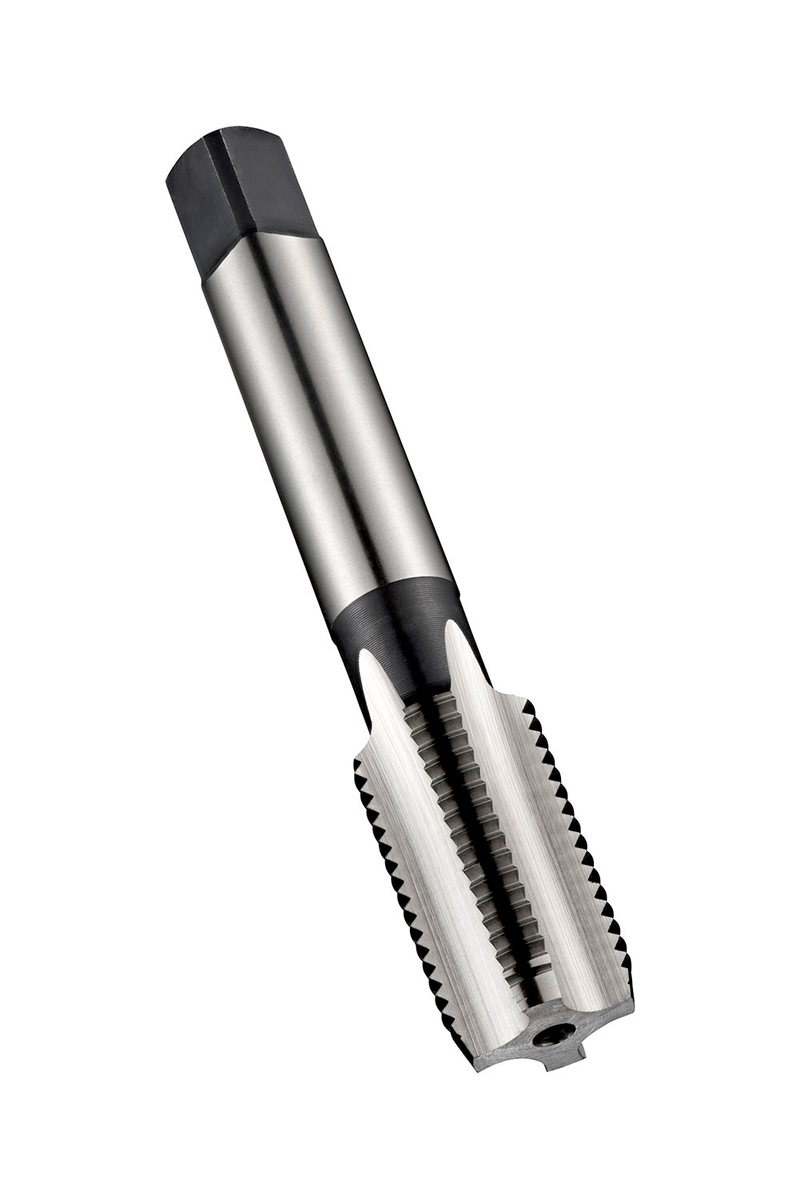

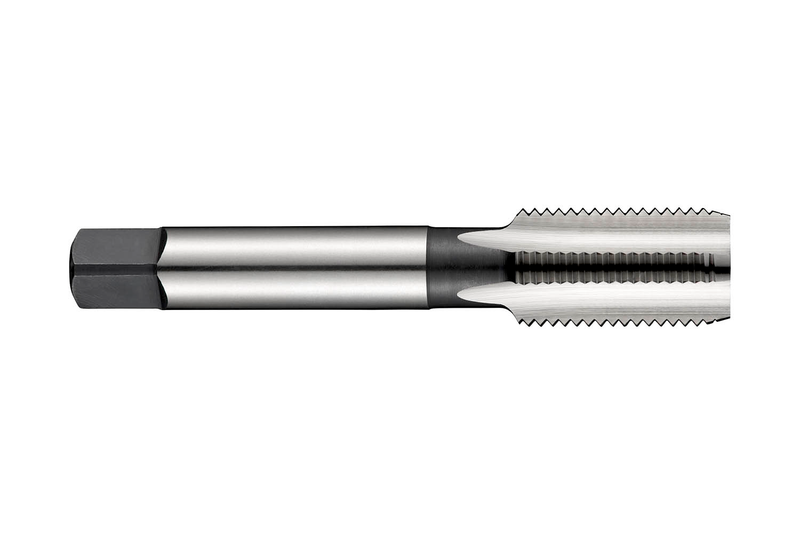

Taraud droit NO3 avec entrée 2-3xP, pour filetage de tube acier PG16 avec 18 filets par pouce et classe de tolérance normale, dimensions selon la norme DIN 40432 avec queue de 18,0 mm et carré d'entraînement de 14,5 mm, HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile et au carbone, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E243PG16NO3
GradeLumineux
Product Number5975809
Product FamilyE243
Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)16
Thread Diameter — in (TD)0.8858"
Thread Diameter — mm (TD)22.5 mm
Thread Form (THFT)PG
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardDIN 40432
Reference Numbers
EDP Number86612
EAN7320760086612
File Type Download

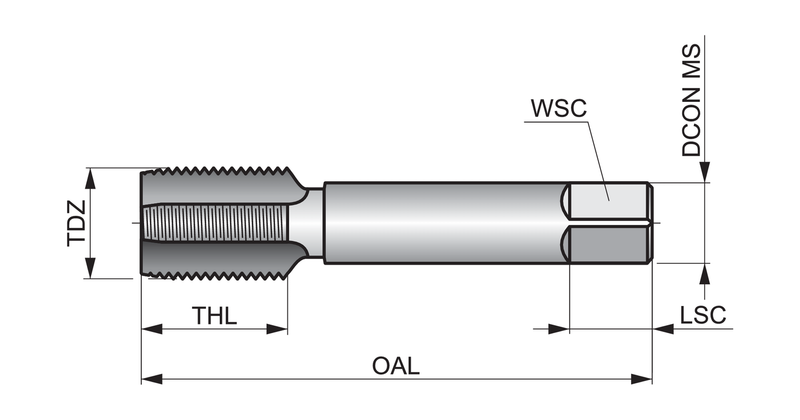

E243PG16NO3 — Line Drawing PDF Download
