UGC DOR5975811
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$196.06 CAD - $196.06 CAD
$196.06 CAD
$196.06 CAD - $196.06 CAD
$196.06 CAD

Vendu en lots de : 1

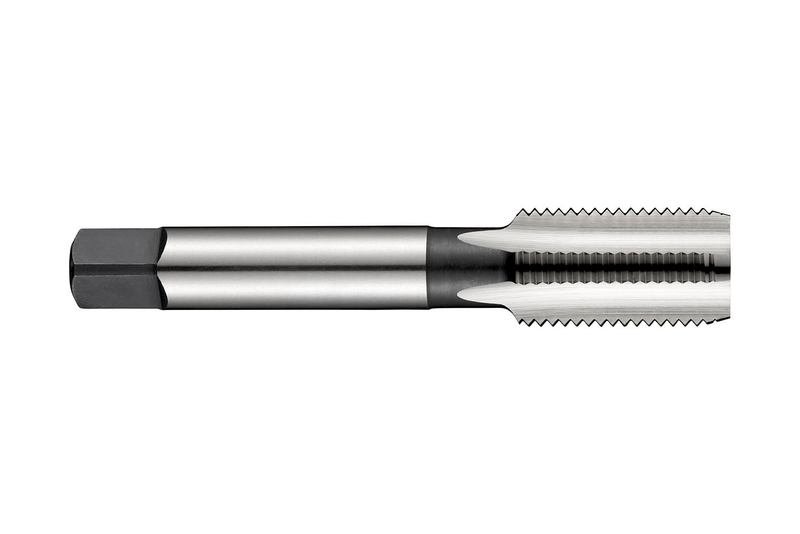

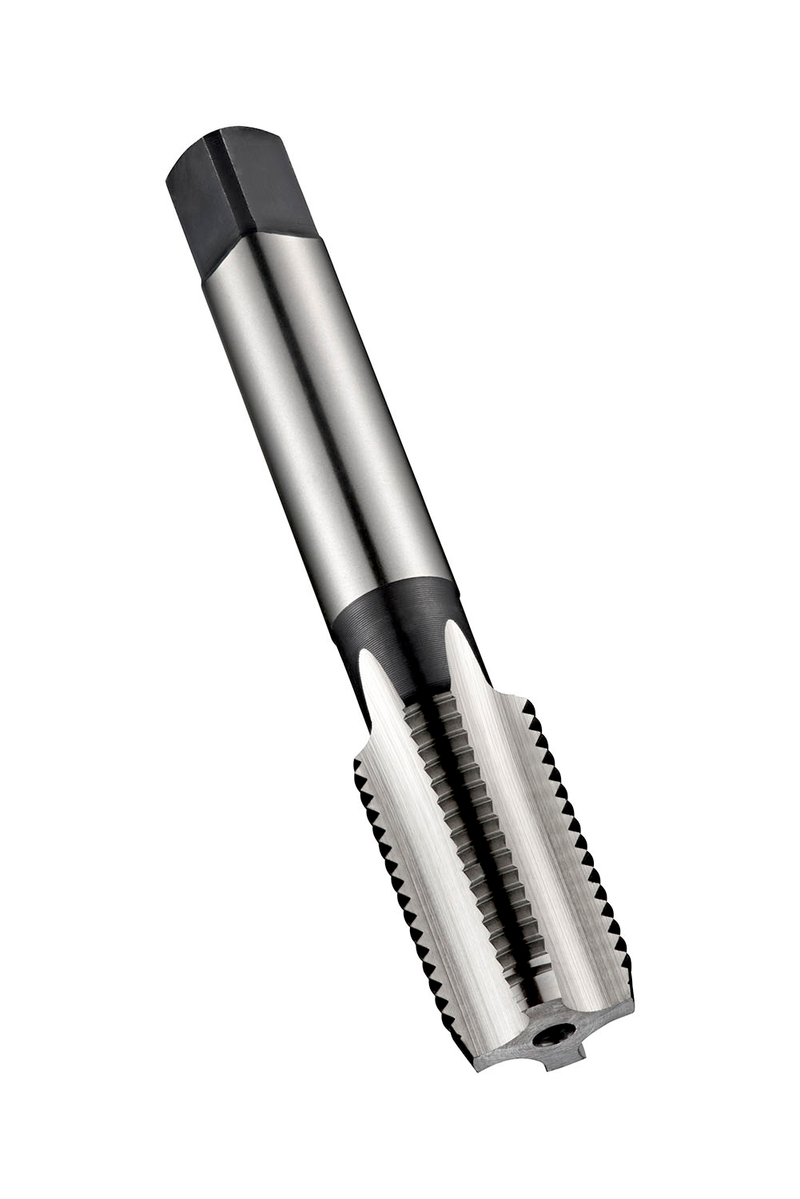

Taraud droit NO2 avec entrée 4-6 filets pour filetage Panzergewinde PG21, pas de 16 filets au pouce et tolérance Normal, dimensions selon la norme DIN 40432, queue de 22,0mm et carré d'entraînement de 18,0mm, en HSS poli pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile, aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)E243PG21NON2
Product Name (ISO)E243PG21NO2
GradeLumineux
Product Number5975811
Product FamilyE243

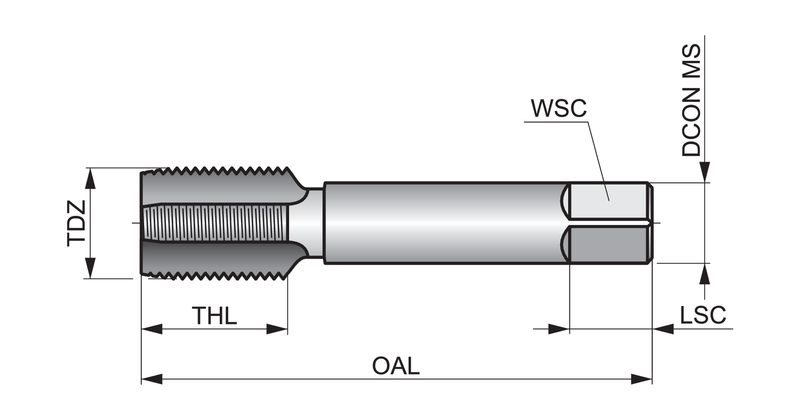

Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.8661"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)21
Thread Diameter — in (TD)1.1142"
Thread Diameter — mm (TD)28.3 mm
Thread Form (THFT)PG
Threads per Inch (TPI)16.0
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 40432
Reference Numbers
EDP Number86629
EAN7320760086629
File Type Download
E243PG21NON2 — Line Drawing PDF Download
