E250M39
E250M39
E250M39

E250M39

UGC DOR5975814
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$396.81 CAD - $396.81 CAD
$396.81 CAD
$396.81 CAD - $396.81 CAD
$396.81 CAD

Vendu en lots de : 1

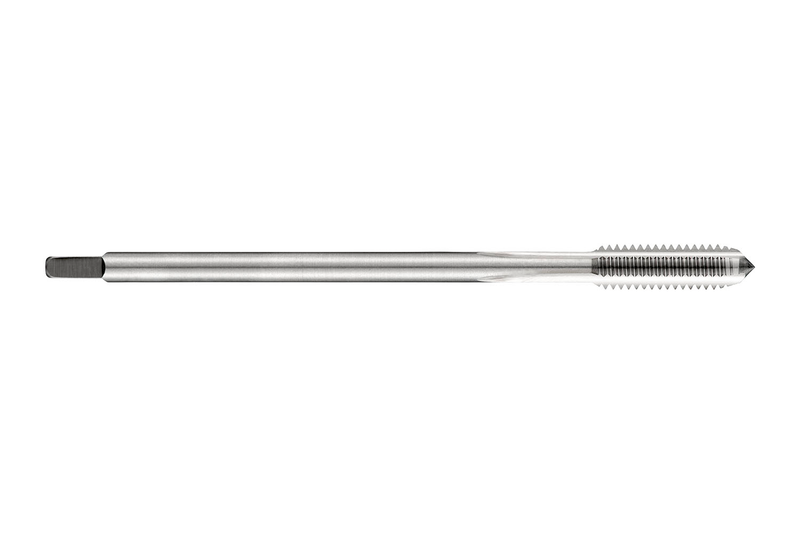

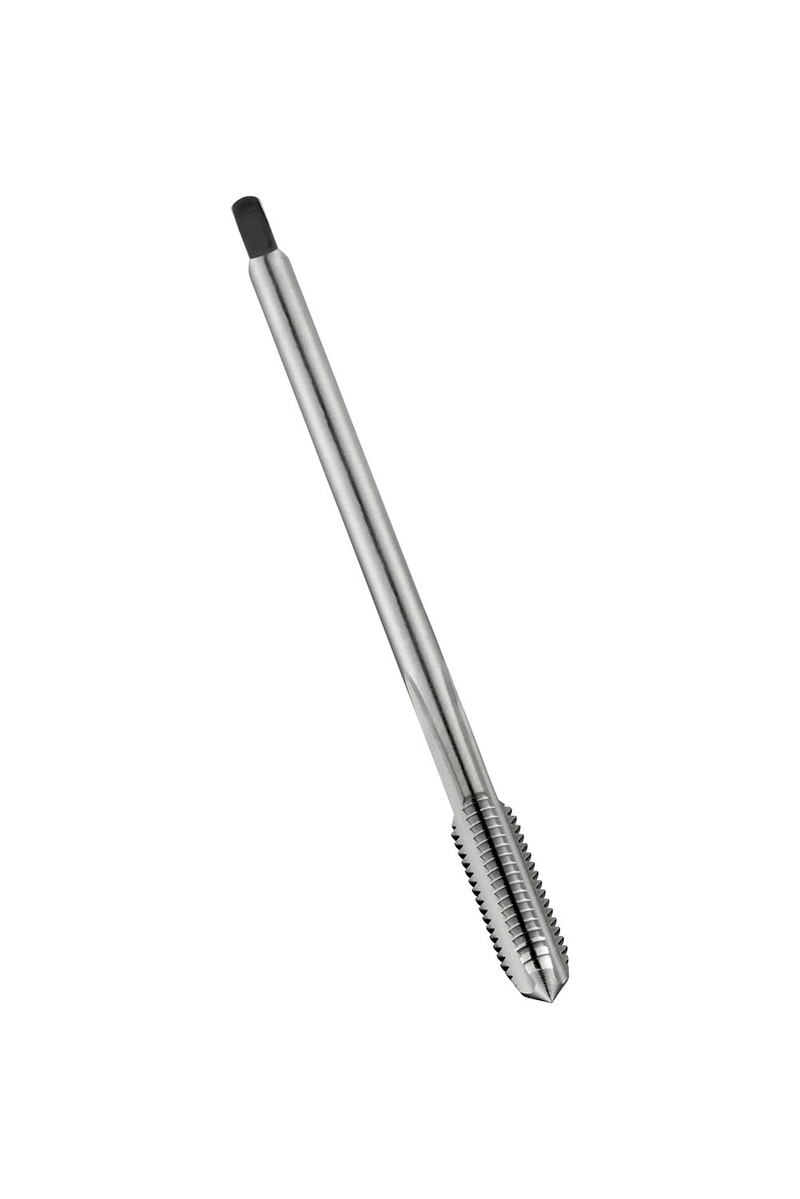

Taraud droit, pour filet ISO-Métrique M39 au pas de 4,00 mm et classe de tolérance 6H, dimensions selon norme DIN 376 avec queue de 32,0 mm et carré d'entraînement de 24,0 mm, HSS-E issu de la métallurgie des poudres avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E250M39
GradeLumineux
Product Number5975814
Product FamilyE250
Dimensions
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)39
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)4.0 mm
Thread Pitch — in (TP)0.1575"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number87084
EAN7320760087084
File Type Download

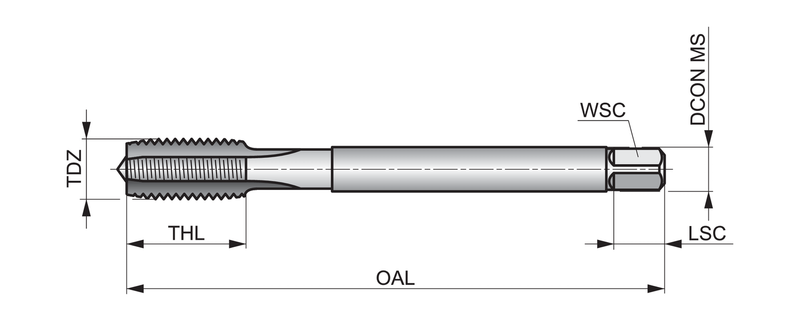

E250M39 — Line Drawing PDF Download
