UGC DOR5975815
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$196.06 CAD - $196.06 CAD
$196.06 CAD
$196.06 CAD - $196.06 CAD
$196.06 CAD

Vendu en lots de : 1

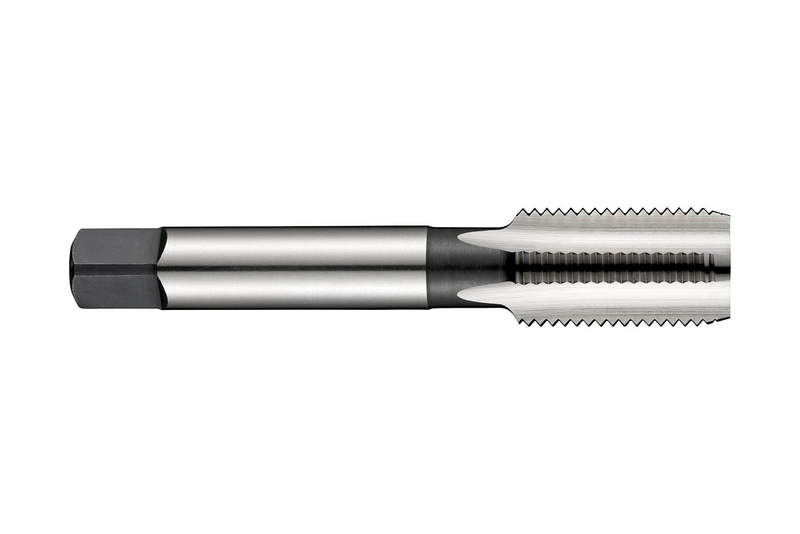

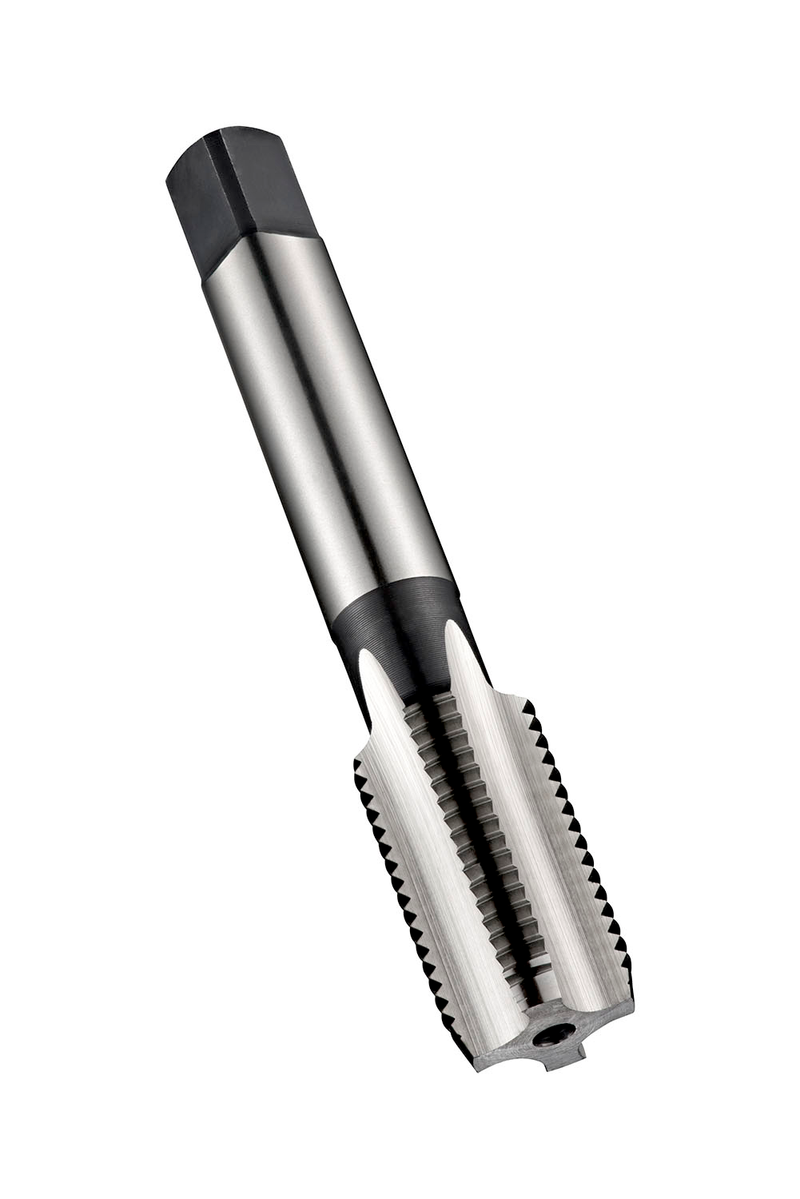

Taraud droit NO3 avec entrée courte de 2-3 filets, pour filetage Panzergewinde (tube acier) PG21 avec 16 TPI et classe de tolérance normale, dimensions selon la norme DIN 40432 avec un carré d'entraînement de 18.0mm et un diamètre de queue de 22.0mm, HSS brillant pour taraudage de trous débouchants ou borgnes de 1.5xD dans les aciers non alliés d'usage général et les aciers au carbone non alliés à usinage facile, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E243PG21NO3
GradeLumineux
Product Number5975815
Product FamilyE243

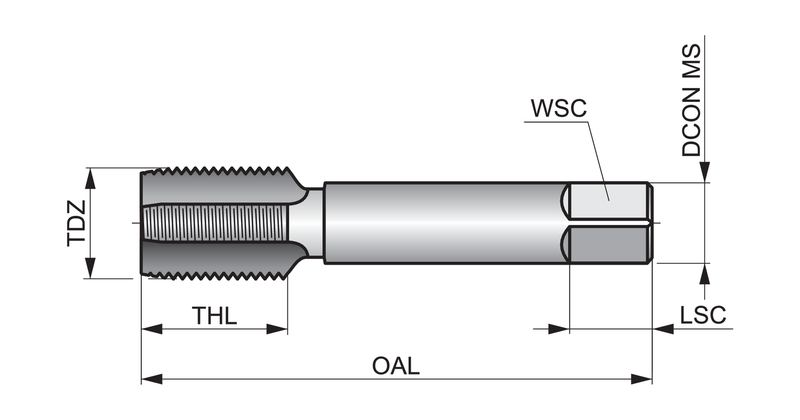

Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.8661"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)21
Thread Diameter — in (TD)1.1142"
Thread Diameter — mm (TD)28.3 mm
Thread Form (THFT)PG
Threads per Inch (TPI)16.0
Tool Information
ShankTige cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 40432
Reference Numbers
EDP Number86636
EAN7320760086636
File Type Download
E243PG21NO3 — Line Drawing PDF Download
