UGC DOR5975822
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$313.39 CAD - $313.39 CAD
$313.39 CAD
$313.39 CAD - $313.39 CAD
$313.39 CAD

Vendu en lots de : 1

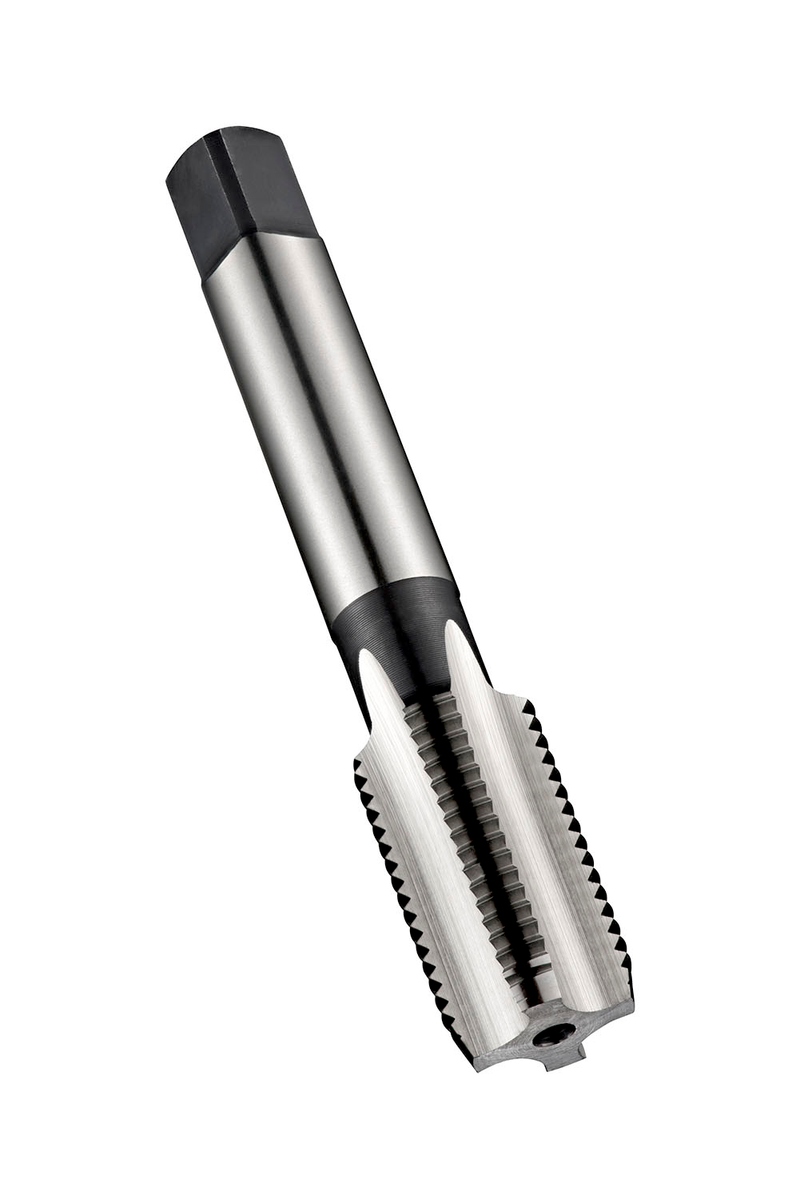

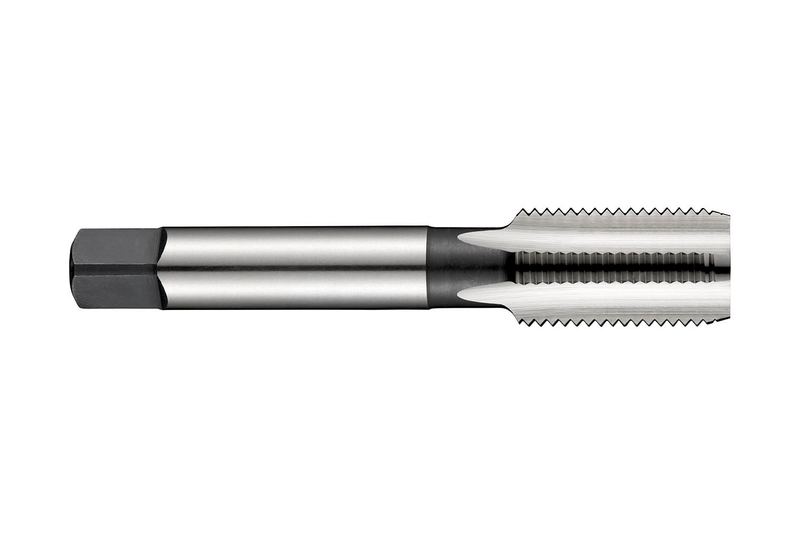

Taraud droit NO3 avec entrée courte 2-3xP, pour filetage Panzergewinde (tube acier) PG29 avec 16 filets par pouce et tolérance Normale, dimensions selon norme DIN 40432 avec queue de 28,0mm et carré d'entraînement de 22,0mm, HSS poli brillant pour filetage 1.5xD débouchant ou borgne dans les aciers à usinabilité améliorée, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E243PG29NO3
GradeLumineux
Product Number5975822
Product FamilyE243

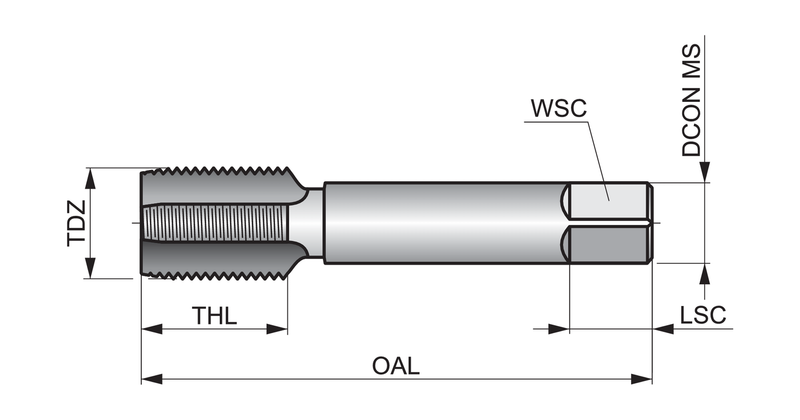

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)1.1024"
Connection Dia. — mm (DCON)28.0 mm
Number of Flutes (NOF)6
Threading
Thread Diameter Size (TDZ)29
Thread Diameter — in (TD)1.4567"
Thread Diameter — mm (TD)37.0 mm
Thread Form (THFT)PG
Threads per Inch (TPI)16.0
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardDIN 40432
Reference Numbers
EDP Number86650
EAN7320760086650
File Type Download
E243PG29NO3 — Line Drawing PDF Download
