E243PG36NO2
E243PG36NO2
E243PG36NO2

E243PG36NO2

UGC DOR5975827
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$414.01 CAD - $414.01 CAD
$414.01 CAD
$414.01 CAD - $414.01 CAD
$414.01 CAD

Vendu en lots de : 1

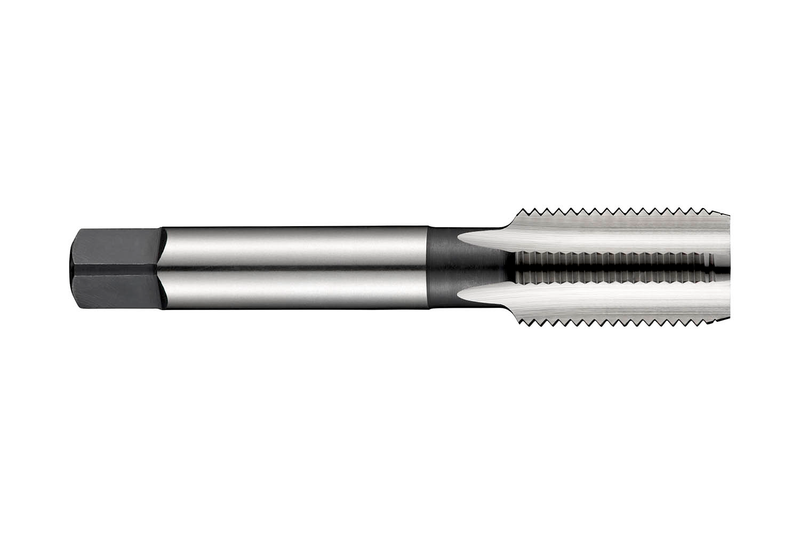

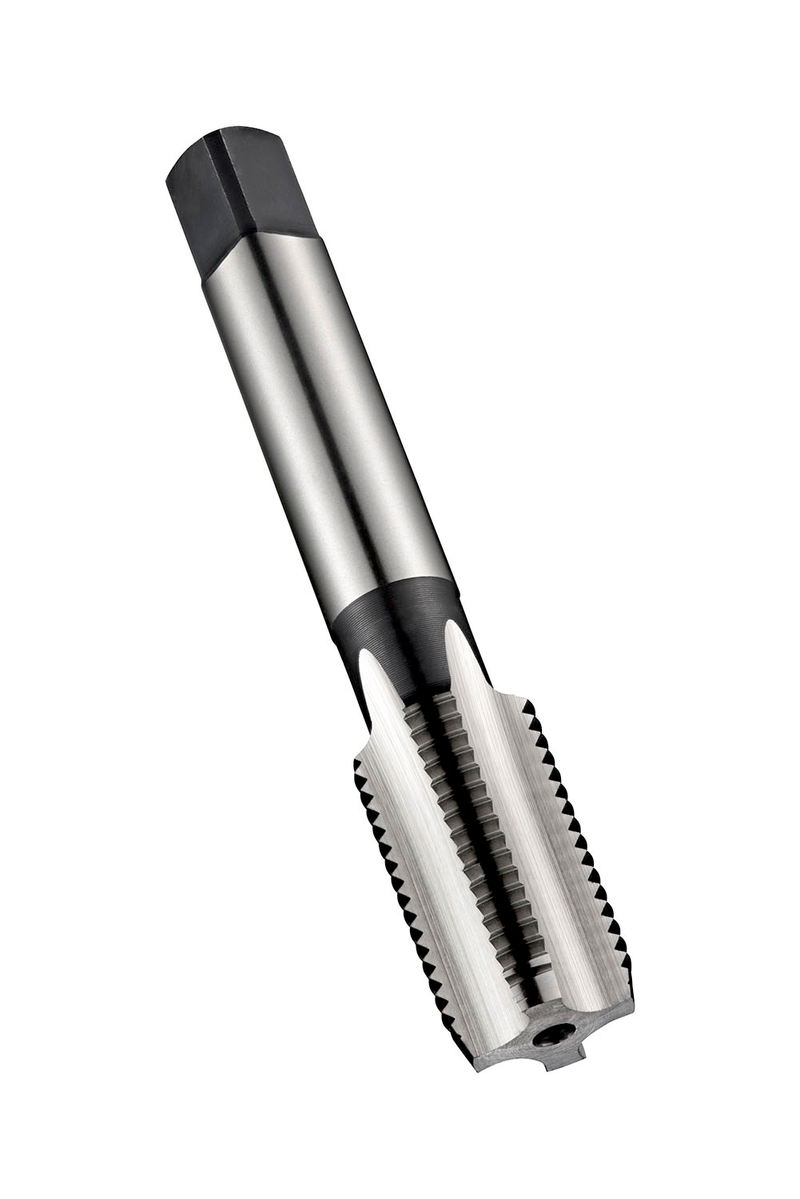

Taraud droit NO2 avec entrée de 4-6xP, pour filetage de conduit acier Panzergewinde PG36 avec 16 TPI et classe de tolérance normale, dimensions selon la norme DIN 40432 avec queue de 36,0 mm et carré d'entraînement de 29,0 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes de 1,5xD dans les aciers de décolletage, aciers au carbone non alliés, cuivre et alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)E243PG36NO2
Product Name (ISO)E243PG36NON2
GradeLumineux
Product Number5975827
Product FamilyE243

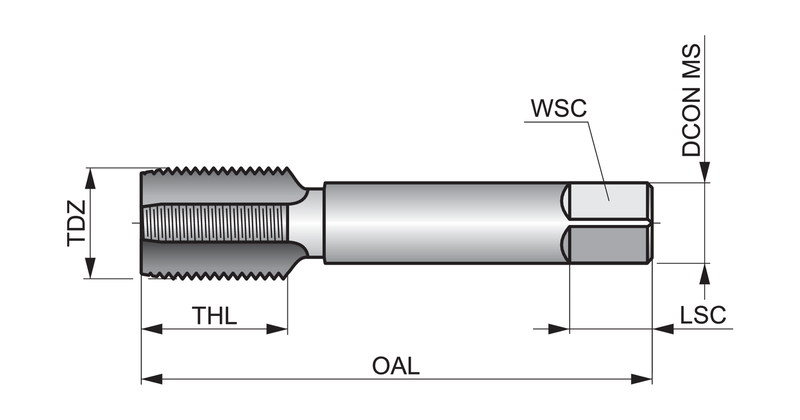

Dimensions
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)1.4173"
Connection Dia. — mm (DCON)36.0 mm
Number of Flutes (NOF)6
Threading
Thread Diameter Size (TDZ)36
Thread Diameter — in (TD)1.8504"
Thread Diameter — mm (TD)47.0 mm
Thread Form (THFT)PG
Threads per Inch (TPI)16.0
Tool Information
ShankTige cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 40432
Reference Numbers
EDP Number86667
EAN7320760086667
File Type Download
E243PG36NO2 — Line Drawing PDF Download
