UGC DOR5975836
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$473.99 CAD - $473.99 CAD
$473.99 CAD
$473.99 CAD - $473.99 CAD
$473.99 CAD

Vendu en lots de : 1

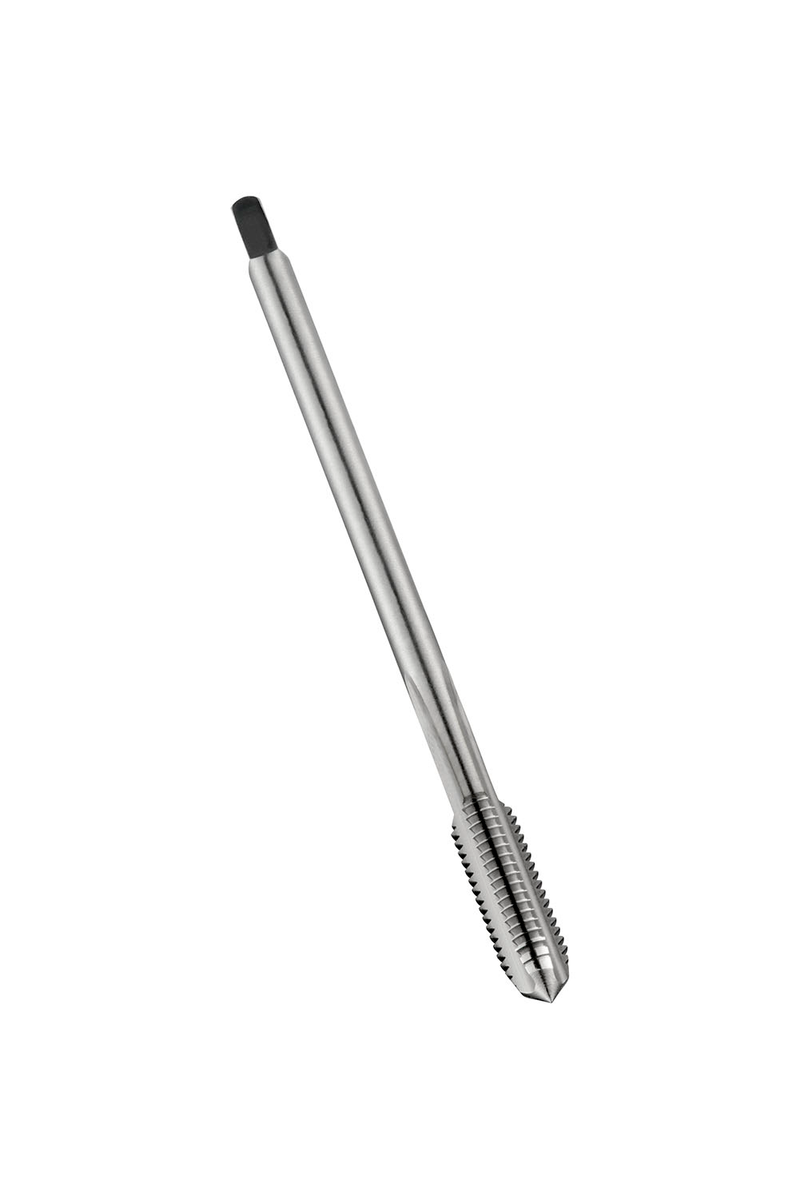

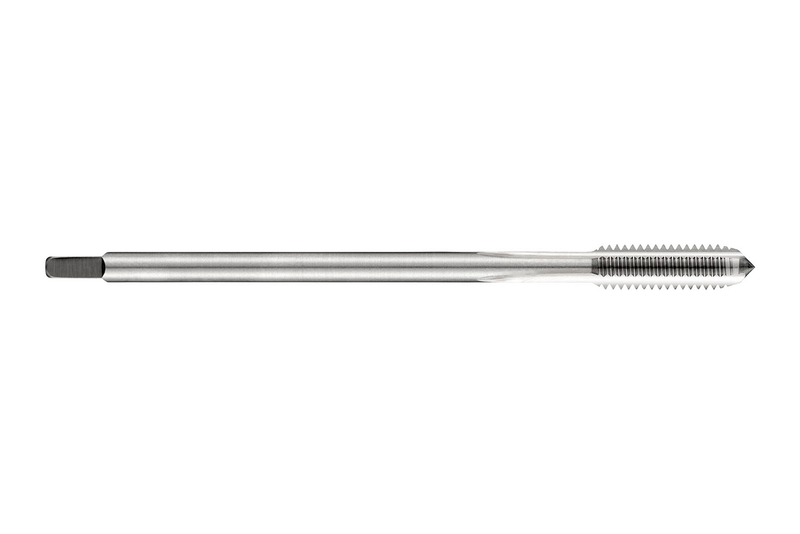

Taraud droit, pour filetage métrique ISO M42 au pas de 4,50 mm et classe de tolérance 6H, dimensions selon la norme DIN 376 avec queue de 32,0 mm et carré d'entraînement de 24,0 mm, en HSS-E issu de la métallurgie des poudres avec finition brillante pour le taraudage de trous traversants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E250M42
GradeLumineux
Product Number5975836
Product FamilyE250
Dimensions
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)42
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)4.5 mm
Thread Pitch — in (TP)0.1772"
Tool Information
ShankTige cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number87107
EAN7320760087107
File Type Download
E250M42 — Line Drawing PDF Download
