UGC DOR5975837
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$414.01 CAD - $414.01 CAD
$414.01 CAD
$414.01 CAD - $414.01 CAD
$414.01 CAD

Vendu en lots de : 1

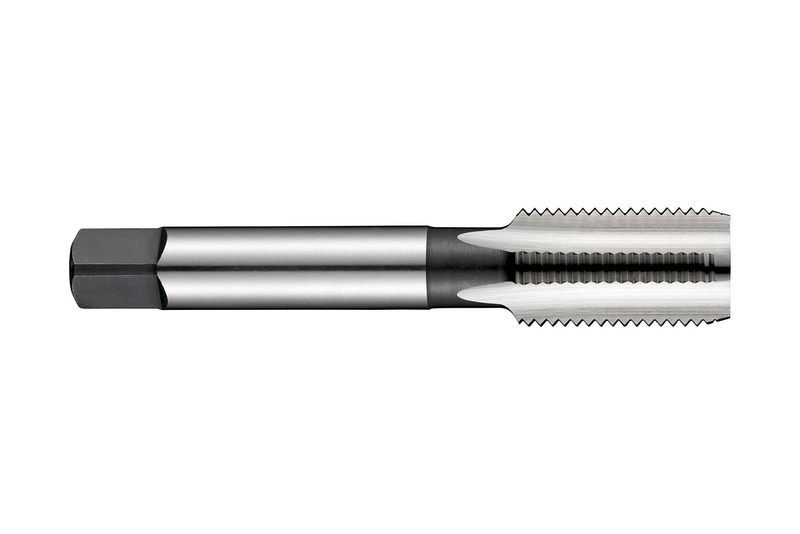

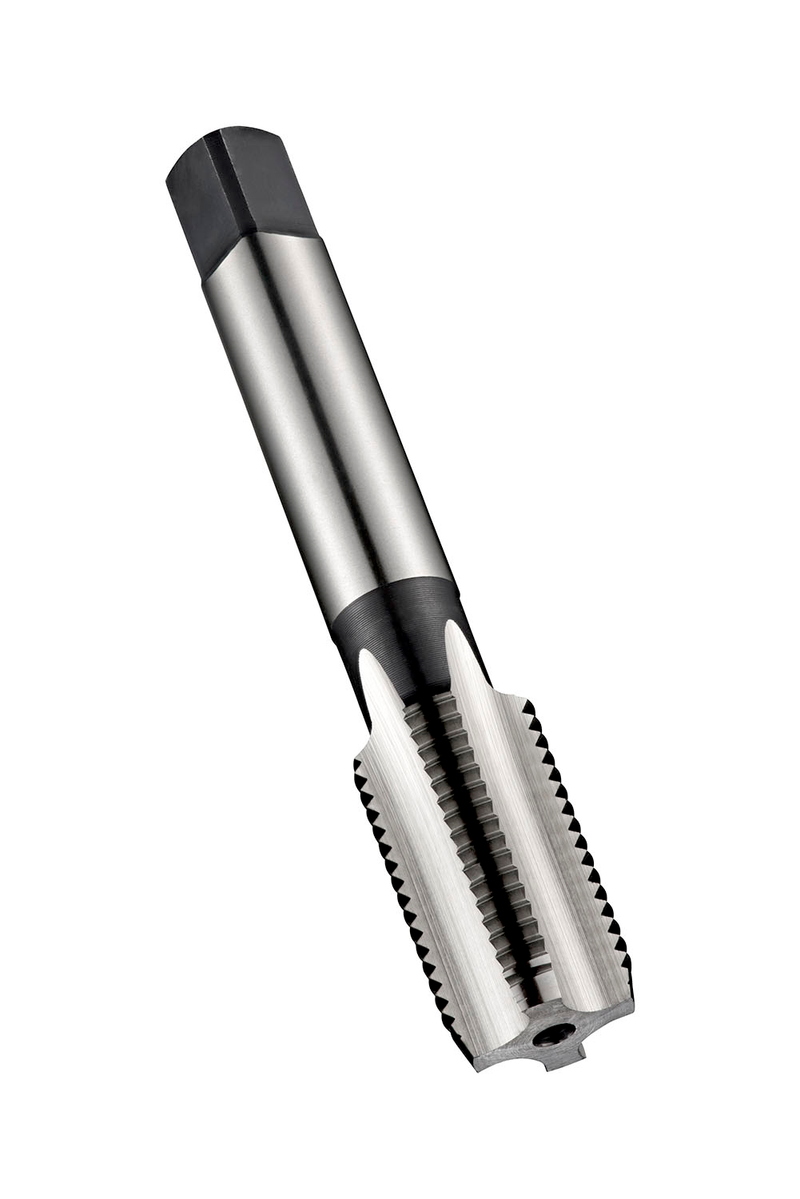

Taraud droit NO3 avec entrée courte 2-3 filets, pour filetage Panzergewinde (filetage de tube acier) PG36 avec 16 filets par pouce et tolérance normale, dimensions selon norme DIN 40432 avec queue de 36.0mm et carré d'entraînement de 29.0mm, HSS poli brillant pour taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage, aciers au carbone non alliés, cuivre et alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E243PG36NO3
GradeLumineux
Product Number5975837
Product FamilyE243

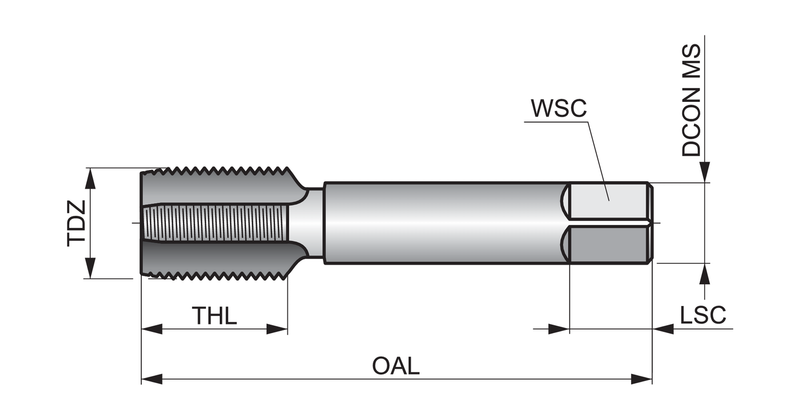

Dimensions
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)1.4173"
Connection Dia. — mm (DCON)36.0 mm
Number of Flutes (NOF)6
Threading
Thread Diameter Size (TDZ)36
Thread Diameter — in (TD)1.8504"
Thread Diameter — mm (TD)47.0 mm
Thread Form (THFT)PG
Threads per Inch (TPI)16.0
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 40432
Reference Numbers
EDP Number86674
EAN7320760086674
File Type Download
E243PG36NO3 — Line Drawing PDF Download
