UGC DOR5975843
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$69.36 CAD - $69.36 CAD
$69.36 CAD
$69.36 CAD - $69.36 CAD
$69.36 CAD

Vendu en lots de : 1

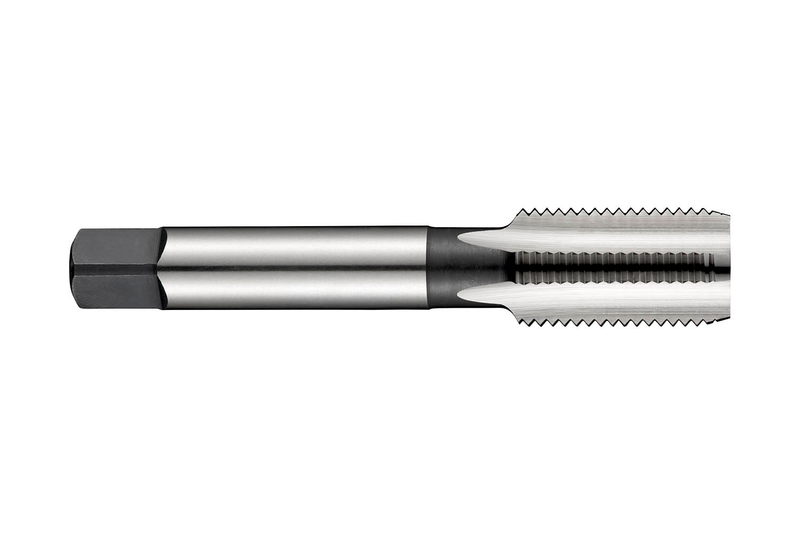

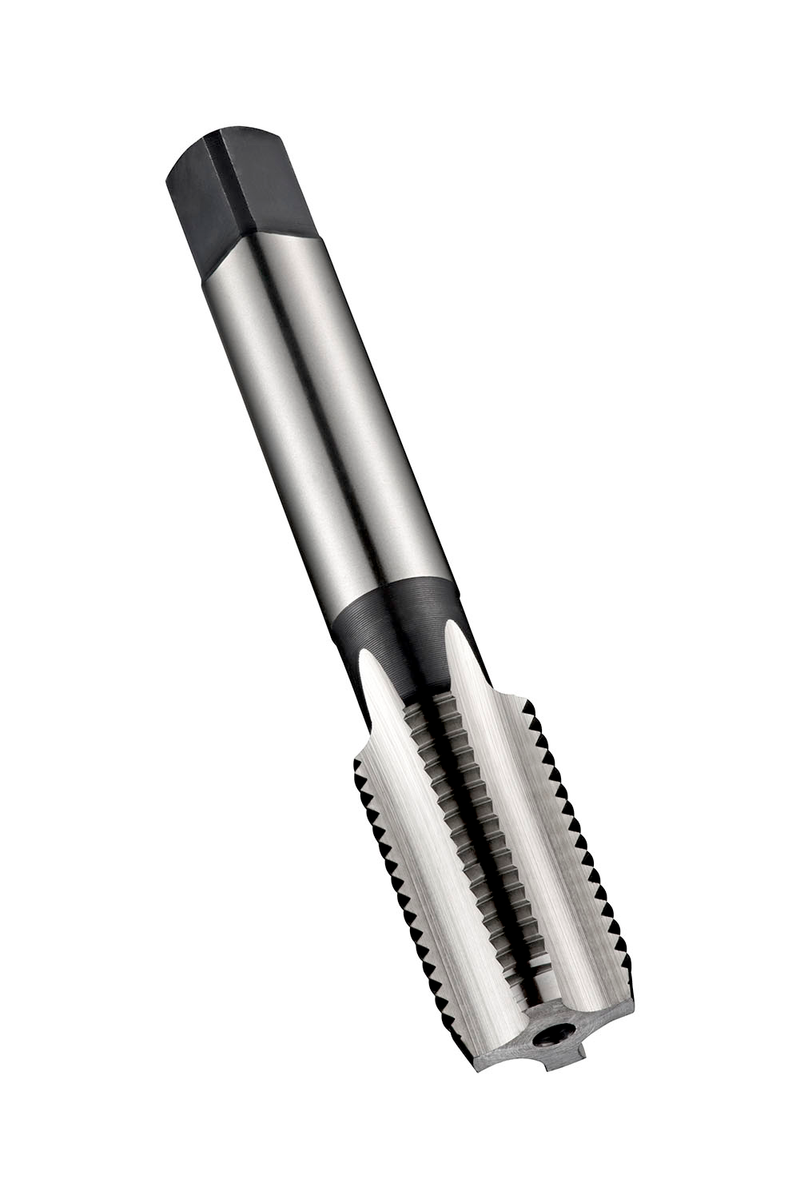

Taraud à gorge droite NO3, entrée courte (2-3xP), pour filetage PG7 Panzergewinde (filetage pour tube acier) avec 20 filets par pouce et classe de tolérance normale, dimensions selon la norme DIN 40432, queue de 9,0 mm et carré d'entraînement de 7,0 mm, HSS, finition brillante, pour le taraudage de trous traversants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E243PG7NO3
GradeLumineux
Product Number5975843
Product FamilyE243

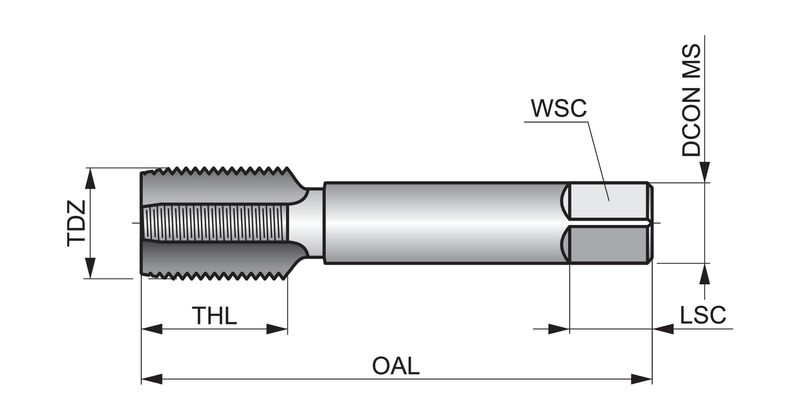

Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)7
Thread Diameter — in (TD)0.4921"
Thread Diameter — mm (TD)12.5 mm
Thread Form (THFT)PG
Threads per Inch (TPI)20.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 40432
Reference Numbers
EDP Number86698
EAN7320760086698
File Type Download
E243PG7NO3 — Line Drawing PDF Download
