UGC DOR5975850
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$83.96 CAD - $83.96 CAD
$83.96 CAD
$83.96 CAD - $83.96 CAD
$83.96 CAD

Vendu en lots de : 1

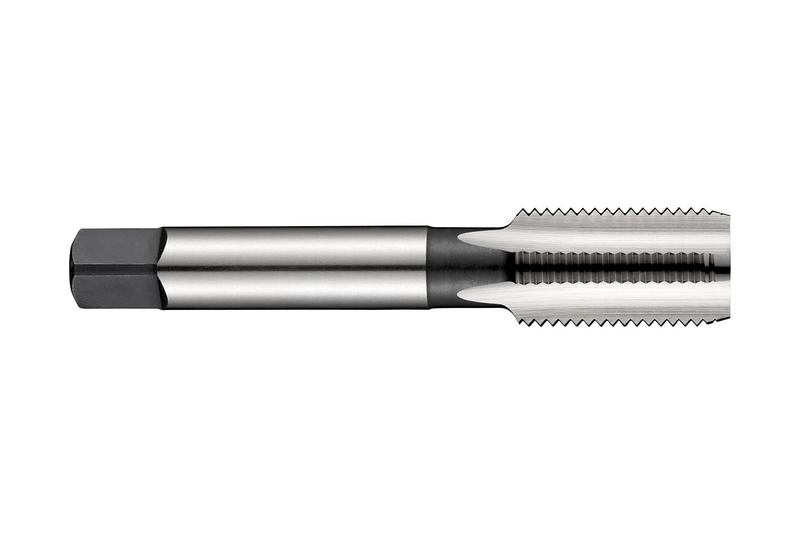

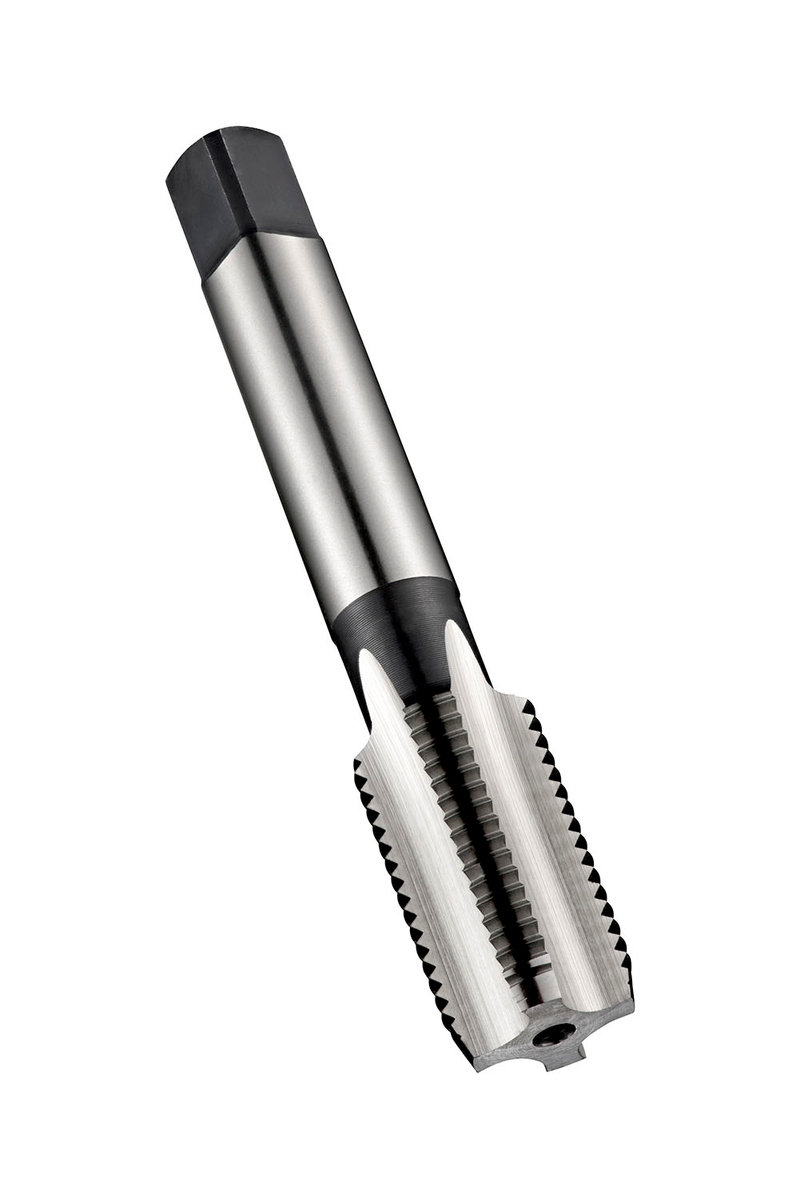

Taraud droit NO3 à entrée courte 2-3 filets, pour Panzergewinde (filetage de conduit d'acier) PG9 avec 18 filets par pouce et classe de tolérance normale, dimensions selon la norme DIN 40432 avec queue de 12,0 mm et carré d'entraînement de 9,0 mm, HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E243PG9NO3
GradeLumineux
Product Number5975850
Product FamilyE243

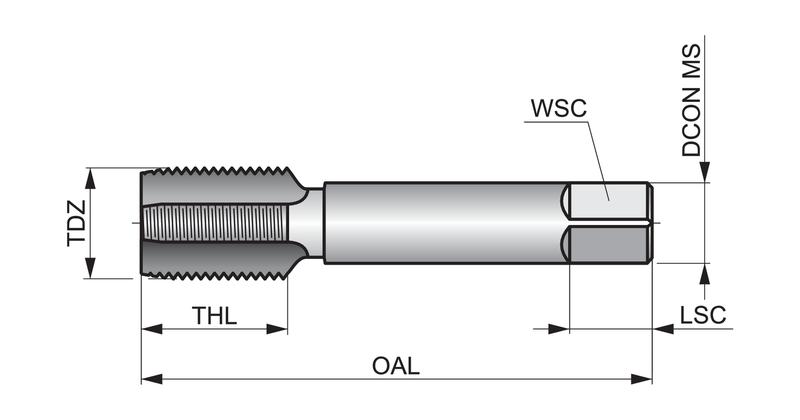

Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)9
Thread Diameter — in (TD)0.5984"
Thread Diameter — mm (TD)15.2 mm
Thread Form (THFT)PG
Threads per Inch (TPI)18.0
Tool Information
ShankTige cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardDIN 40432
Reference Numbers
EDP Number86711
EAN7320760086711
File Type Download
E243PG9NO3 — Line Drawing PDF Download
