UGC DOR5975854
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.39 CAD - $26.39 CAD
$26.39 CAD
$26.39 CAD - $26.39 CAD
$26.39 CAD

Vendu en lots de : 1

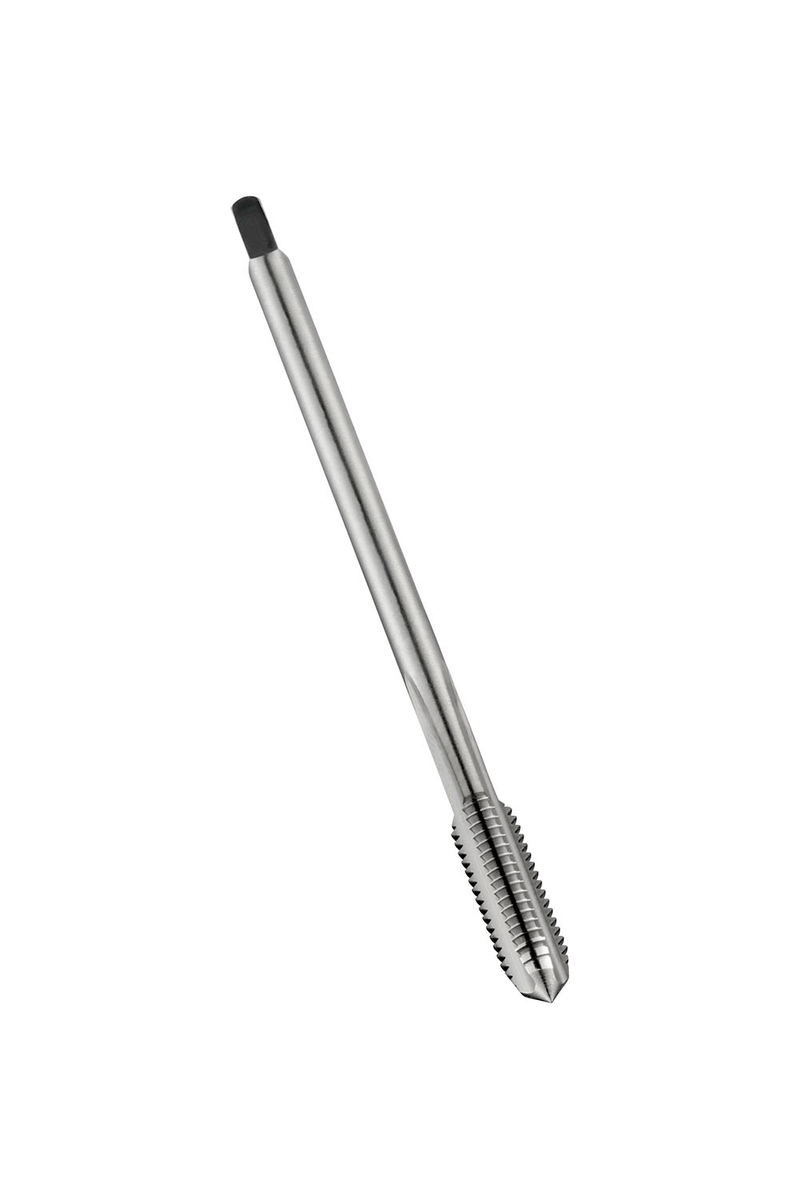

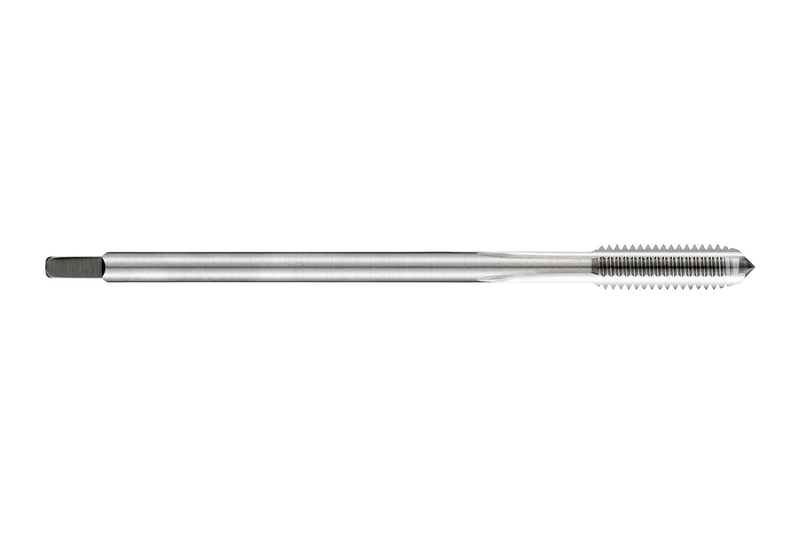

Taraud droit, pour filetage ISO-métrique M5 au pas de 0,80 mm et classe de tolérance 6H, dimensions selon la norme DIN 376 avec queue de 3,5 mm et carré d'entraînement de 2,7 mm, en HSS-E issu de la métallurgie des poudres avec finition brillante pour le taraudage de trous débouchants ou borgnes de 1,5xD dans l'acier de décolletage et l'acier au carbone non allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E250M5
GradeLumineux
Product Number5975854
Product FamilyE250
Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.1378"
Connection Dia. — mm (DCON)3.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)M - Métrique à pas gros
Thread Pitch — mm (TP)0.8 mm
Thread Pitch — in (TP)0.0315"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number87138
EAN7320760087138
File Type Download
E250M5 — Line Drawing PDF Download
