E200M2,5
E200M2,5
E200M2,5

E200M2,5

UGC DOR5975888
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.04 CAD - $29.04 CAD
$29.04 CAD
$29.04 CAD - $29.04 CAD
$29.04 CAD

Vendu en lots de : 1

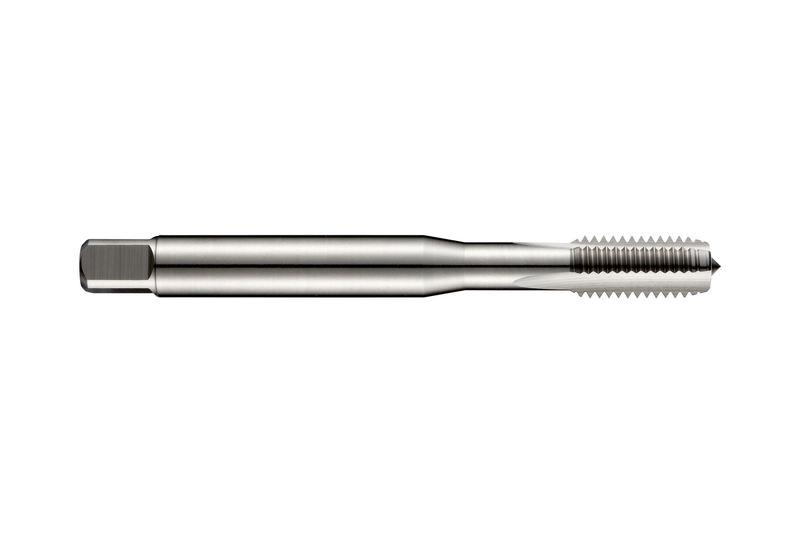

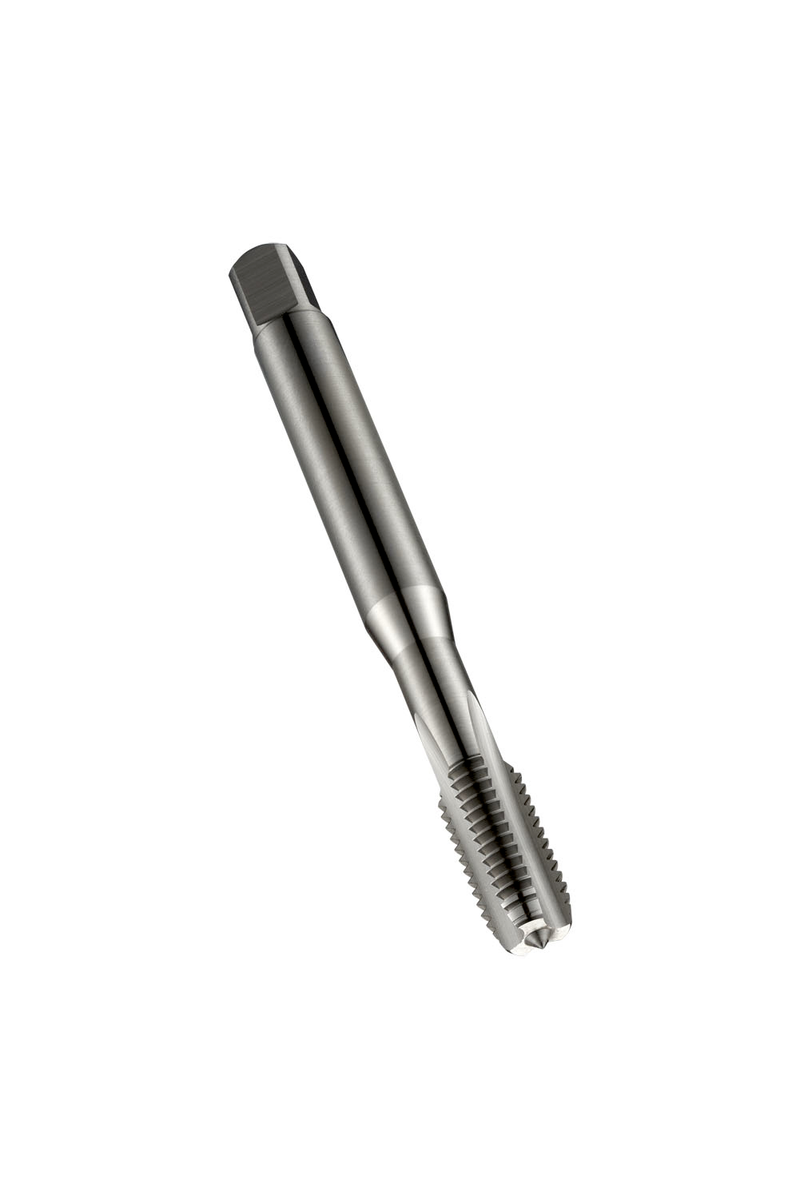

Taraud droit avec chanfrein forme C, 2-3 filets, pour filet métrique ISO M2,5 au pas de 0,45 mm et classe de tolérance 6H, dimensions selon la norme DIN 371 avec queue de 2,8 mm et carré d'entraînement de 2,1 mm, en HSS-E (acier rapide à haute teneur en cobalt) PM, finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI)E200M2,5
Product Name (ISO)E200M2.5
GradeLumineux
Product Number5975888
Product FamilyE200

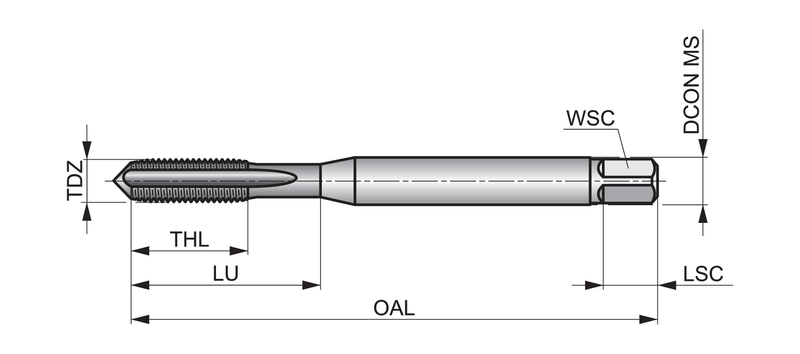

Dimensions
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.4921"
Usable Length — mm (LU)12.5 mm
Connection Dia. — in (DCON)0.1102"
Connection Dia. — mm (DCON)2.8 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)2.5
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.45 mm
Thread Pitch — in (TP)0.0177"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number85103
EAN7320760085103
File Type Download
E200M2,5 — Line Drawing PDF Download
