E290M14X1.0
E290M14X1.0
E290M14X1.0

E290M14X1.0

UGC DOR5975932
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$114.71 CAD - $114.71 CAD
$114.71 CAD
$114.71 CAD - $114.71 CAD
$114.71 CAD

Vendu en lots de : 1

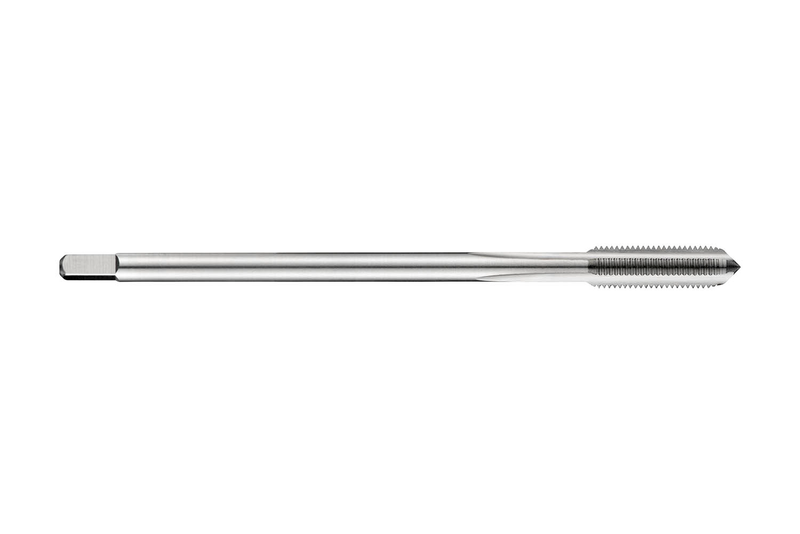

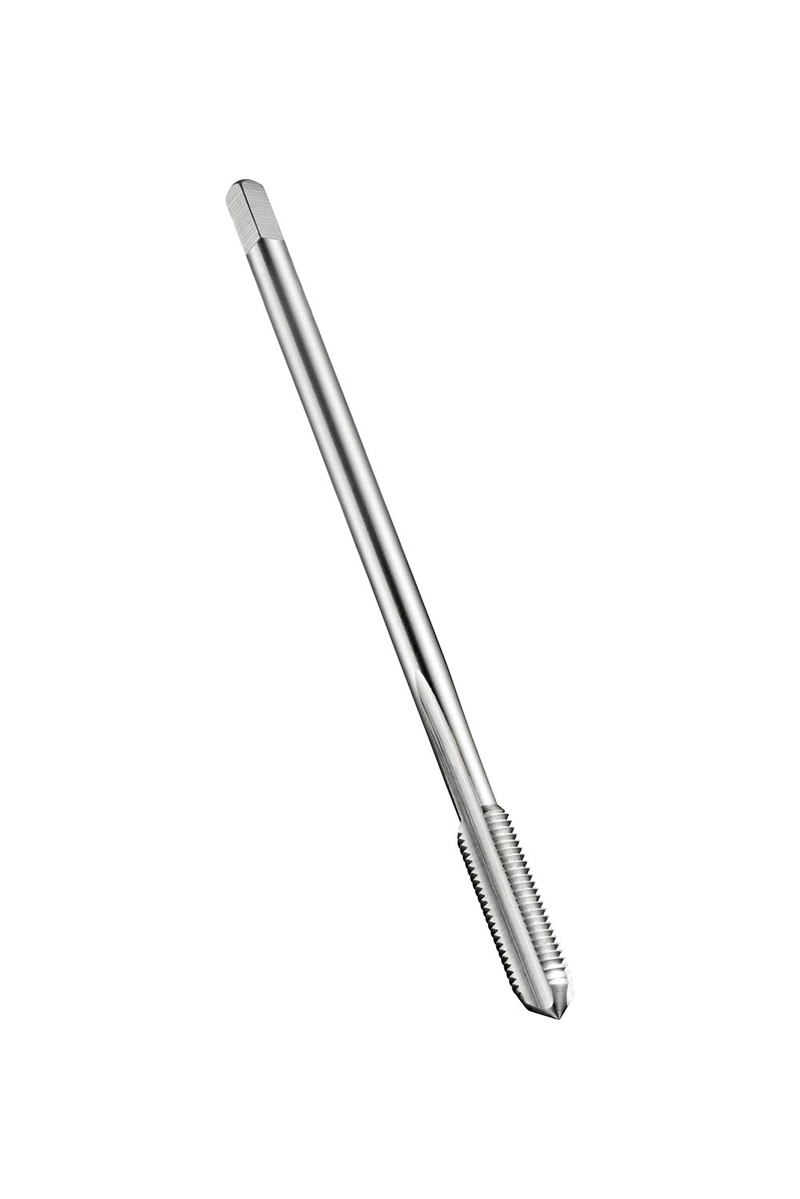

Taraud droit forme C avec entrée 2-3 filets, pour filetage métrique fin ISO à gauche M14 au pas de 1,00 mm et classe de tolérance 6H, dimensions selon la norme DIN 374 avec queue de 11,0 mm et carré d'entraînement de 9,0 mm, en HSS-E fritté, finition brillante, pour le taraudage de trous traversants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E290M14X1.0
GradeLumineux
Product Number5975932
Product FamilyE290

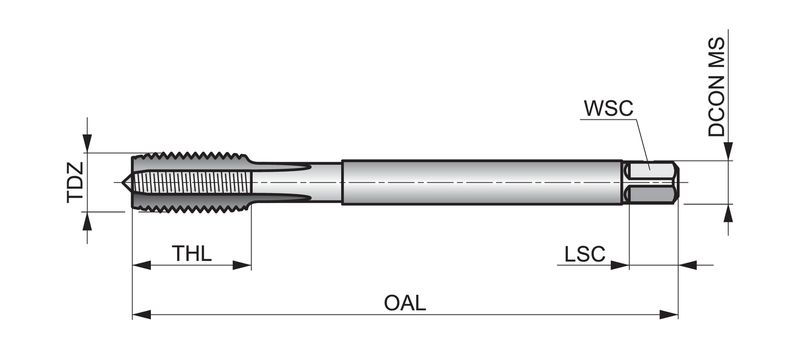

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)14
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankTige cylindrique à carré
Direction of ToolGauche
StandardDIN 374
Reference Numbers
EDP Number167403
EAN7320760167403
File Type Download
E290M14X1.0 — Line Drawing PDF Download
