E250M12
E250M12
E250M12

E250M12

UGC DOR5975935
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$40.61 CAD - $40.61 CAD
$40.61 CAD
$40.61 CAD - $40.61 CAD
$40.61 CAD

Vendu en lots de : 1

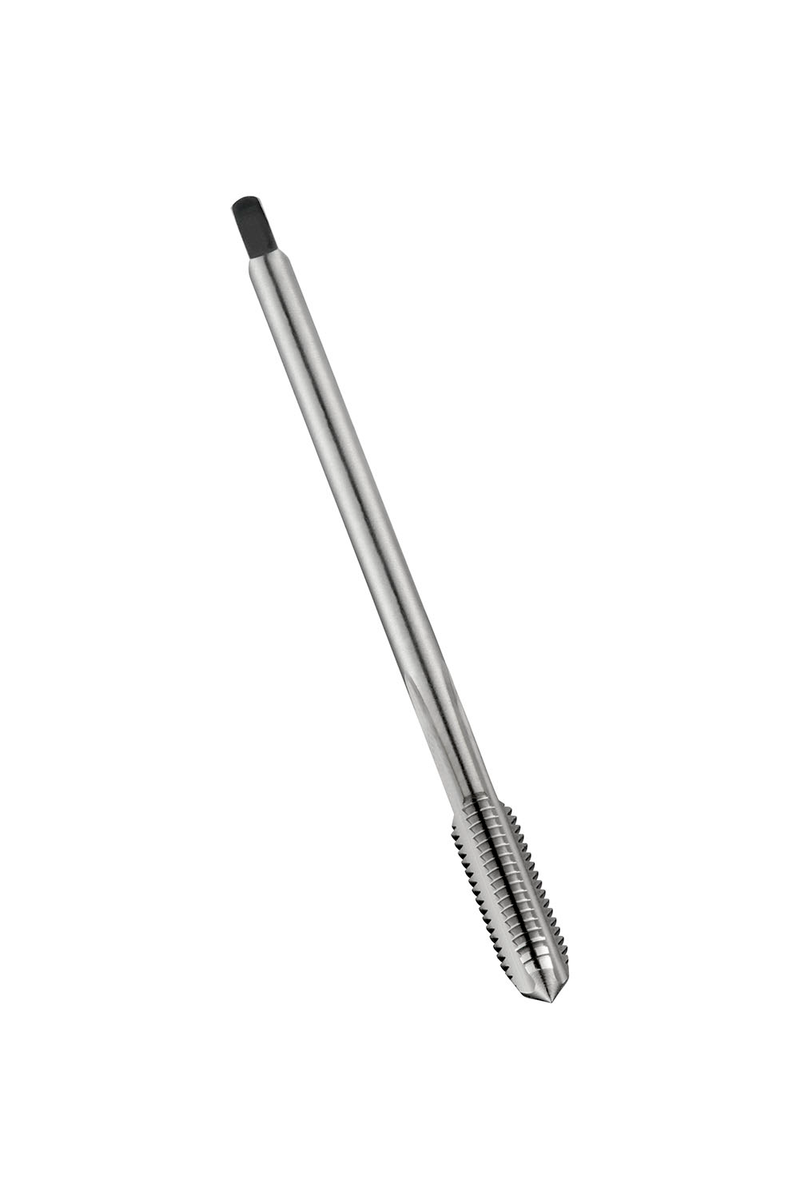

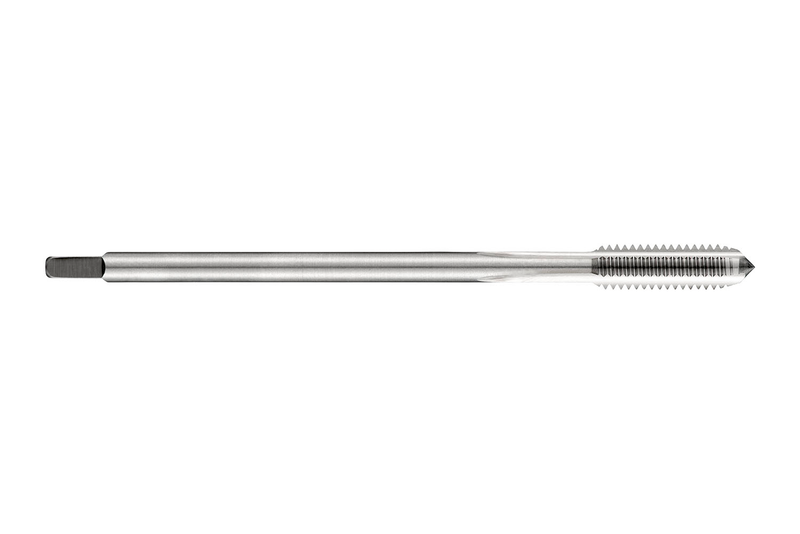

Taraud droit, pour filetage ISO-métrique M12 au pas de 1,75 mm et classe de tolérance 6H, dimensions conformes à la norme DIN 376 avec queue de 9,0 mm et carré d'entraînement de 7,0 mm, en HSS-E (acier rapide fritté) avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E250M12
GradeLumineux
Product Number5975935
Product FamilyE250
Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.75 mm
Thread Pitch — in (TP)0.0689"
Tool Information
ShankTige cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number86957
EAN7320760086957
File Type Download

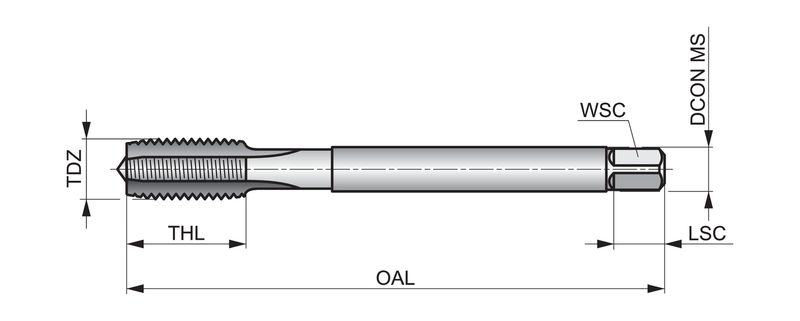

E250M12 — Line Drawing PDF Download
