E303M6NO3
E303M6NO3
E303M6NO3

E303M6NO3

UGC DOR5976058
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.14 CAD - $46.14 CAD
$46.14 CAD
$46.14 CAD - $46.14 CAD
$46.14 CAD

Vendu en lots de : 1

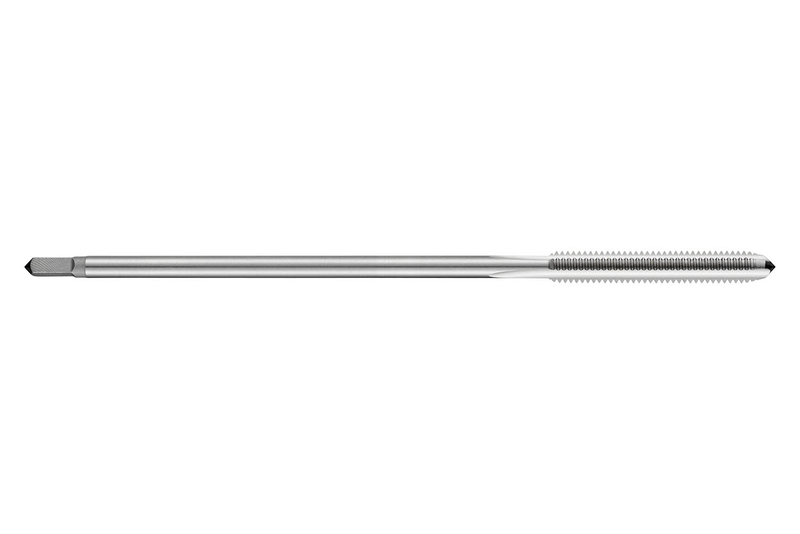

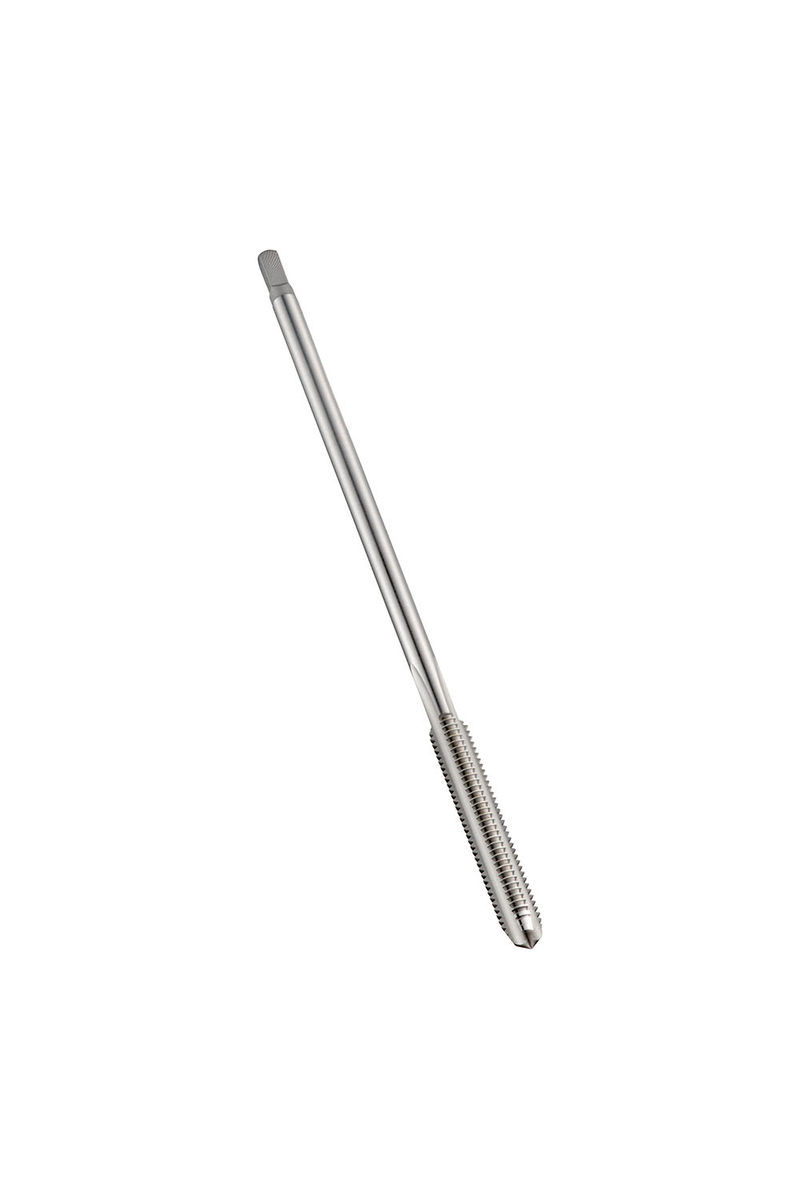

Taraud droit à écrou NO3 avec entrée progressive 2-3xP, pour filetage ISO-Métrique M6 au pas de 1,00 mm et classe de tolérance 6H, dimensions selon norme DIN 357 avec queue de 4,5mm et carré d'entraînement de 3,4mm, HSS-E cobalté avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 2xD dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E303M6NO3
GradeLumineux
Product Number5976058
Product FamilyE303

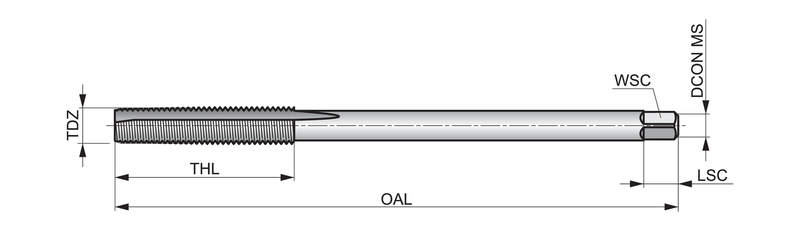

Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique à entraînement carré
Direction of ToolD'accord
StandardDIN 357
Reference Numbers
EDP Number90428
EAN7320760090428
File Type Download
E303M6NO3 — Line Drawing PDF Download
