E5244-48NO3
E5244-48NO3
E5244-48NO3

E5244-48NO3

UGC DOR5976071
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.93 CAD - $33.93 CAD
$33.93 CAD
$33.93 CAD - $33.93 CAD
$33.93 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée courte 2-3 filets, pour filetages Unified National Fine UNF 4 avec 48 TPI et classe de tolérance 2B, dimensions conformes à la norme ISO 529 avec queue de 3,15 mm et carré d'entraînement de 2,5 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans l'acier de décolletage, l'acier au carbone non allié et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5244-48NO3
GradeLumineux
Product Number5976071
Product FamilyE524

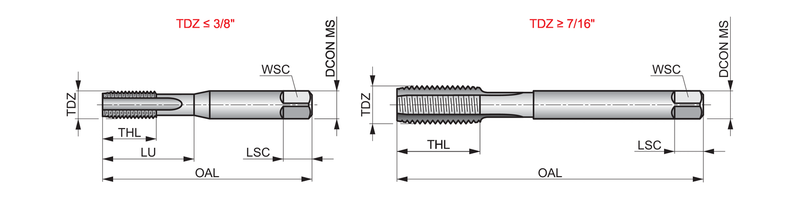

Dimensions
Overall Length — in (OAL)1.8898"
Overall Length — mm (OAL)48.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.4921"
Usable Length — mm (LU)12.5 mm
Connection Dia. — in (DCON)0.124"
Connection Dia. — mm (DCON)3.15 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)4
Thread Diameter — in (TD)0.112"
Thread Diameter — mm (TD)2.845 mm
Thread Form (THFT)UNF - Filetage Unifié Fin
Threads per Inch (TPI)48.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number98028
EAN7320760098028
File Type Download
E5244-48NO3 — Line Drawing PDF Download
