E303M8NO3
E303M8NO3
E303M8NO3

E303M8NO3

UGC DOR5976073
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.33 CAD - $49.33 CAD
$49.33 CAD
$49.33 CAD - $49.33 CAD
$49.33 CAD

Vendu en lots de : 1

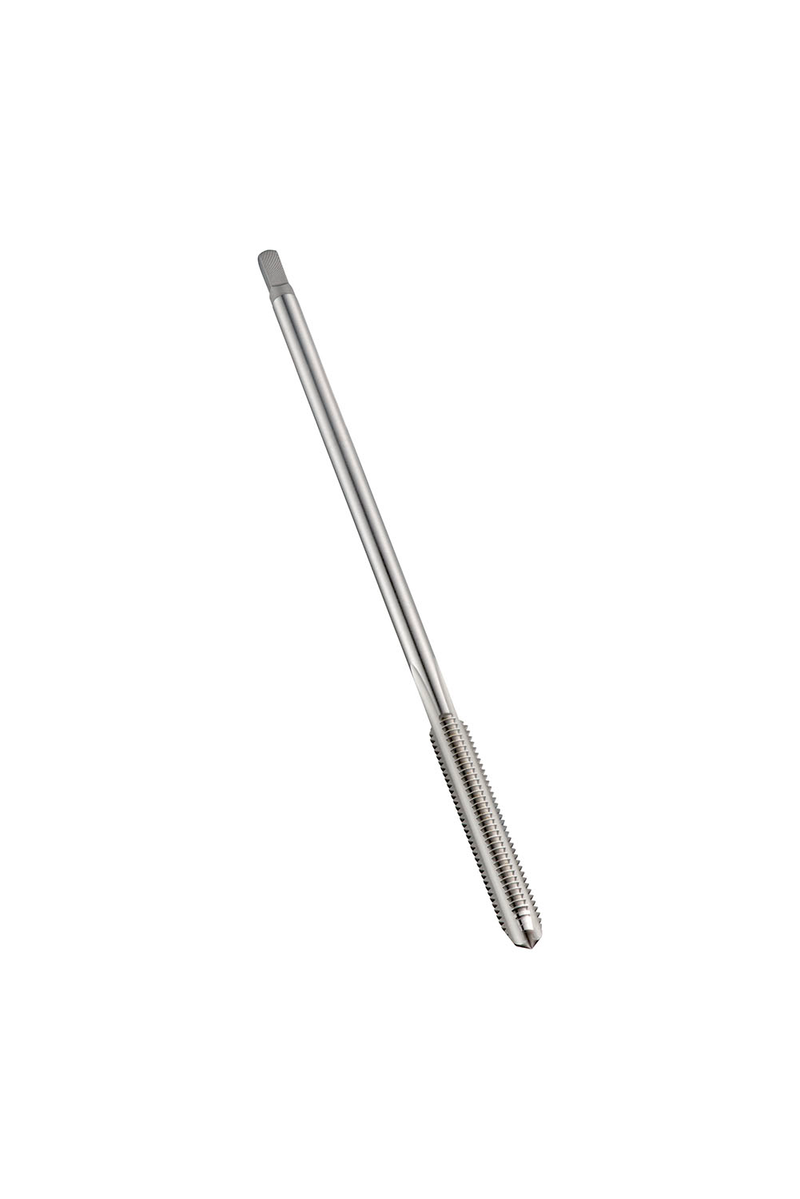

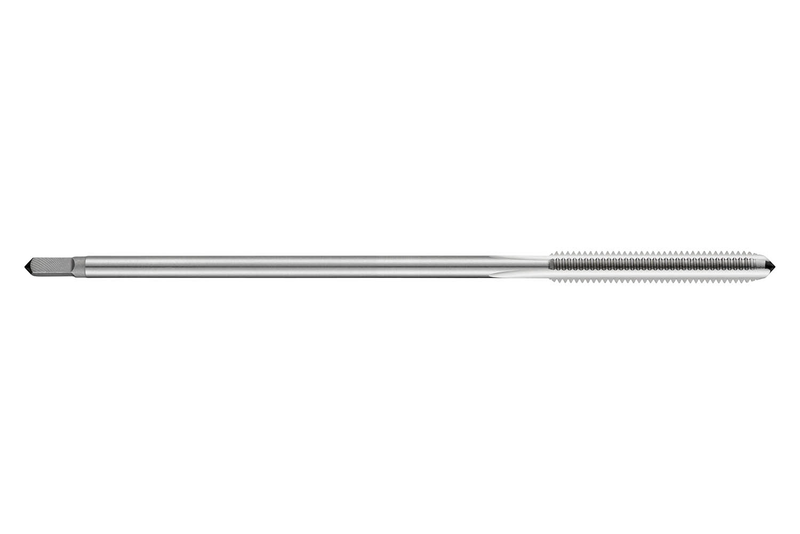

Taraud machine à goujures droites NO3 avec entrée courte 2-3xP, pour filet ISO-Métrique M8 au pas de 1,25 mm et de classe de tolérance 6H, dimensions selon la norme DIN 357 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en HSS-E cobalt avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 2xD dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E303M8NO3
GradeLumineux
Product Number5976073
Product FamilyE303

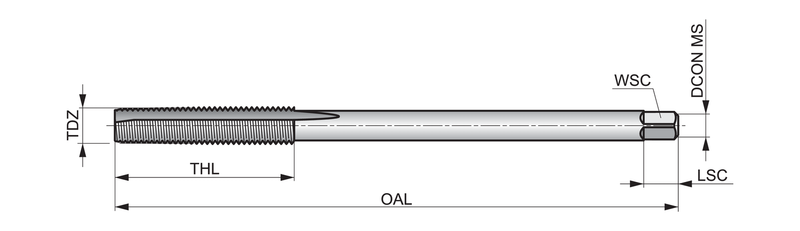

Dimensions
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique à entraînement carré
Direction of ToolD'accord
StandardDIN 357
Reference Numbers
EDP Number90442
EAN7320760090442
File Type Download
E303M8NO3 — Line Drawing PDF Download
