E5245/16NO3
E5245/16NO3
E5245/16NO3

E5245/16NO3

UGC DOR5976103
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.59 CAD - $24.59 CAD
$24.59 CAD
$24.59 CAD - $24.59 CAD
$24.59 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée courte de 2-3xP, pour filetage Unified National Fine UNF 5/16" avec 24 filets par pouce et classe de tolérance 2B, dimensions selon la norme ISO 529 avec queue de 8,0 mm et carré d'entraînement de 6,3 mm, HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5245/16NO3
GradeLumineux
Product Number5976103
Product FamilyE524

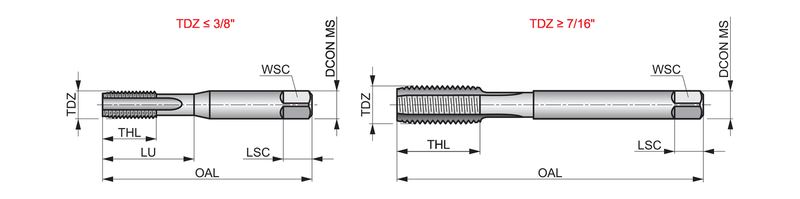

Dimensions
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.1417"
Usable Length — mm (LU)29.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16 mai
Thread Diameter — in (TD)0.3125"
Thread Diameter — mm (TD)7.938 mm
Thread Form (THFT)UNF - Unifié fin
Threads per Inch (TPI)24.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number98066
EAN7320760098066
File Type Download
E5245/16NO3 — Line Drawing PDF Download
