E5243/4NO3
E5243/4NO3
E5243/4NO3

E5243/4NO3

UGC DOR5976108
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$86.69 CAD - $86.69 CAD
$86.69 CAD
$86.69 CAD - $86.69 CAD
$86.69 CAD

Vendu en lots de : 1

Taraud à main à flûte droite NO3 avec entrée courte 2-3xP, pour filetages Unified National Fine UNF 3/4" avec 16 TPI et classe de tolérance 2B, dimensions selon la norme ISO 529 avec queue de 14,0 mm et carré d'entraînement de 11,2 mm, en HSS avec finition brillante pour le taraudage de trous traversants ou borgnes jusqu'à 1,5xD dans les aciers à usinage libre, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5243/4NO3
GradeLumineux
Product Number5976108
Product FamilyE524

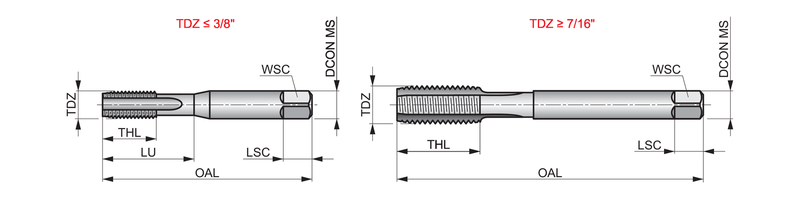

Dimensions
Overall Length — in (OAL)4.4094"
Overall Length — mm (OAL)112.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)3/4
Thread Diameter — in (TD)0.75"
Thread Diameter — mm (TD)19.05 mm
Thread Form (THFT)UNF - Filets fins unifiés
Threads per Inch (TPI)16.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number97984
EAN7320760097984
File Type Download
E5243/4NO3 — Line Drawing PDF Download
