UGC DOR5976132
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$40.57 CAD - $40.57 CAD
$40.57 CAD
$40.57 CAD - $40.57 CAD
$40.57 CAD

Vendu en lots de : 1

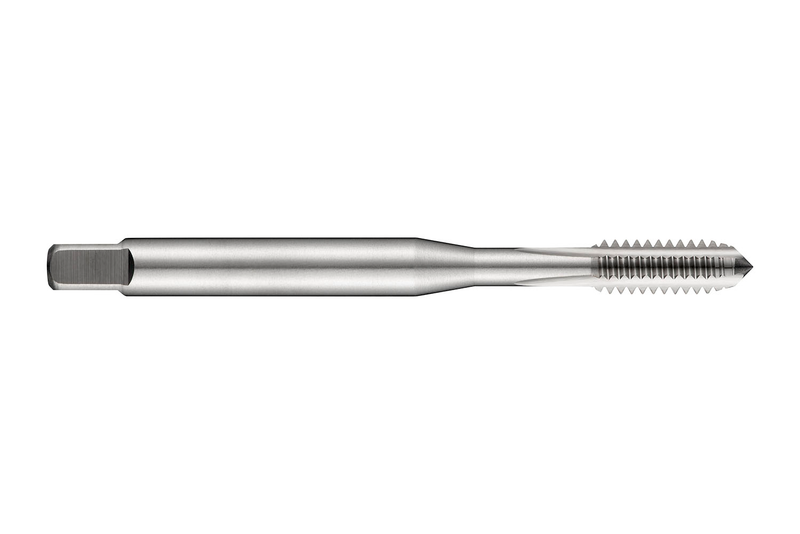

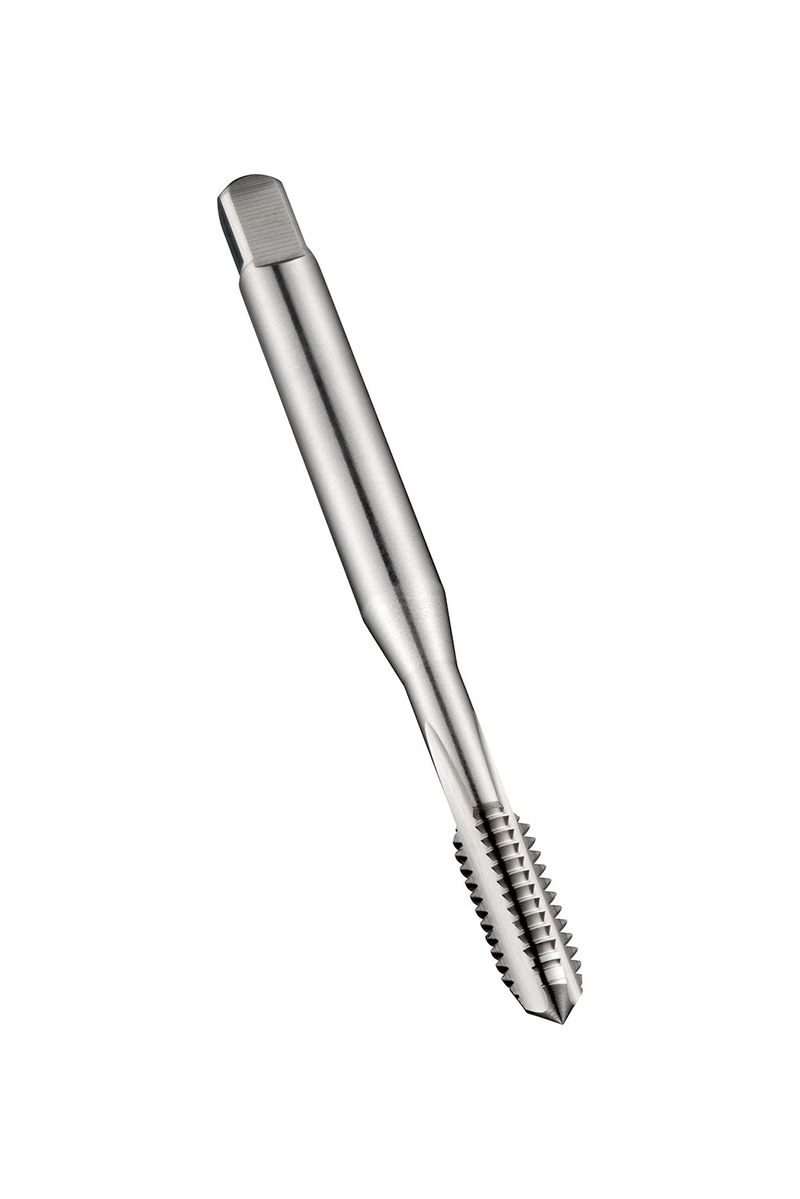

Taraud droit forme C avec entrée 2-3xP pour filet UNF (Unified National Fine) 10 avec 32 filets par pouce et tolérance 2B, dimensions selon norme DIN 371 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en HSS-E produit par métallurgie des poudres, finition brillante pour taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E22910-32
GradeLumineux
Product Number5976132
Product FamilyE229

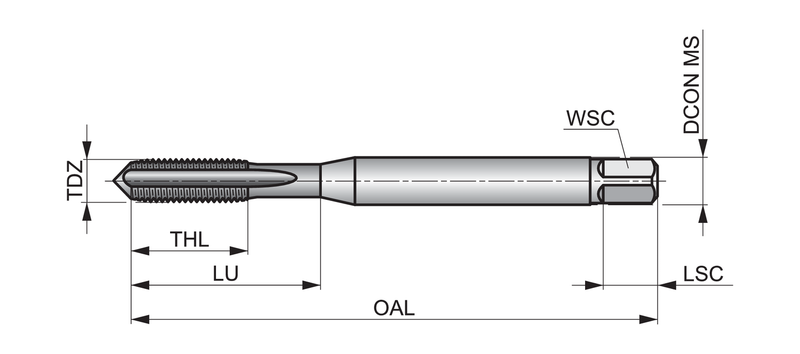

Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.9843"
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Diameter — in (TD)0.19"
Thread Diameter — mm (TD)4.826 mm
Thread Form (THFT)UNF - Amendes Unifiées
Threads per Inch (TPI)32.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number86292
EAN7320760086292
File Type Download
E22910-32 — Line Drawing PDF Download
