E22912-28
E22912-28
E22912-28

E22912-28

UGC DOR5976136
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$40.67 CAD - $40.67 CAD
$40.67 CAD
$40.67 CAD - $40.67 CAD
$40.67 CAD

Vendu en lots de : 1

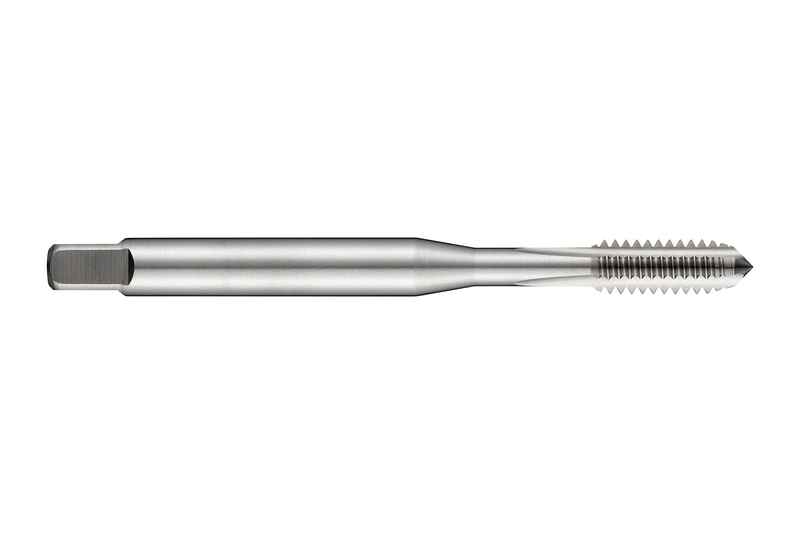

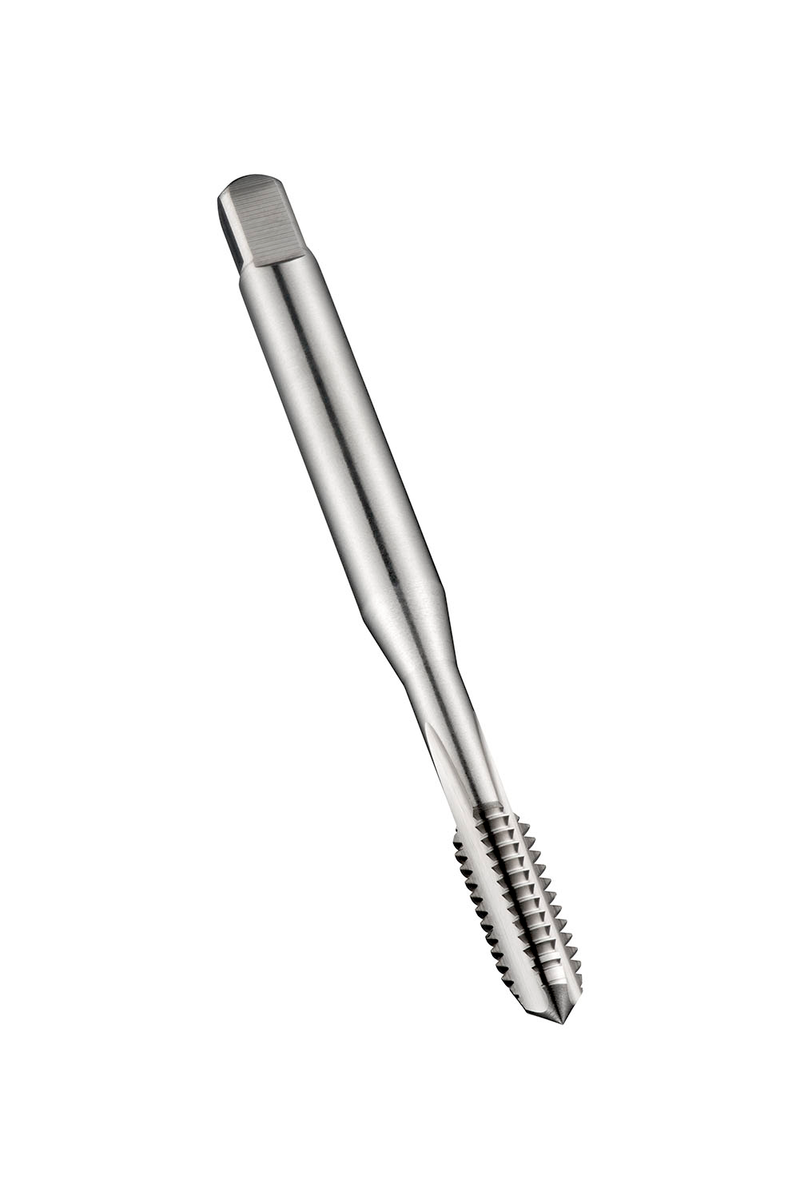

Taraud droit avec chanfrein forme C et entrée 2-3xP, pour filetage Unified National Fine UNF 12 avec 28 filets par pouce et classe de tolérance 2B, dimensions selon la norme DIN 371 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en HSS-E métallurgie des poudres avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans l'acier de décolletage et l'acier au carbone non allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E22912-28
GradeLumineux
Product Number5976136
Product FamilyE229

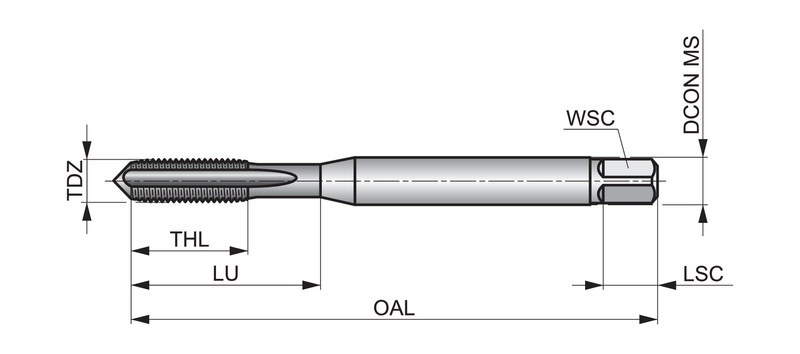

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.1811"
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)12
Thread Diameter — in (TD)0.216"
Thread Diameter — mm (TD)5.486 mm
Thread Form (THFT)UNF - Filetage Unifié fin
Threads per Inch (TPI)28.0
Tool Information
ShankTige cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number86308
EAN7320760086308
File Type Download
E22912-28 — Line Drawing PDF Download
