E5247/16NO1
E5247/16NO1
E5247/16NO1

E5247/16NO1

UGC DOR5976146
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$44.40 CAD - $44.40 CAD
$44.40 CAD
$44.40 CAD - $44.40 CAD
$44.40 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO1 avec une entrée conique de 6-8xP, pour filetage Unified National Fine UNF 7/16" avec 20 filets par pouce et classe de tolérance 2B, dimensions selon la norme ISO 529 avec queue de 8,0mm et carré d'entraînement de 6,3mm, HSS avec finition brillante pour taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile, les aciers au carbone non alliés, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5247/16NO1
GradeLumineux
Product Number5976146
Product FamilyE524

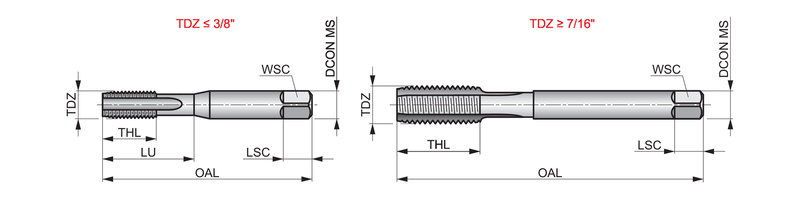

Dimensions
Overall Length — in (OAL)3.3465"
Overall Length — mm (OAL)85.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16/7
Thread Diameter — in (TD)0.4375"
Thread Diameter — mm (TD)11.112 mm
Thread Form (THFT)UNF - Unifié fin
Threads per Inch (TPI)20.0
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number153451
EAN7320760153451
File Type Download
E5247/16NO1 — Line Drawing PDF Download
