UGC DOR5976165
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.33 CAD - $38.33 CAD
$38.33 CAD
$38.33 CAD - $38.33 CAD
$38.33 CAD

Vendu en lots de : 1

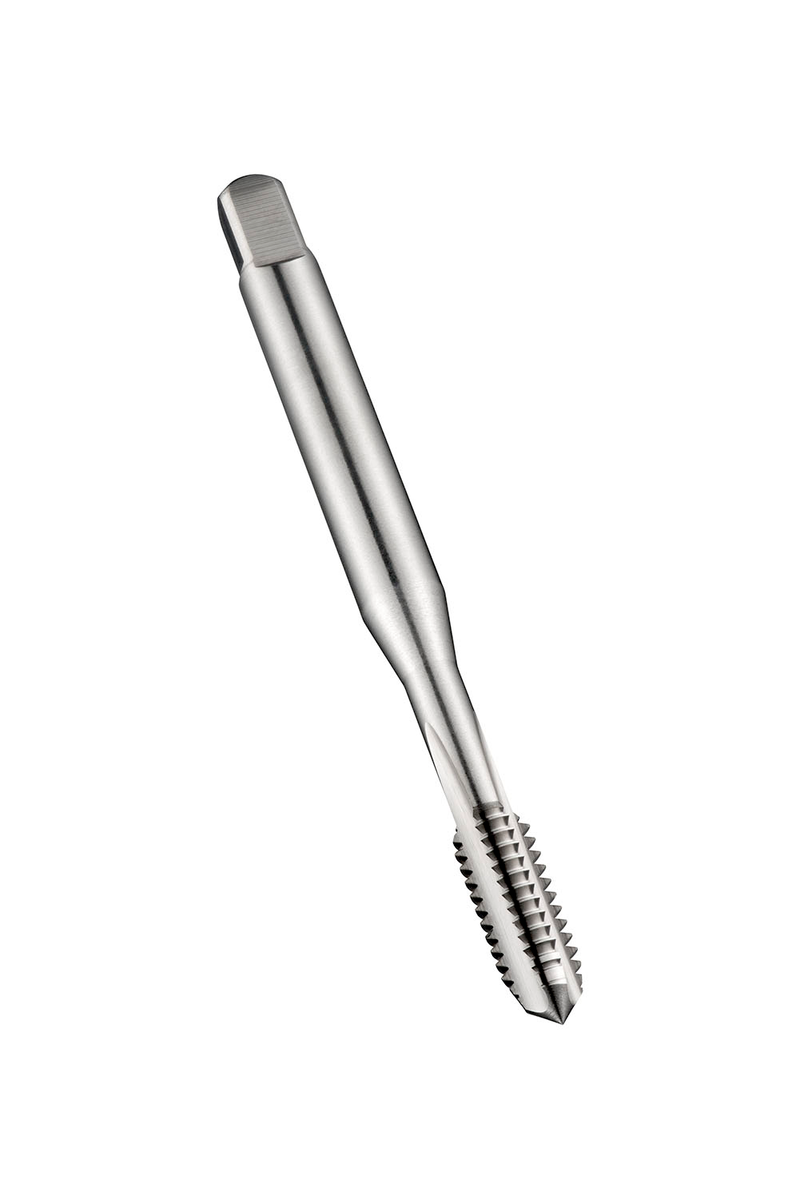

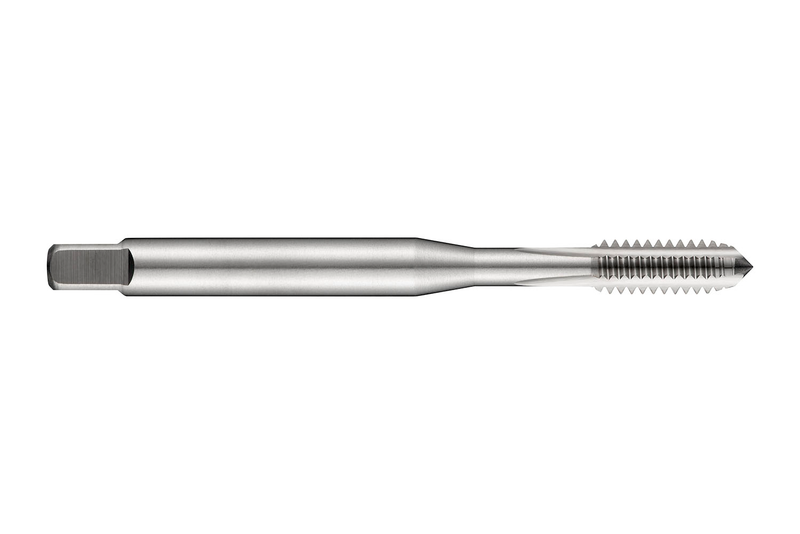

Taraud droit avec chanfrein forme C et entrée progressive 2-3xP, pour filetage unifié national fin UNF 8 avec 36 filets par pouce et classe de tolérance 2B, dimensions selon la norme DIN 371 avec queue de 4,5mm et carré d'entraînement de 3,4mm, HSS-E métallurgie des poudres avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E2298-36
GradeLumineux
Product Number5976165
Product FamilyE229

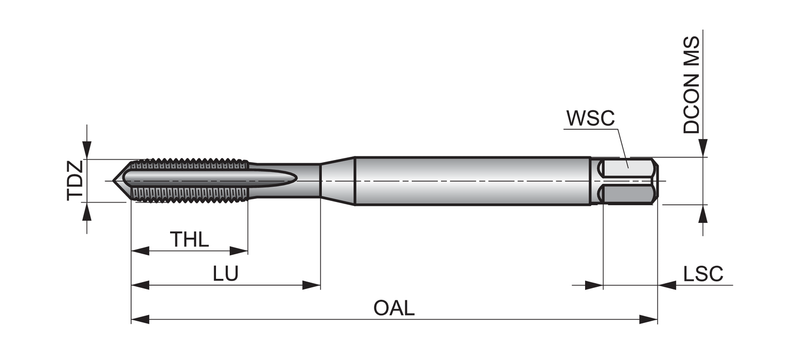

Dimensions
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.8268"
Usable Length — mm (LU)21.0 mm
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)8
Thread Diameter — in (TD)0.164"
Thread Diameter — mm (TD)4.166 mm
Thread Form (THFT)UNF - Unified Fine
Threads per Inch (TPI)36.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number86391
EAN7320760086391
File Type Download
E2298-36 — Line Drawing PDF Download
