E5248-36NO1
E5248-36NO1
E5248-36NO1

E5248-36NO1

UGC DOR5976180
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.51 CAD - $21.51 CAD
$21.51 CAD
$21.51 CAD - $21.51 CAD
$21.51 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO1 avec entrée conique 6-8xP, pour filetage Unified National Fine UNF 8 avec 36 filets par pouce et classe de tolérance 2B, dimensions conformes à la norme ISO 529 avec queue de 4,5mm et carré d'entraînement de 3,55mm, HSS avec finition brillante pour le filetage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés, ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5248-36NO1
GradeLumineux
Product Number5976180
Product FamilyE524

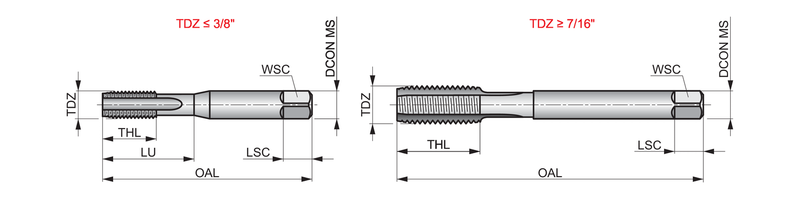

Dimensions
Overall Length — in (OAL)2.0866"
Overall Length — mm (OAL)53.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.6693"
Usable Length — mm (LU)17.0 mm
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)8
Thread Diameter — in (TD)0.164"
Thread Diameter — mm (TD)4.166 mm
Thread Form (THFT)UNF - Pas fin uni
Threads per Inch (TPI)36.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number153574
EAN7320760153574
File Type Download
E5248-36NO1 — Line Drawing PDF Download
