E5241.1/2NO3
E5241.1/2NO3
E5241.1/2NO3

E5241.1/2NO3

UGC DOR5976240
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$479.41 CAD - $479.41 CAD
$479.41 CAD
$479.41 CAD - $479.41 CAD
$479.41 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets), pour filet UNF (Unified National Fine) 1.1/2" avec 12 filets par pouce et classe de tolérance 2B, dimensions conformes à la norme ISO 529 avec queue de 28,0 mm et carré d'entraînement de 22,4 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile et au carbone, ainsi que le cuivre et ses alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5241.1/2NO3
GradeLumineux
Product Number5976240
Product FamilyE524

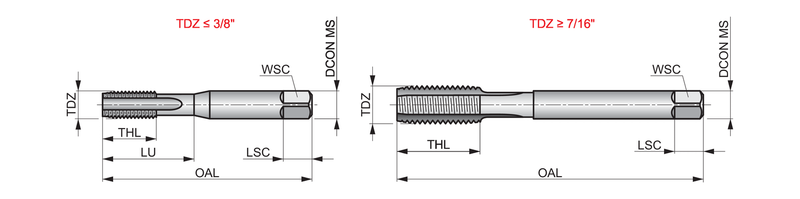

Dimensions
Overall Length — in (OAL)6.6929"
Overall Length — mm (OAL)170.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)1.1024"
Connection Dia. — mm (DCON)28.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1 et demi
Thread Diameter — in (TD)1.5"
Thread Diameter — mm (TD)38.1 mm
Thread Form (THFT)UNF - Unifié fin
Threads per Inch (TPI)12.0
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number97779
EAN7320760097779
File Type Download
E5241.1/2NO3 — Line Drawing PDF Download
