E5241.1/4NO3
E5241.1/4NO3
E5241.1/4NO3

E5241.1/4NO3

UGC DOR5976246
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$346.21 CAD - $346.21 CAD
$346.21 CAD
$346.21 CAD - $346.21 CAD
$346.21 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3, entrée béquille courte 2-3 filets, pour filetage Unified National Fine UNF 1.1/4" avec 12 filets par pouce et classe de tolérance 2B, dimensions conformes à la norme ISO 529 avec queue 22,4mm et carré d'entraînement 18,0mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers à usinage facile, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5241.1/4NO3
GradeLumineux
Product Number5976246
Product FamilyE524

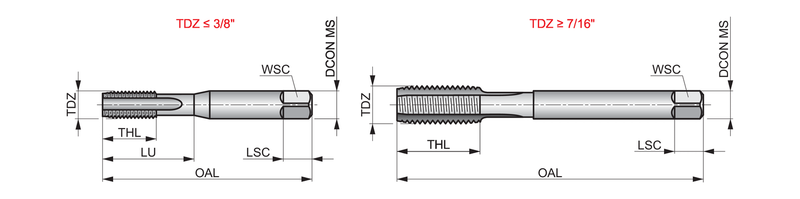

Dimensions
Overall Length — in (OAL)5.9449"
Overall Length — mm (OAL)151.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.8819"
Connection Dia. — mm (DCON)22.4 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1,1/4
Thread Diameter — in (TD)1.25"
Thread Diameter — mm (TD)31.75 mm
Thread Form (THFT)UNF - Pas fin unifié
Threads per Inch (TPI)12.0
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number97793
EAN7320760097793
File Type Download
E5241.1/4NO3 — Line Drawing PDF Download
