E5241.3/8NON2
E5241.3/8NON2
E5241.3/8NON2

E5241.3/8NON2

UGC DOR5976262
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$406.47 CAD - $406.47 CAD
$406.47 CAD
$406.47 CAD - $406.47 CAD
$406.47 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO2 avec entrée 4-6xP, pour filetage Unified National Fine UNF 1.3/8" avec 12 filets par pouce et classe de tolérance 2B, dimensions selon la norme ISO 529 avec queue de 25.0mm et carré d'entraînement de 20.0mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage, les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)E5241.3/8NONO
Product Name (ISO)E5241.3/8NE2
GradeLumineux
Product Number5976262
Product FamilyE524

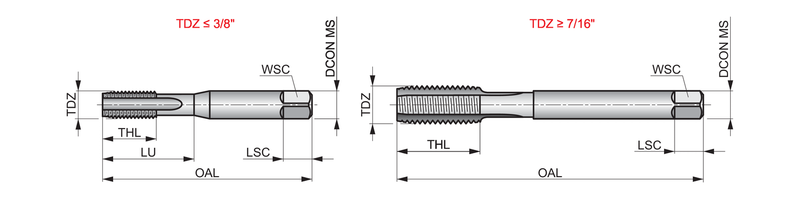

Dimensions
Overall Length — in (OAL)6.378"
Overall Length — mm (OAL)162.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1.3/8
Thread Diameter — in (TD)1.375"
Thread Diameter — mm (TD)34.925 mm
Thread Form (THFT)UNF - Pas fin uniforme
Threads per Inch (TPI)12.0
Tool Information
ShankQueue cylindrique à entraînement carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number152911
EAN7320760152911
File Type Download
E5241.3/8NON2 — Line Drawing PDF Download
