E5241/2NO3
E5241/2NO3
E5241/2NO3

E5241/2NO3

UGC DOR5976294
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.17 CAD - $39.17 CAD
$39.17 CAD
$39.17 CAD - $39.17 CAD
$39.17 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets), pour filetage UNF 1/2" à 20 filets par pouce et tolérance 2B, dimensions conformes à la norme ISO 529 avec queue de 9,0 mm et carré d'entraînement de 7,1 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes de profondeur 1.5xD dans les aciers de décolletage et au carbone non alliés, ainsi que dans le cuivre et ses alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5241/2NO3
GradeLumineux
Product Number5976294
Product FamilyE524

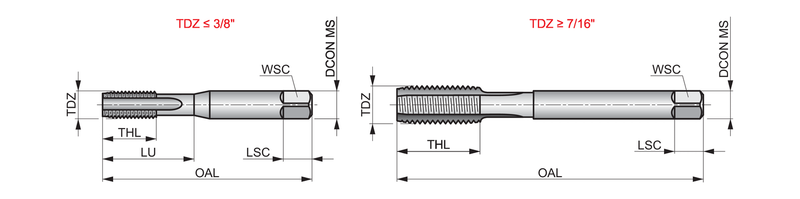

Dimensions
Overall Length — in (OAL)3.5039"
Overall Length — mm (OAL)89.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — in (TD)0.5"
Thread Diameter — mm (TD)12.7 mm
Thread Form (THFT)UNF - Unified Fine
Threads per Inch (TPI)20.0
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number97908
EAN7320760097908
File Type Download
E5241/2NO3 — Line Drawing PDF Download
