E5241NO1
E5241NO1
E5241NO1

E5241NO1

UGC DOR5976321
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$152.23 CAD - $152.23 CAD
$152.23 CAD
$152.23 CAD - $152.23 CAD
$152.23 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO1 avec entrée conique 6-8xP, pour filetage UNF 1" à 12 filets par pouce (TPI) et classe de tolérance 2B, dimensions conformes à la norme ISO 529 avec queue de 18,0 mm et carré d'entraînement de 14,0 mm, en HSS avec finition brillante pour le taraudage de trous traversants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5241NO1
GradeLumineux
Product Number5976321
Product FamilyE524

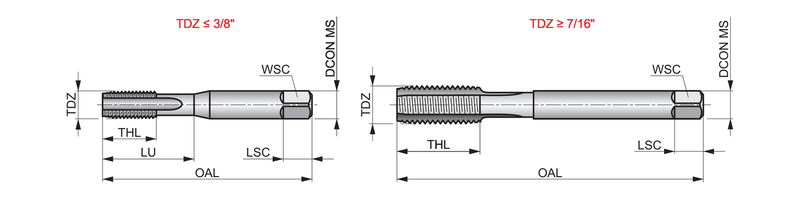

Dimensions
Overall Length — in (OAL)5.1181"
Overall Length — mm (OAL)130.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1"
Thread Diameter — in (TD)1.0"
Thread Diameter — mm (TD)25.4 mm
Thread Form (THFT)UNF - Pas fin uni
Threads per Inch (TPI)12.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number153314
EAN7320760153314
File Type Download
E5241NO1 — Line Drawing PDF Download
