E52410-32NO1
E52410-32NO1
E52410-32NO1

E52410-32NO1

UGC DOR5976342
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.73 CAD - $22.73 CAD
$22.73 CAD
$22.73 CAD - $22.73 CAD
$22.73 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO1 avec entrée conique 6-8xP, pour filetage Unified National Fine UNF 10 avec 32 filets par pouce et classe de tolérance 2B, dimensions selon la norme ISO 529 avec queue de 5,0mm et carré d'entraînement de 4,0mm, HSS brillant pour le taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E52410-32NO1
GradeLumineux
Product Number5976342
Product FamilyE524

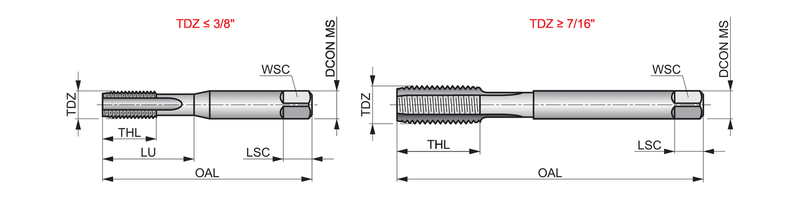

Dimensions
Overall Length — in (OAL)2.2835"
Overall Length — mm (OAL)58.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.7874"
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Diameter — in (TD)0.19"
Thread Diameter — mm (TD)4.826 mm
Thread Form (THFT)UNF - Pas fin unifié
Threads per Inch (TPI)32.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number153550
EAN7320760153550
File Type Download
E52410-32NO1 — Line Drawing PDF Download
