E52410-32NO6
E52410-32NO6
E52410-32NO6
E52410-32NO6

E52410-32NO6

UGC DOR5976359
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.19 CAD - $68.19 CAD
$68.19 CAD
$68.19 CAD - $68.19 CAD
$68.19 CAD

Vendu en lots de : 1

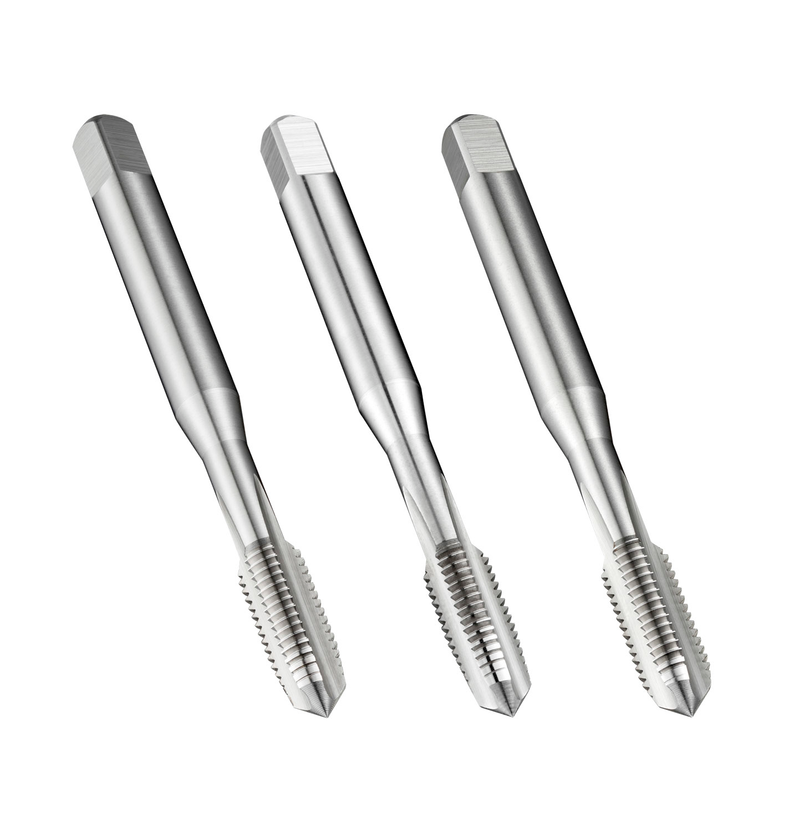

Jeu de tarauds à main à coupe droite NO6 pour filetages Unified National Fine UNF 10 avec 32 filets par pouce et classe de tolérance 2B, comprenant 1 taraud d'entrée 6-8xP, 1 taraud intermédiaire 4-6xP et 1 taraud de finition 2-3xP, dimensions conformes à la norme ISO 529 avec queue de 5,0 mm et carré d'entraînement de 4,0 mm, en HSS finition brillante pour le filetage de trous débouchants ou borgnes de 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E52410-32NO6
GradeLumineux
Product Number5976359
Product FamilyE524

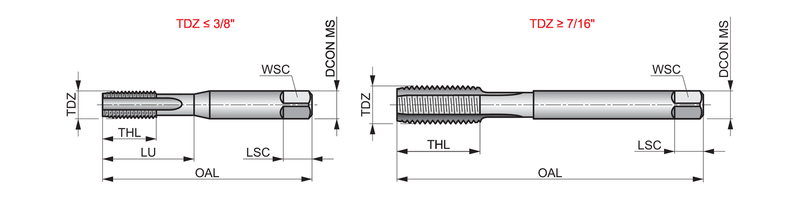

Dimensions
Overall Length — in (OAL)2.2835"
Overall Length — mm (OAL)58.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.7874"
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Diameter — in (TD)0.19"
Thread Diameter — mm (TD)4.826 mm
Thread Form (THFT)UNF - Pas fin unifié
Threads per Inch (TPI)32.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number153543
EAN7320760153543
File Type Download
E52410-32NO6 — Line Drawing PDF Download
