E52412-28NO3
E52412-28NO3
E52412-28NO3

E52412-28NO3

UGC DOR5976370
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.97 CAD - $29.97 CAD
$29.97 CAD
$29.97 CAD - $29.97 CAD
$29.97 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets), pour filet UNF 12 au pas de 28 filets au pouce et de classe de tolérance 2B, dimensions conformes à la norme ISO 529 avec queue de 5,6mm et carré d'entraînement de 4,5mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E52412-28NO3
GradeLumineux
Product Number5976370
Product FamilyE524

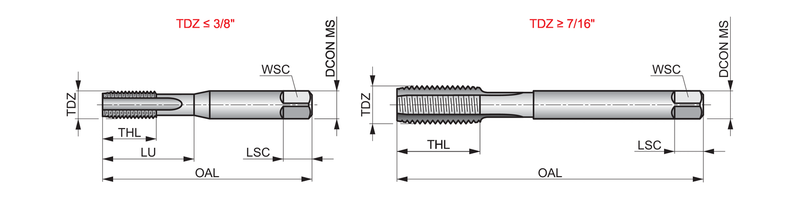

Dimensions
Overall Length — in (OAL)2.4409"
Overall Length — mm (OAL)62.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.8268"
Usable Length — mm (LU)21.0 mm
Connection Dia. — in (DCON)0.2205"
Connection Dia. — mm (DCON)5.6 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)12
Thread Diameter — in (TD)0.216"
Thread Diameter — mm (TD)5.486 mm
Thread Form (THFT)FNU - Fine unifié
Threads per Inch (TPI)28.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number97915
EAN7320760097915
File Type Download
E52412-28NO3 — Line Drawing PDF Download
